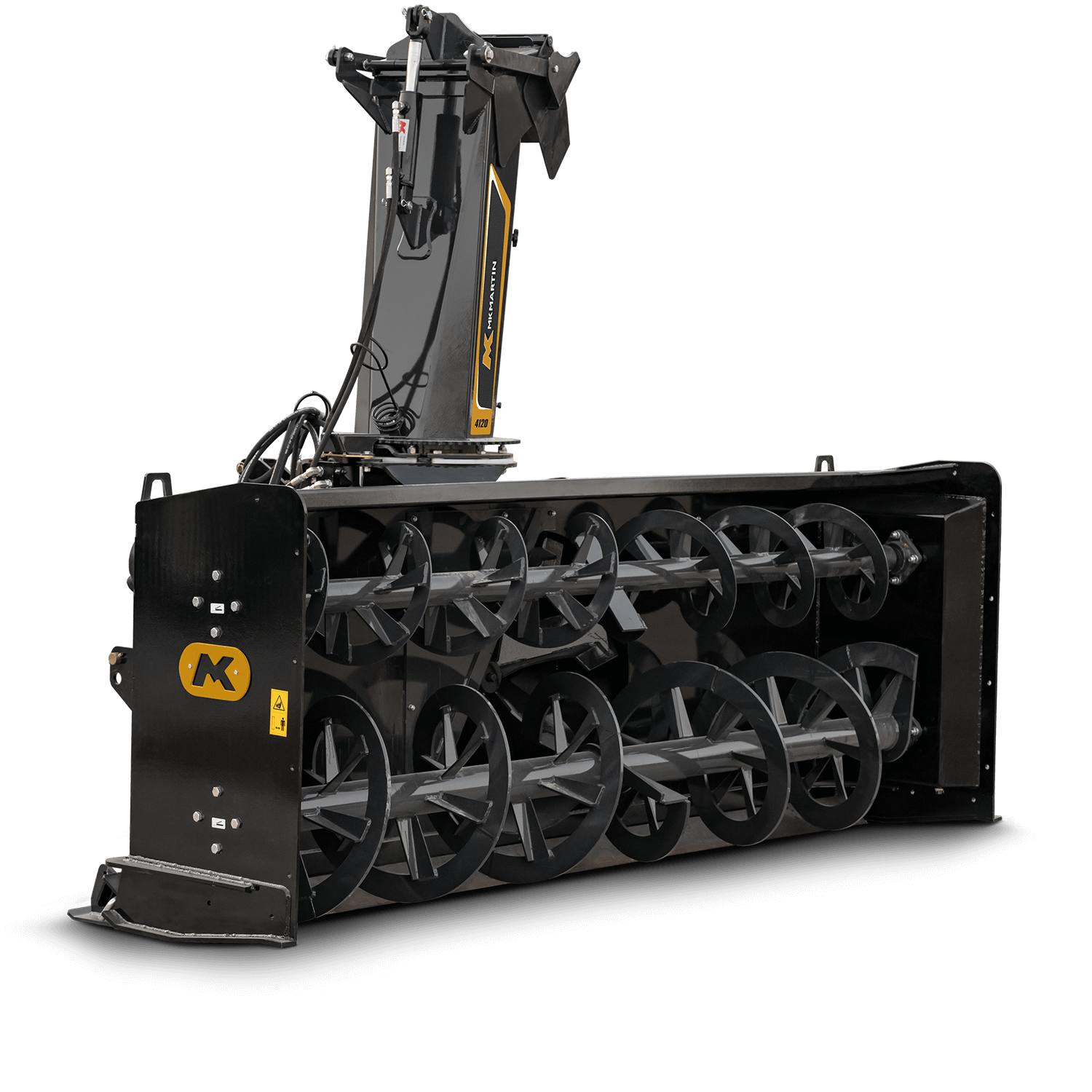

4120RH

4000 Series Commercial Snowblowers

Product Specifications

Includes Rotating Housing
120" Cutting Width
150–250 HP
CAT. 2 & 3 Mount
47" Main Body Height
36" – 3/8" HD 450 Impeller
12" Impeller Depth
6 Impeller Blades
2-1/2" Impeller Output Shaft
1,000 RPM PTO Drive
2 Stages
Ribbon Flighting Rotor (Flight Notching Available)
4-1/2" OD Heavy Wall Rotor Tube
1/2" x 3" (Bottom) and 5/16" x 2-1/4" (Top) Rotor Flighting
23" (Bottom) and 15" (Top) Rotor Diameter
1-3/4" Rotor Drive Shaft
#100 Roller Chain
1/2" x 6" Heat Treated Bolt-On Cutting Edge
3/8" HD 450 x 48" High End Plates
13" Chute Diameter
Hyd. Chute Rotator
2 Deflector Stages
Hyd. Chute Deflector
3,460 lbs.

Features

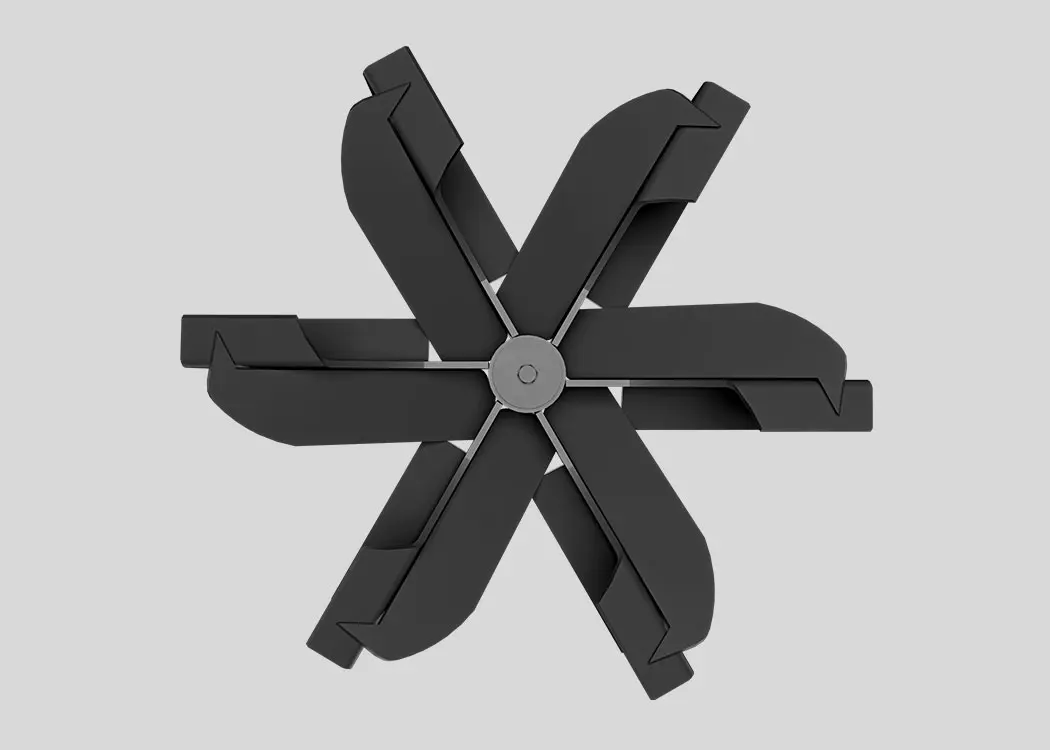

6 Blade Fan

The 6 blade, 36” diameter impeller fan is made with HD450 steel to aggressively process snow with a smooth, consistent stream.

Heat Treated Cutting Edge

Bolt-on replaceable heat-treated steel cutting edge cuts through ice while blowing.

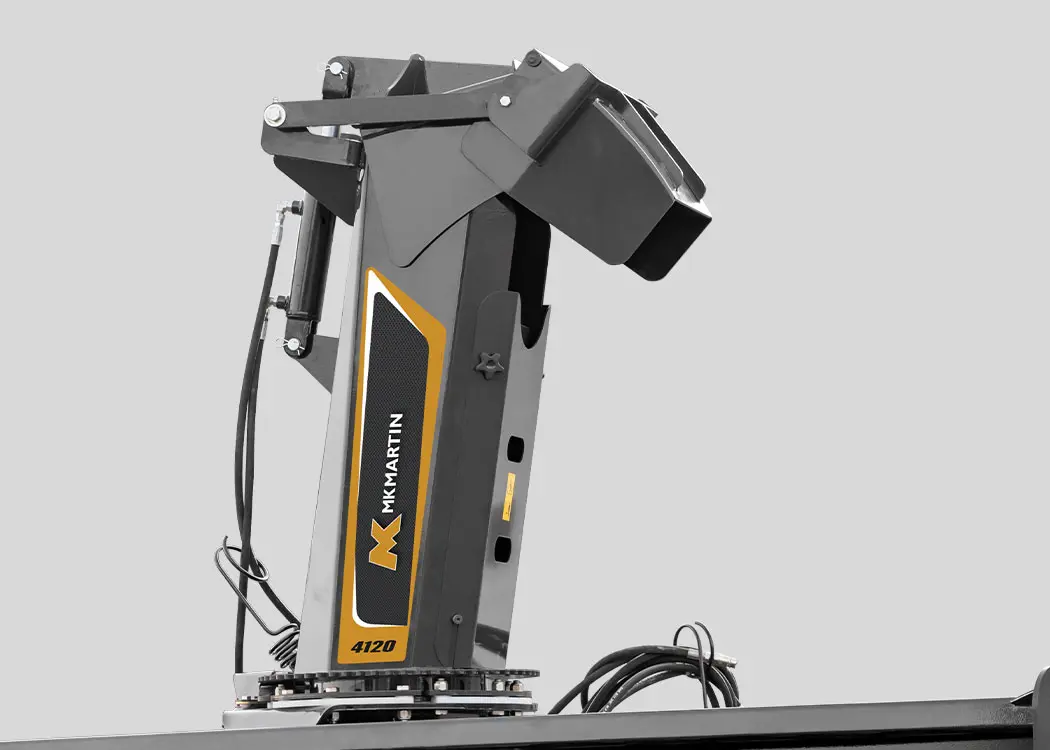

Hydraulic Chute & Multi-Hinge Deflector

Place snow with precision using the standard hydraulic rotating chute and multi-hinge deflector.

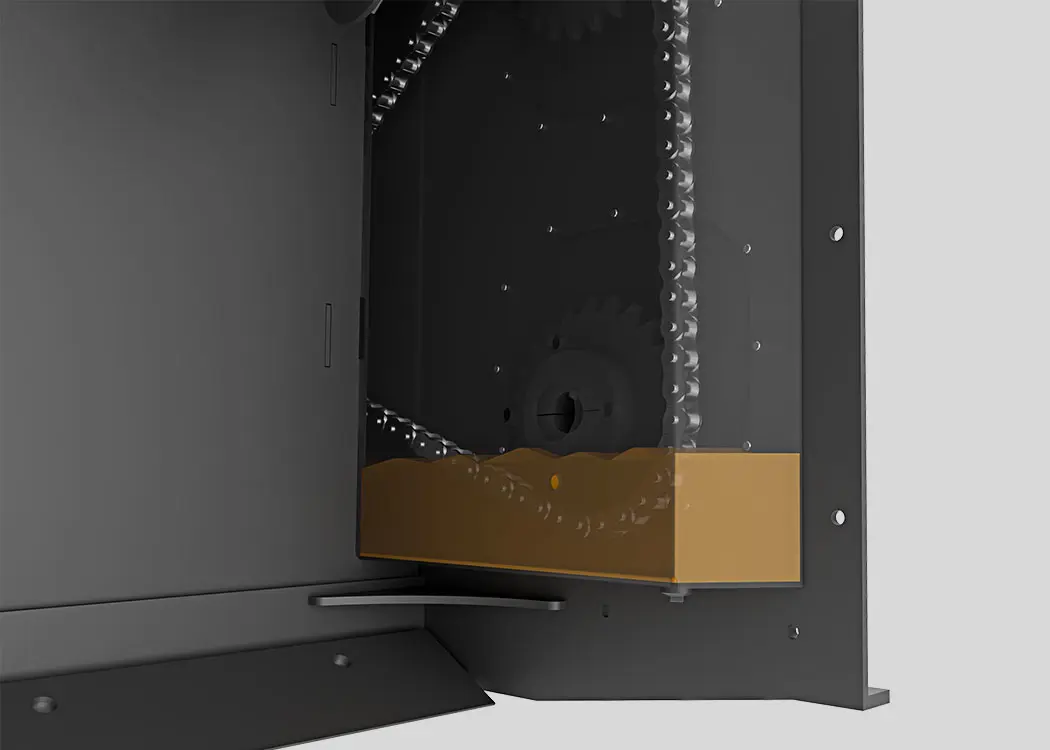

Oil Chain Bath

To maintain performance and to extend chain life, the chain is fully enclosed in an oil bath system.

Rotating Fan Housing/Side Discharge

RH models include a rotating fan housing that bypasses the exit chute allowing the unit to clear a higher volume of snow directly out either side of the blower.

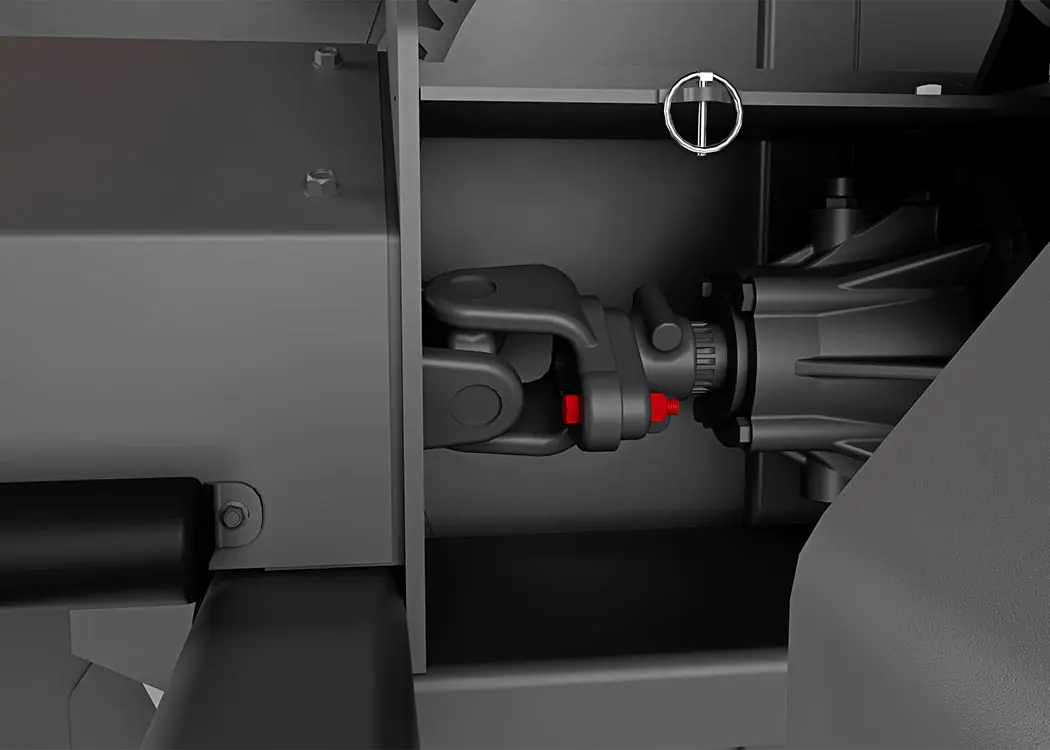

Shear Bolt Protection

If the auger hits a hard object, shear bolts reduce the risk of damaging the gearbox or the shaft.

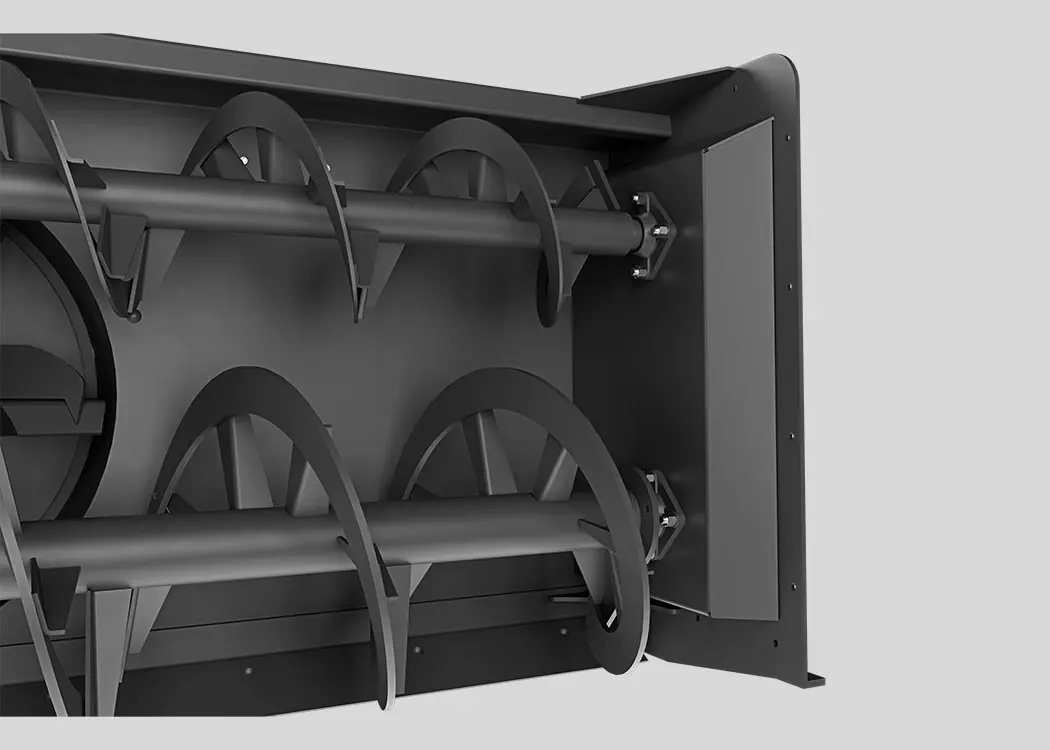

Twin Auger Chain Drive

Dual auger design aggressively breaks up hardpack into powdery snow for easy throwing.

Options

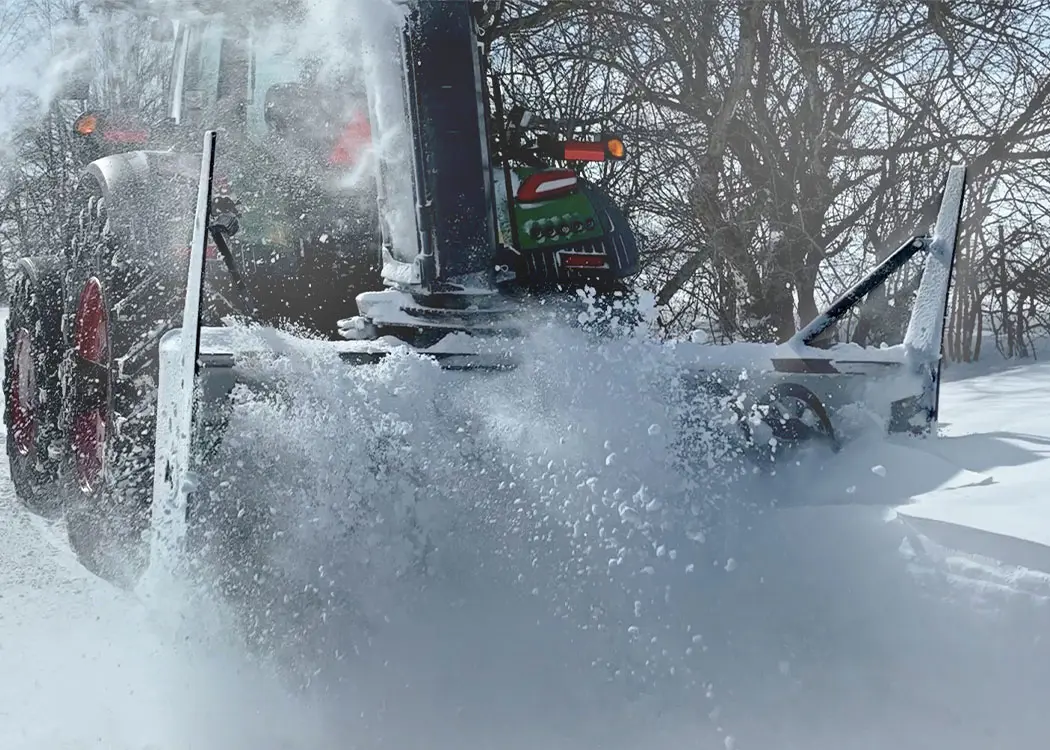

Bank Cutters

The side of the housing is equipped with optional steel bank cutters that trim back high snowbanks, leaving a clean path.

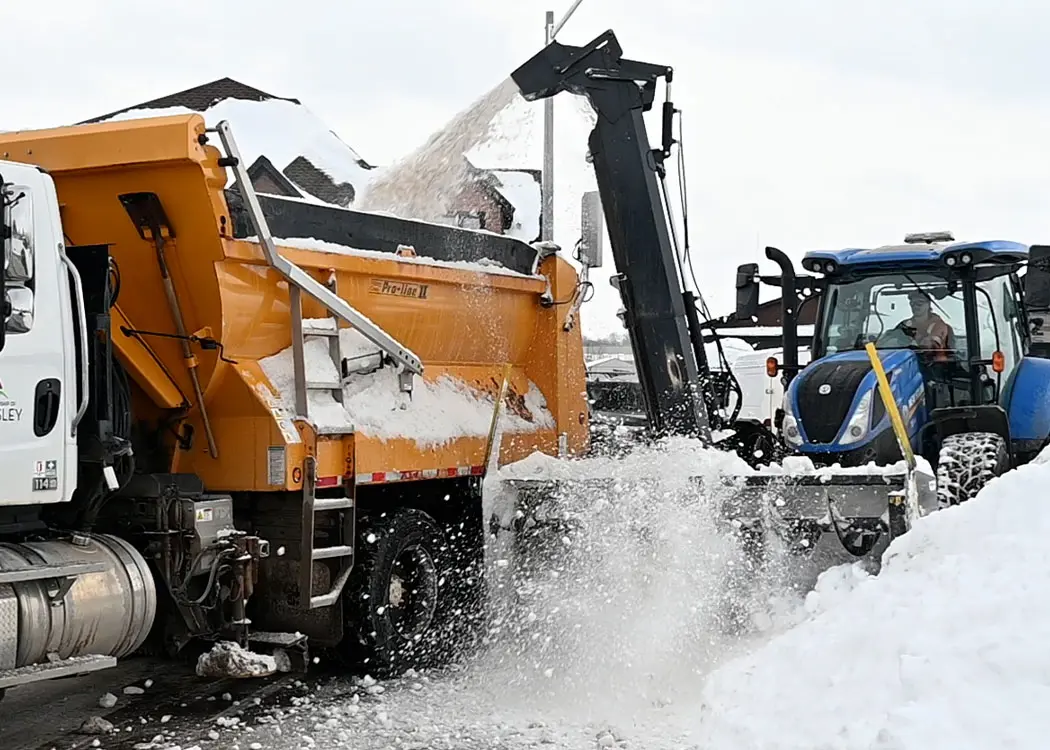

Truck Loading Chute

This extendable exit chute provides an additional 40 inches of height when blowing snow into trucks or trailers.
