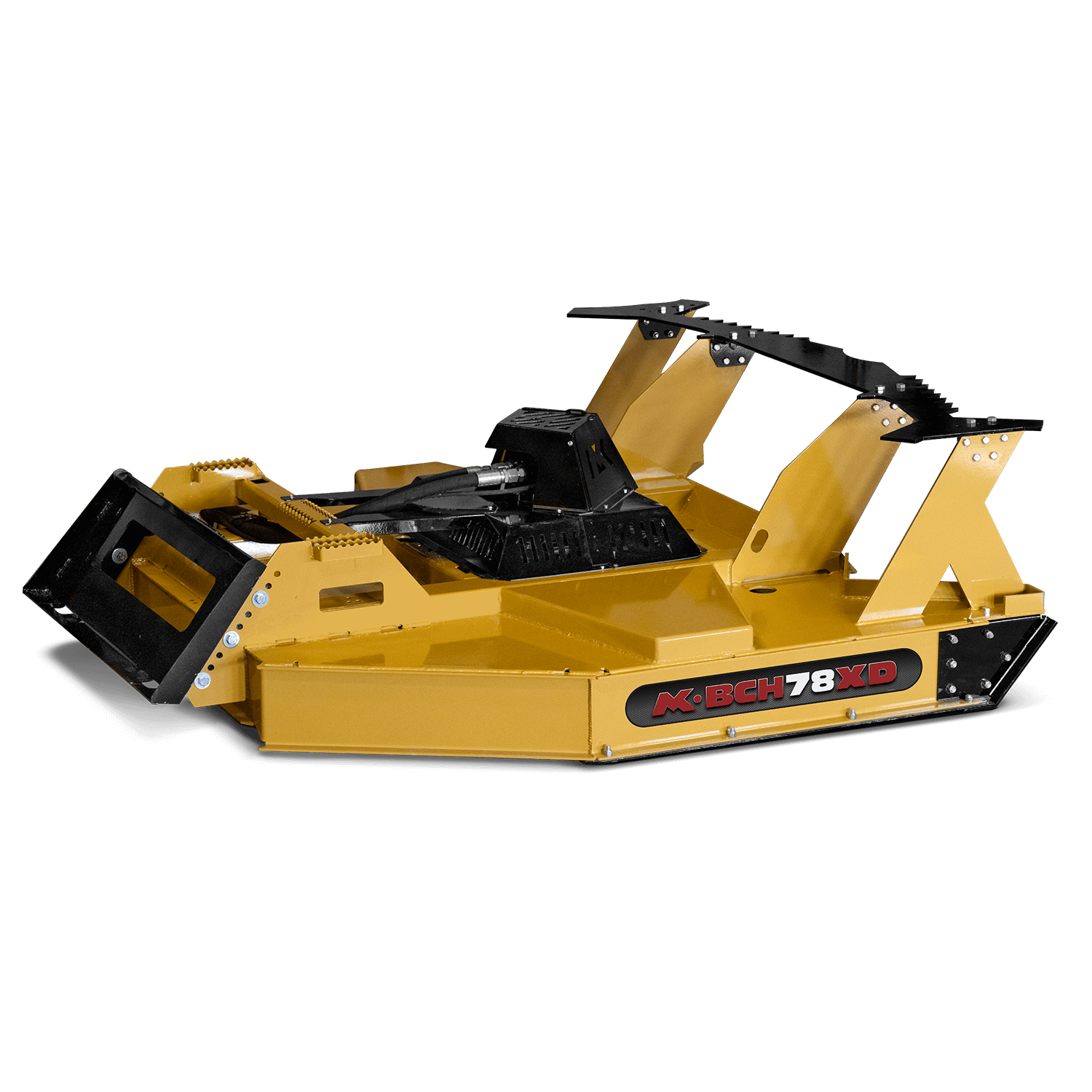

BCH78XD

Extreme Duty Brush Cutters

Product Specifications

78" Cutting Path
86.5" Machine Width
10" Max Brush Diameter
Radial Piston Motor (4 pkgs up to 40 GPM)
20+ GPM Recommended Flow
Higher Torque Capability at Low Speeds
Up to 4,000 PSI Operating Pressure
(4) Blades
1" Heavy Duty Cutting Bar
20,000 ft/min Tip Speed
1/4" Deck Thickness
2,200 lbs.

Features

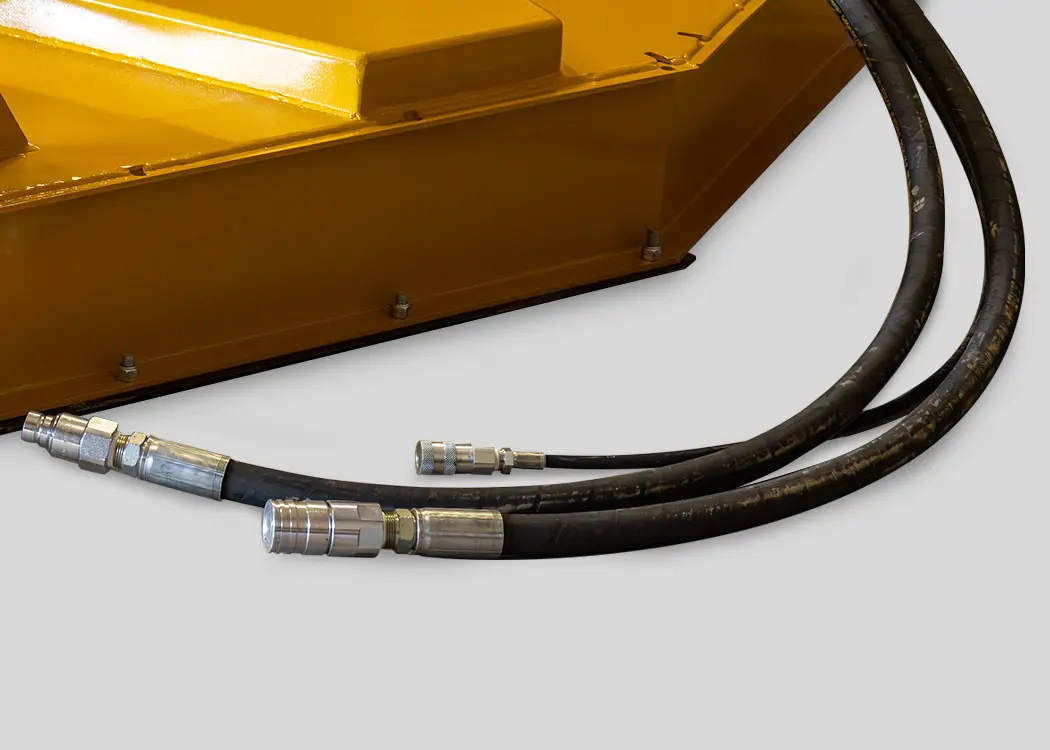

3 Hoses Required

The MK Martin Extreme Duty Brush Cutter requires 3 hydraulic hose connections including a case drain connection.

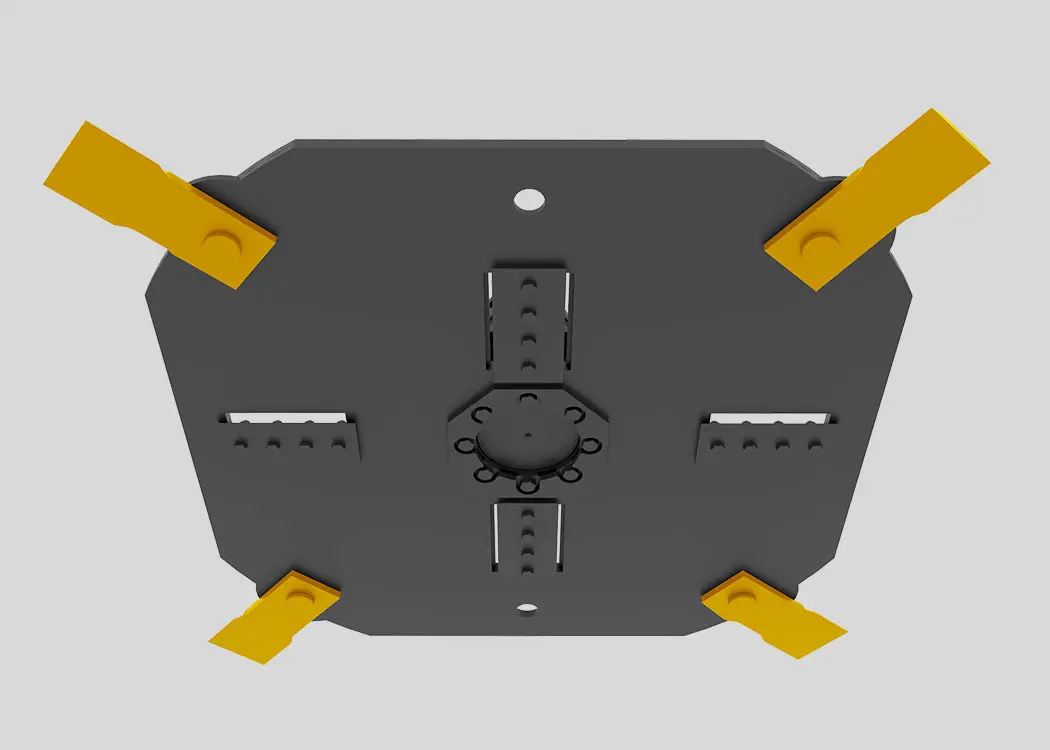

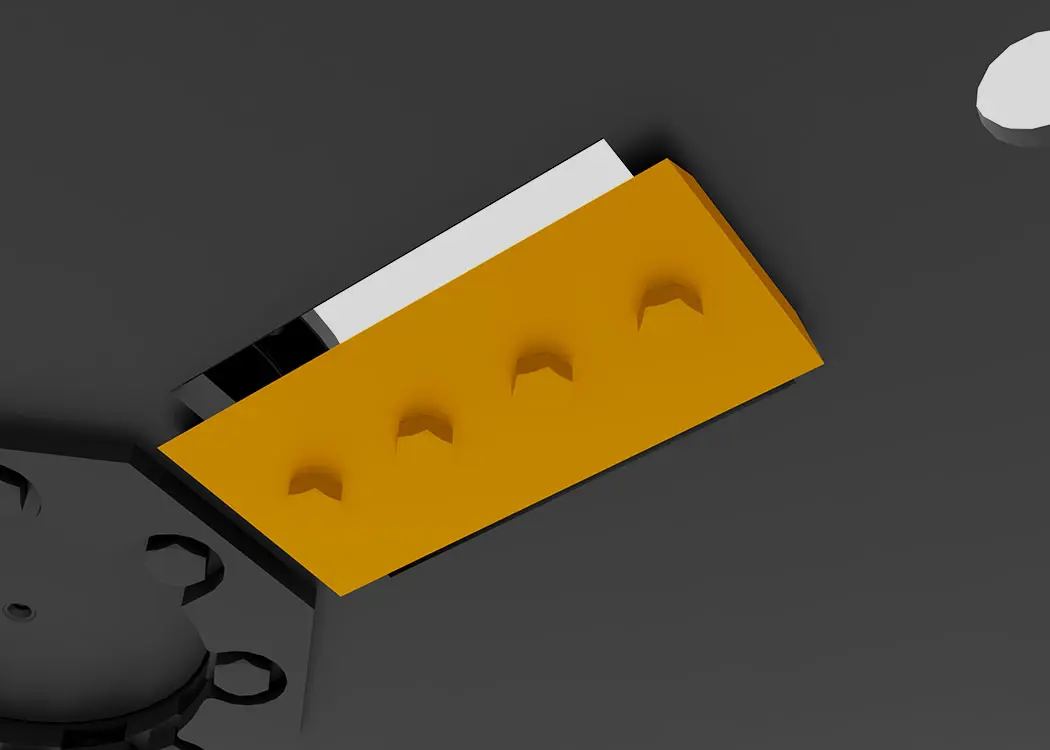

4 Replaceable Flail Knives

Mounted on the rotor are 4 replaceable pivoting flail knives designed to deliver maximum centrifugal velocity and shear force on every rotation.

7 Year Warranty

All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

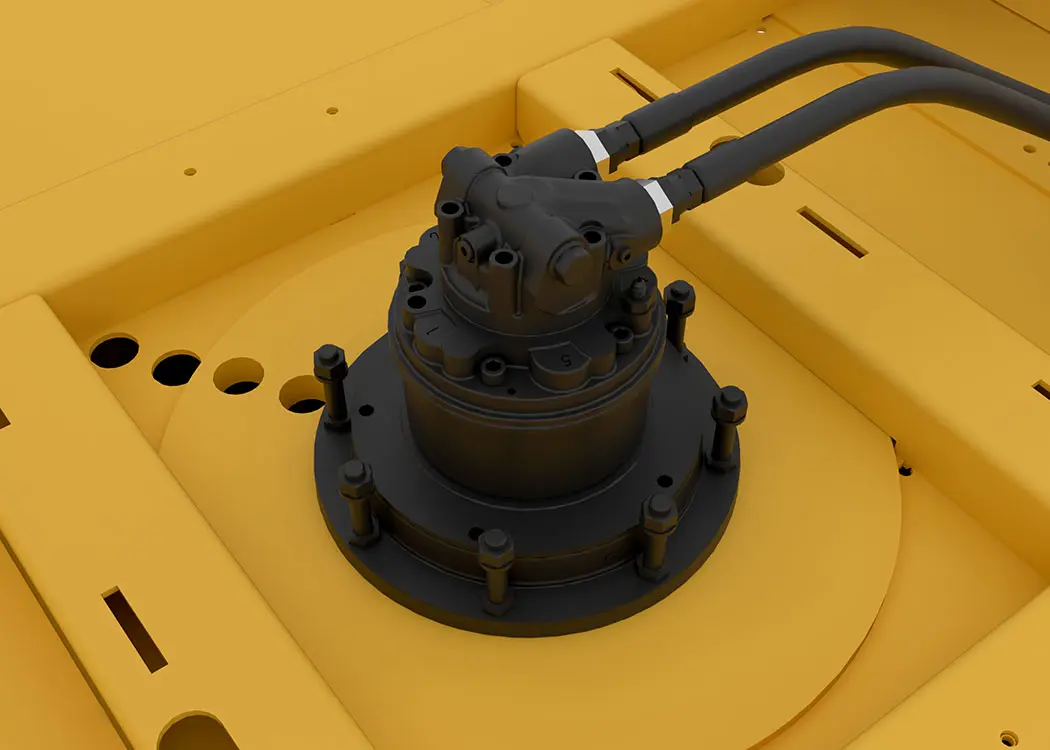

Direct Mounted Motor

The hydraulic radial piston direct mounted motor and heavy duty bearing assembly deliver tip speeds of up to 20,000 ft. per minute and produce powerful torque at lower speeds for continuous cutting and faster recovery.

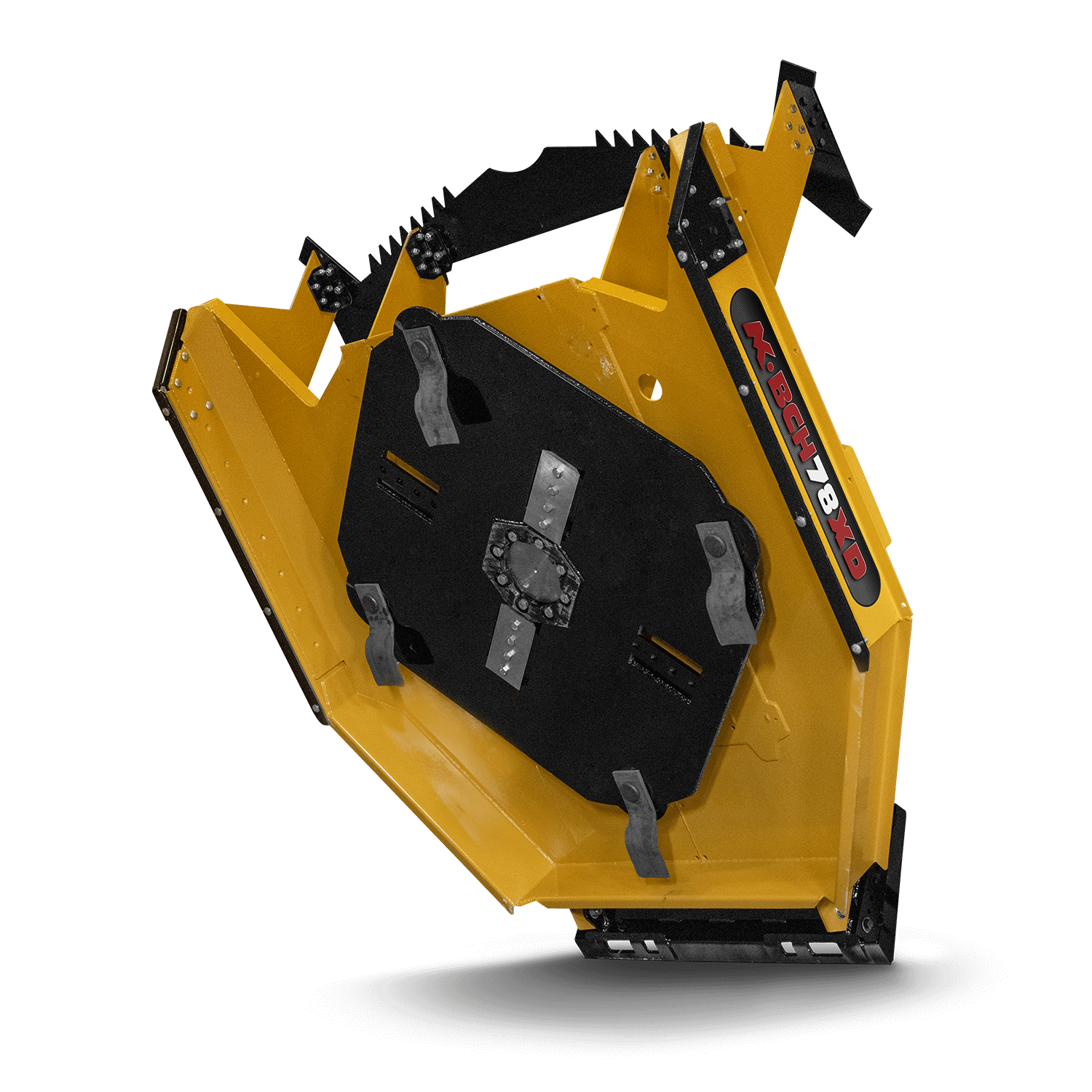

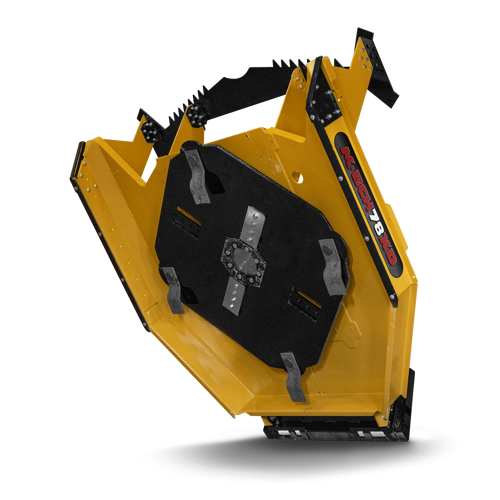

Heavy Duty 1" Thick Rotor

78" diameter oversized rotor is manufactured using a 1" thick steel plate.

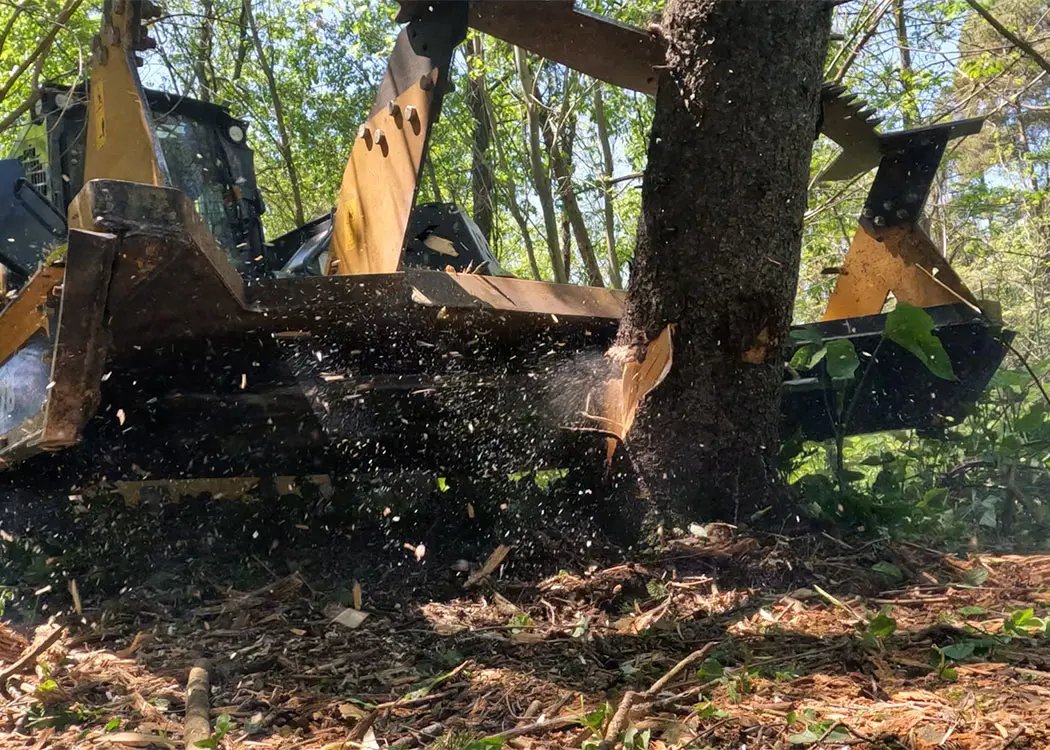

Heavy Duty 10" Cut Capacity

Easily power through dense brush, woody vegetation with an even 10 inch diameter trees across fields, forests and trails.

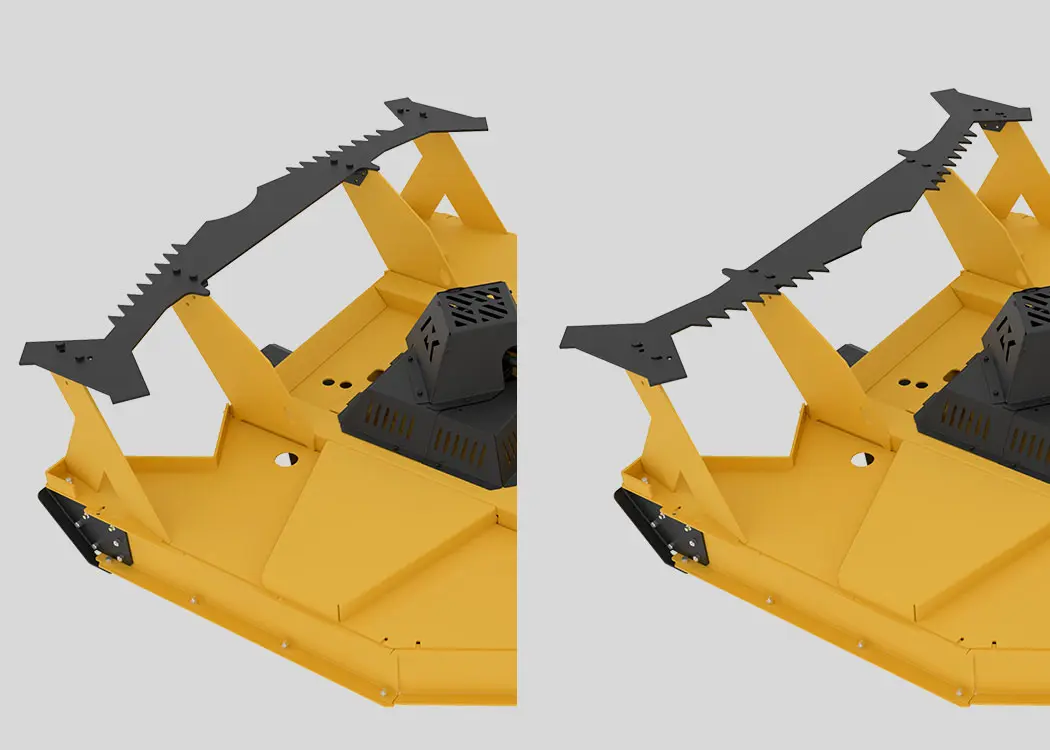

Reversible Front Push Bar

One side (A) has aggressive teeth for accurate pushing and directional control of larger trees. The reverse side (B) is smooth, intended for flattening dense underbrush.
