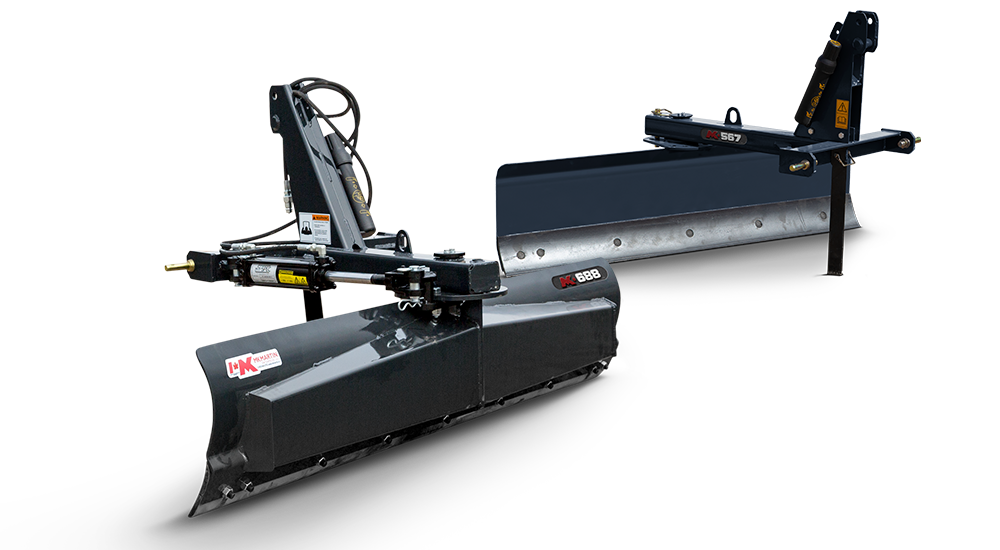

Grader Blade Main Image
Grader Blade

The 3PH Grader Blade from MK Martin makes maintaining your driveway and gravel areas easy. Ruggedly built with a reversible cutting edge, these blades are designed for years of service.

The Manual Blades have five stops of angle adjustment including a full turn around. While the Hydraulic Angle blades allow you to control the blade from the comfort of your seat. With widths to match your equipment and property there is a MK Grader blade to help keep your grades up.

Model Max. HP Width Mouldboard Mouldboard Height Center Pin 3PH Mount Weight (LBS.)
MKGB588 45 5' 3/16" 15" 2" CAT. 1 180
MKGB688 45 6' 1/4" 15" 2" CAT. 1 200
MKGB788 45 7' 1/4" 15" 2" CAT. 1 215
MKGB798 75 7' 3/8" 15" 3" CAT. 2 577
MKGB898 75 8' 3/8" 15" 3" CAT. 2 616

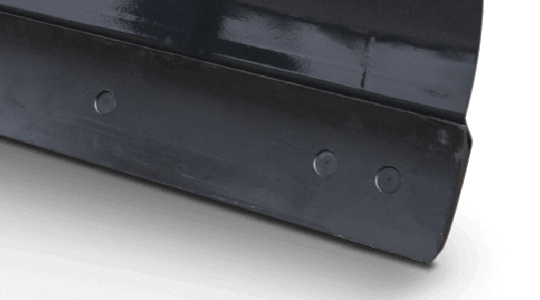

Reversible Cutting Edge Feature Image

1/2" x 6" Reversible Cutting Edge

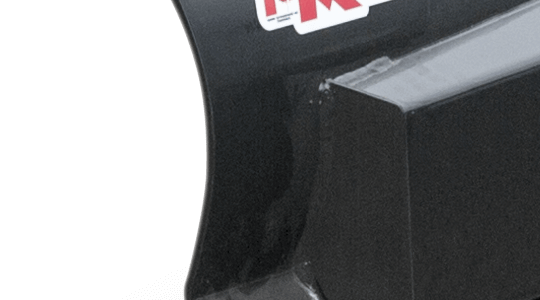

Mouldboard Feature Image

1/4" Mouldboard

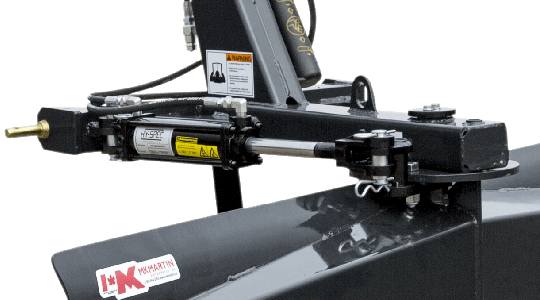

Hydraulic Angle Kit Feature Image

Optional Hydraulic Angle Kit

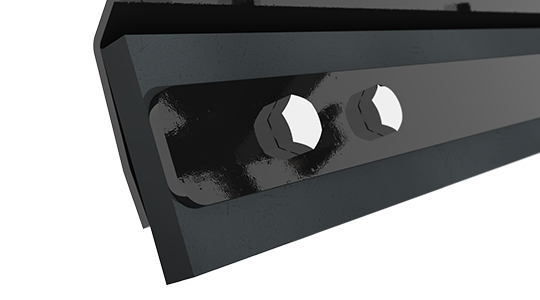

Optional Rubber Cutting Edge Feature Image

Optional Rubber Cutting Edge

These optional rubber cutting edges are ideal for snow removal, reducing damage to driveways.
