4108
4000 Series Commercial Snowblowers
Product Specifications
- 108" Cutting Width
- 150–250 HP
- CAT. 2 & 3 Mount
- 47" Main Body Height
- 36" – 3/8" HD 450 Impeller
- 12" Impeller Depth
- 6 Impeller Blades
- 2-1/2" Impeller Output Shaft
- 1,000 RPM PTO Drive
- 2 Stages
- Ribbon Flighting Rotor (Flight Notching Available)
- 4-1/2" OD Heavy Wall Rotor Tube
- 1/2" x 3" (Bottom) and 5/16" x 2-1/4" (Top) Rotor Flighting
- 23" (Bottom) and 15" (Top) Rotor Diameter
- 1-3/4" Rotor Drive Shaft
- #100 Roller Chain
- 1/2" x 6" Heat Treated Bolt-On Cutting Edge
- 3/8" HD 450 x 48" High End Plates
- 13" Chute Diameter
- Hyd. Chute Rotator
- 2 Deflector Stages
- Hyd. Chute Deflector
- 2,130 lbs.
Features

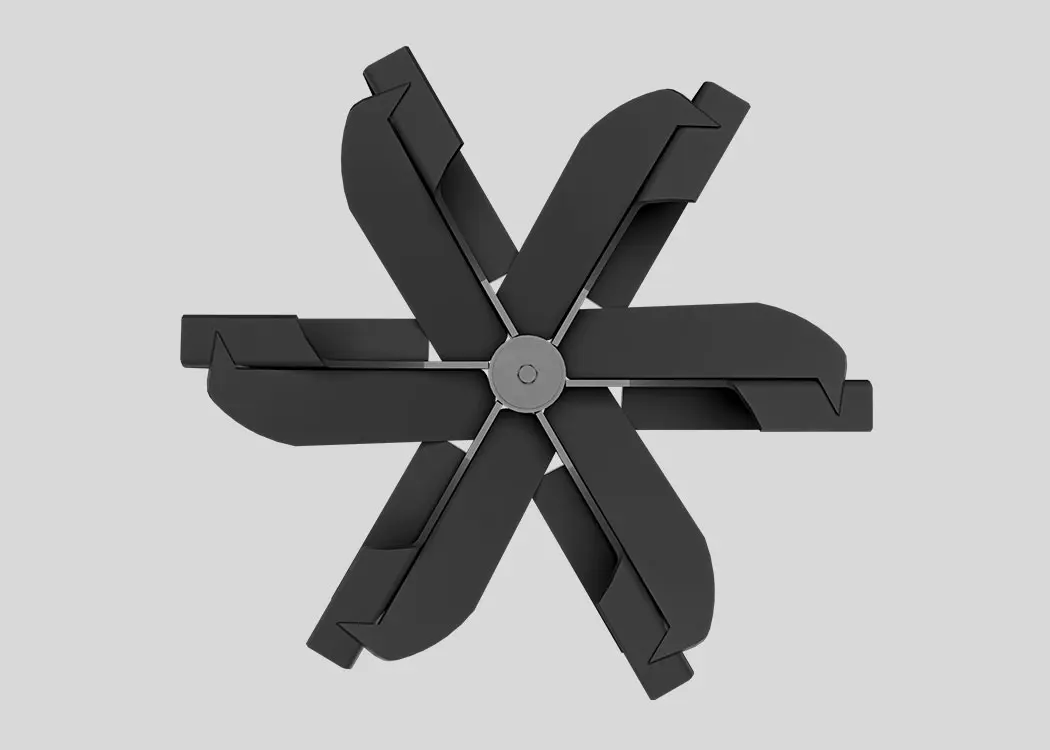

6 Blade Fan
The 6 blade, 36” diameter impeller fan is made with HD450 steel to aggressively process snow with a smooth, consistent stream.
Heat Treated Cutting Edge
Bolt-on replaceable heat-treated steel cutting edge cuts through ice while blowing.

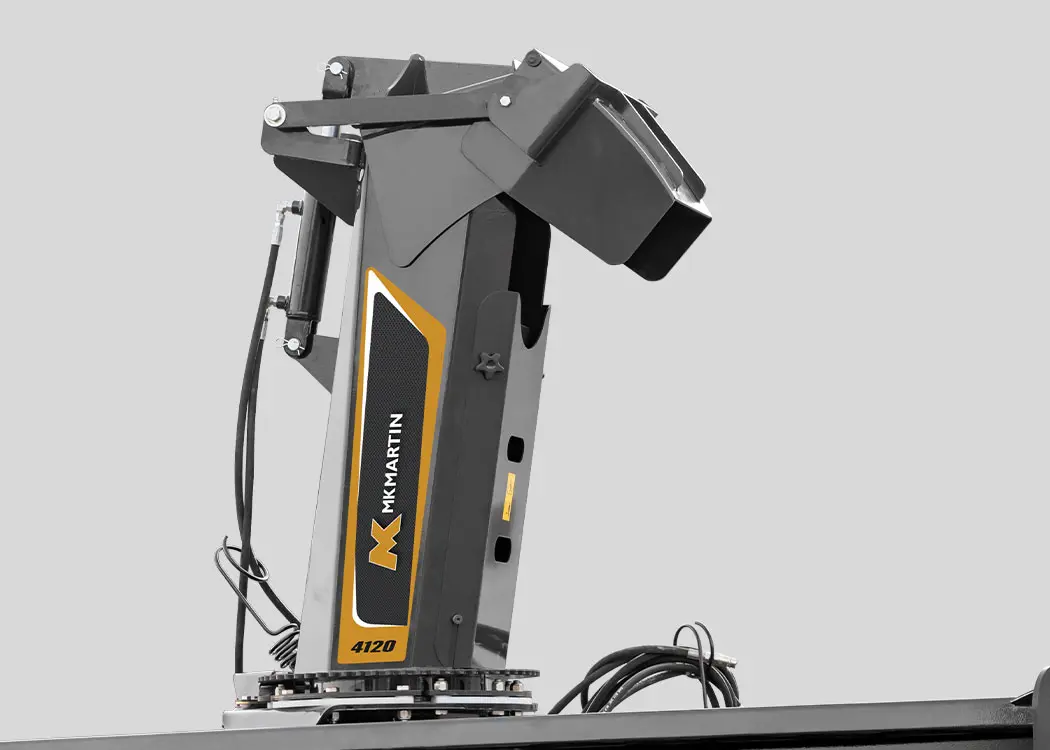

Hydraulic Chute & Multi-Hinge Deflector
Place snow with precision using the standard hydraulic rotating chute and multi-hinge deflector.

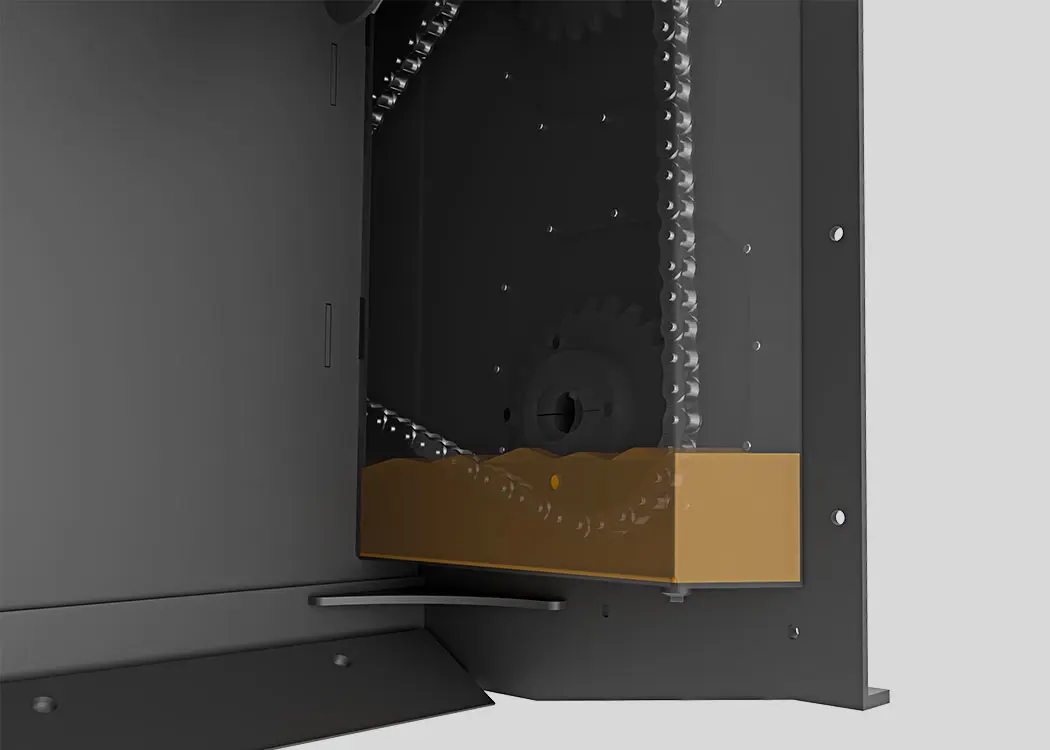

Oil Chain Bath
To maintain performance and to extend chain life, the chain is fully enclosed in an oil bath system.

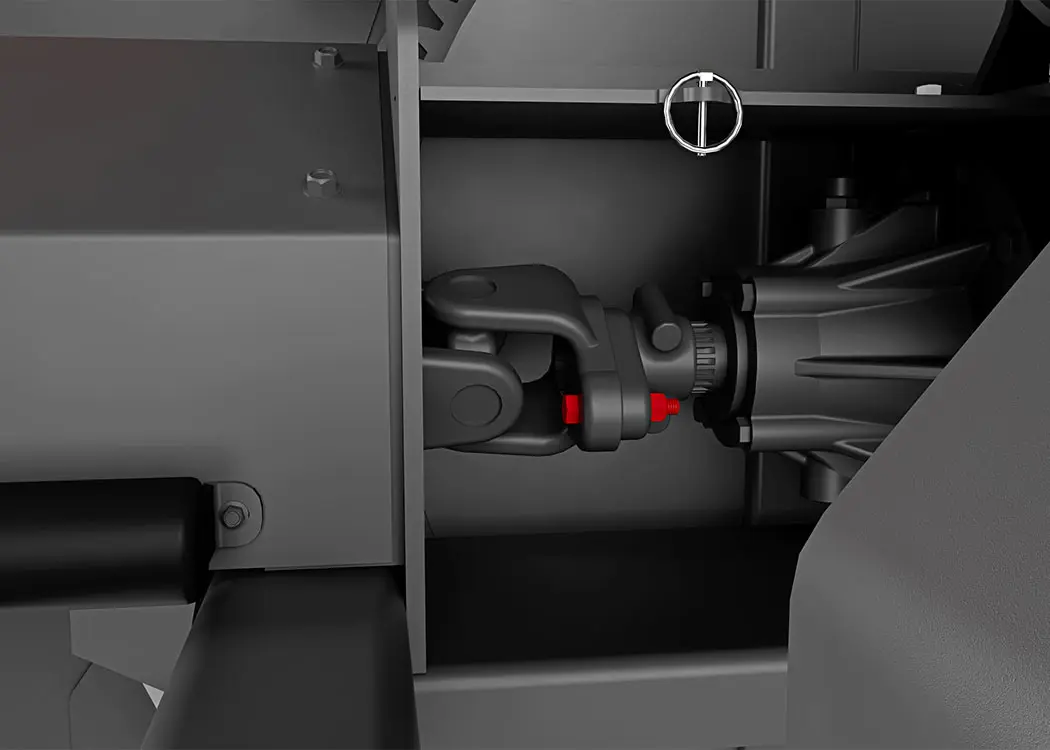

Shear Bolt Protection
If the auger hits a hard object, shear bolts reduce the risk of damaging the gearbox or the shaft.

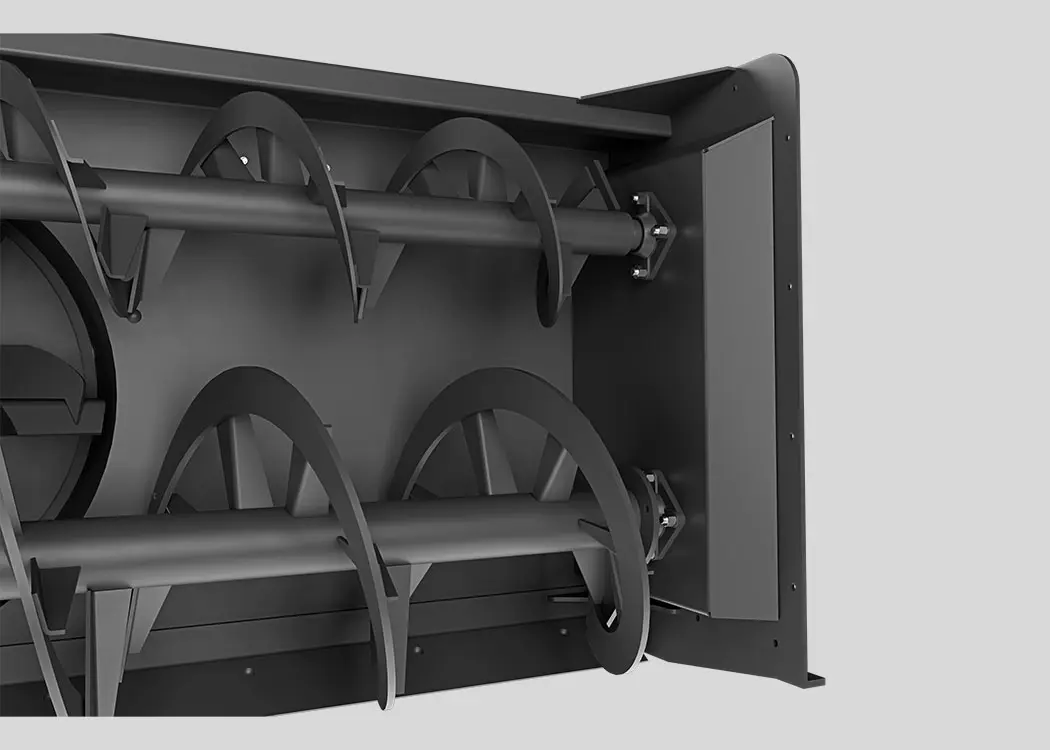

Twin Auger Chain Drive
Dual auger design aggressively breaks up hardpack into powdery snow for easy throwing.
Options

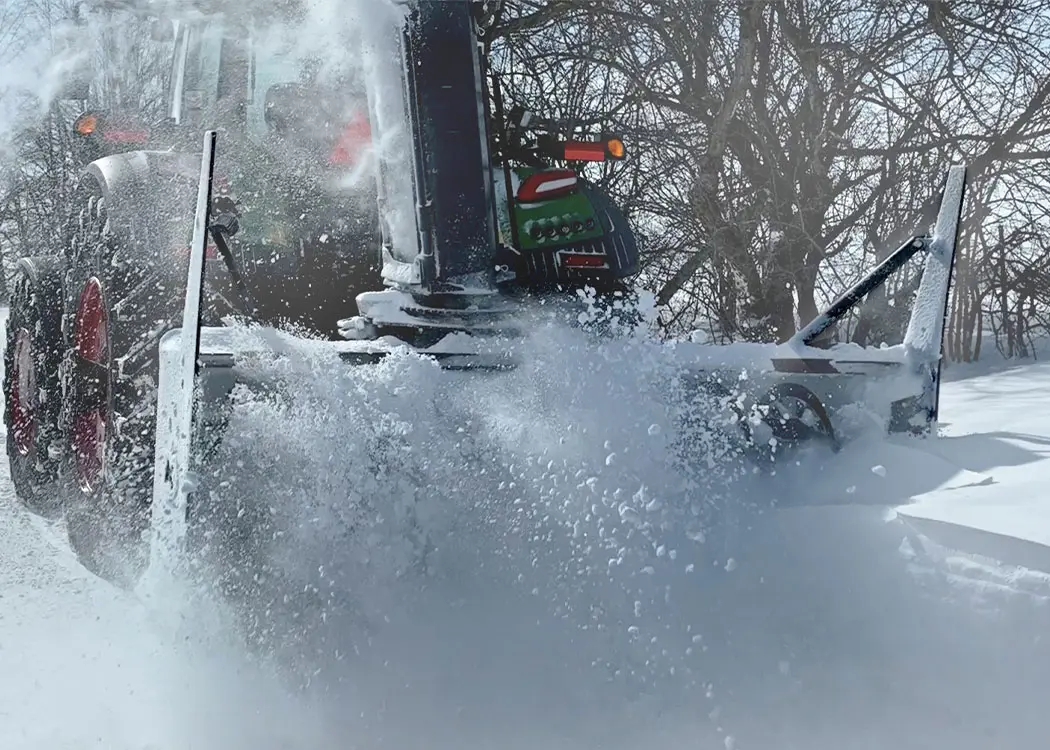

Bank Cutters
The side of the housing is equipped with optional steel bank cutters that trim back high snowbanks, leaving a clean path.

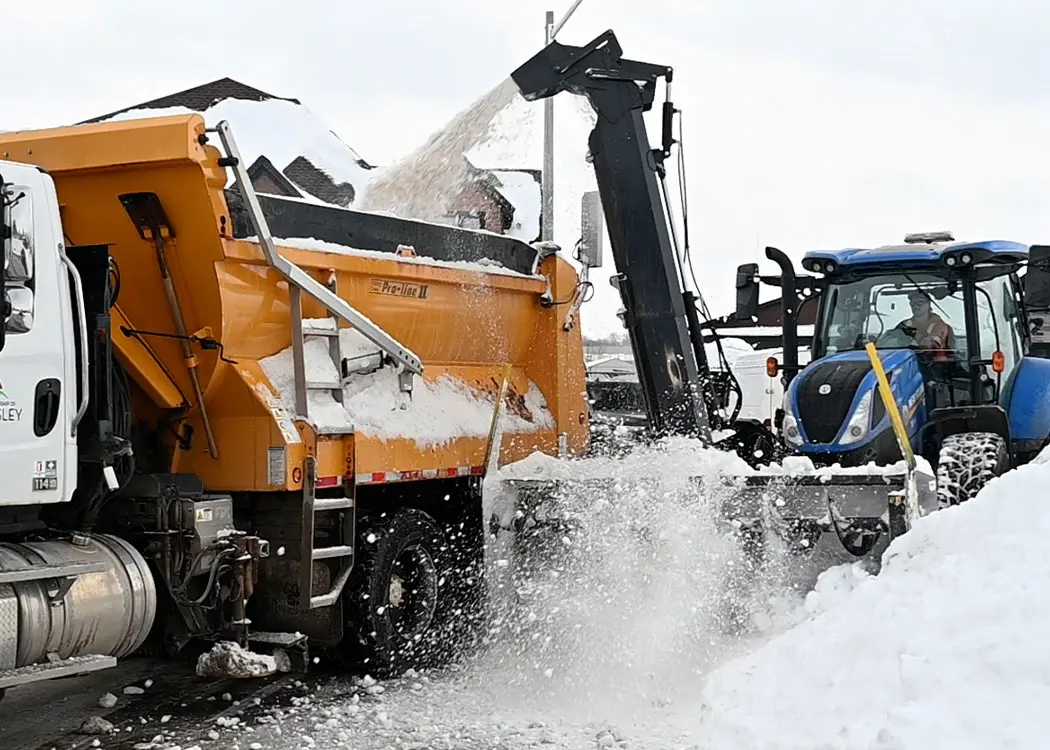

Truck Loading Chute
This extendable exit chute provides an additional 40 inches of height when blowing snow into trucks or trailers.
