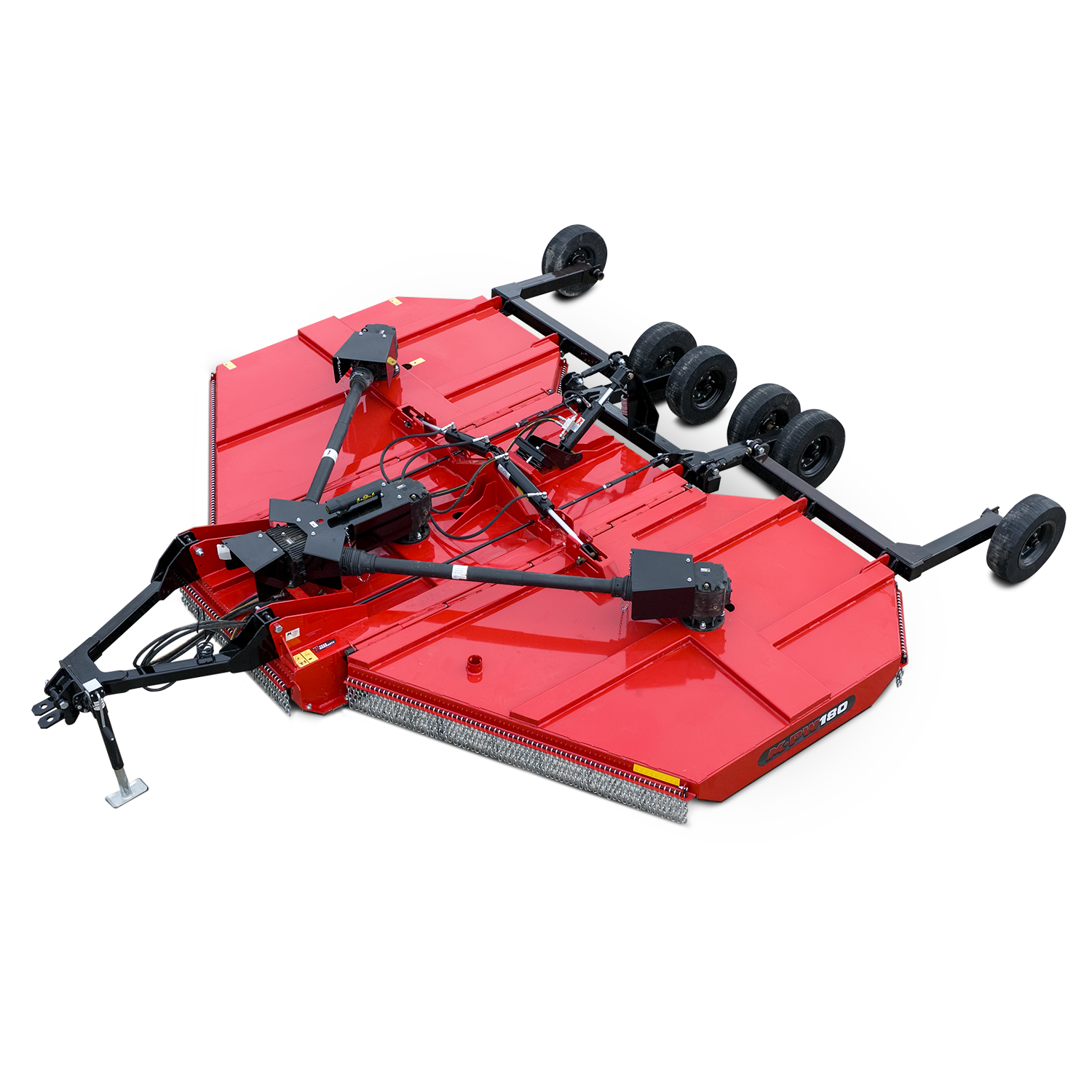

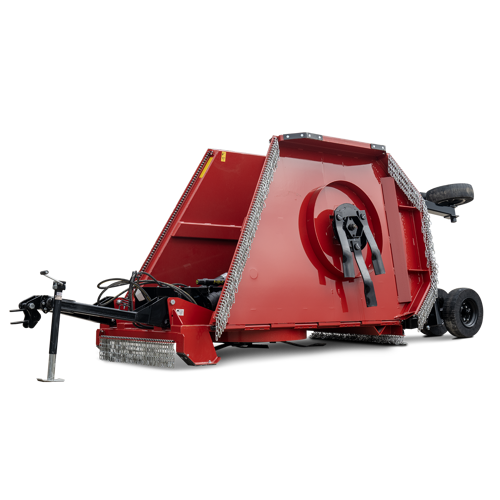

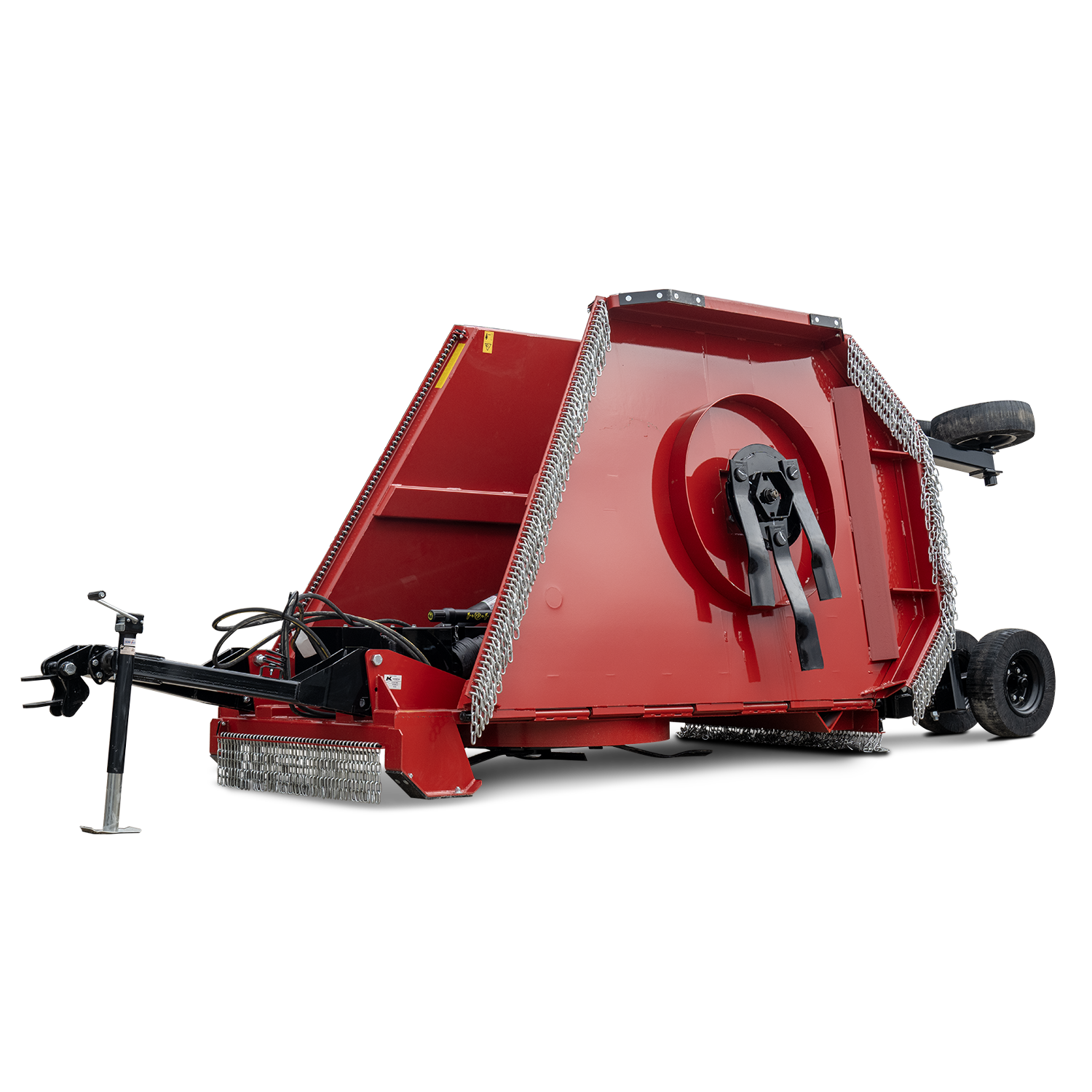

PW180

PTO Rotary Cutter - Wing

Product Specifications

180" Cutting Path
3"–15" Cutting Height
1.5" Max Brush Diameter
184" Overall Width (Wings Down)
78" Folded Width (Wings Up)
15,100 Ft/Min Tip Speed (Wings)
14,850 Ft/Min Tip Speed (Center)
(6) 21" Pneumatic Wheels
(9) 1/2" x 4" Blades
75 HP Tractor (min)
540 RPM PTO
140 HP Gearbox Rating (Wing)
105 HP Gearbox Rating (Center)
87 HP Gearbox Rating (Divider)
Drawbar Hitch
3/16" Deck
Stump Jumper
Independent Slip Clutch on Each Spindle
Wing Float Range: 20° Down / 33° Up
4,400 lbs.

Features

7 Year Warranty

All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

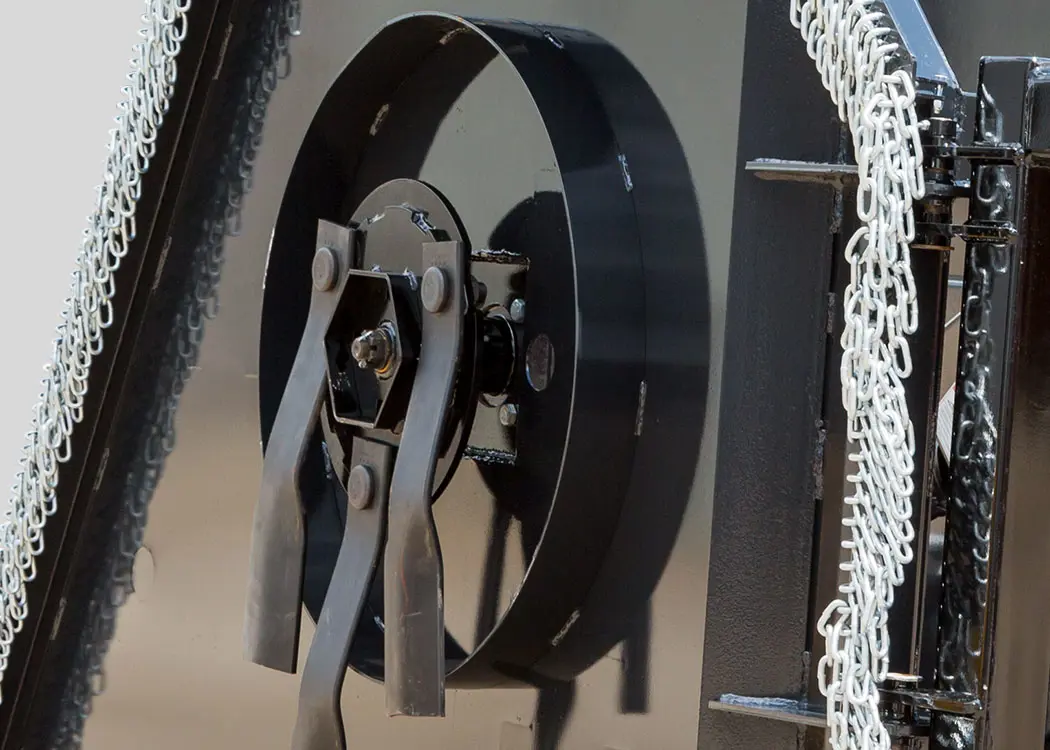

Deck Protection Ring

Welded mid-way below deck is MK’s iron ring of protection, reducing the chance of cutting knives contacting the deck in the event of impact – a valuable feature that ensures long-lasting durability.

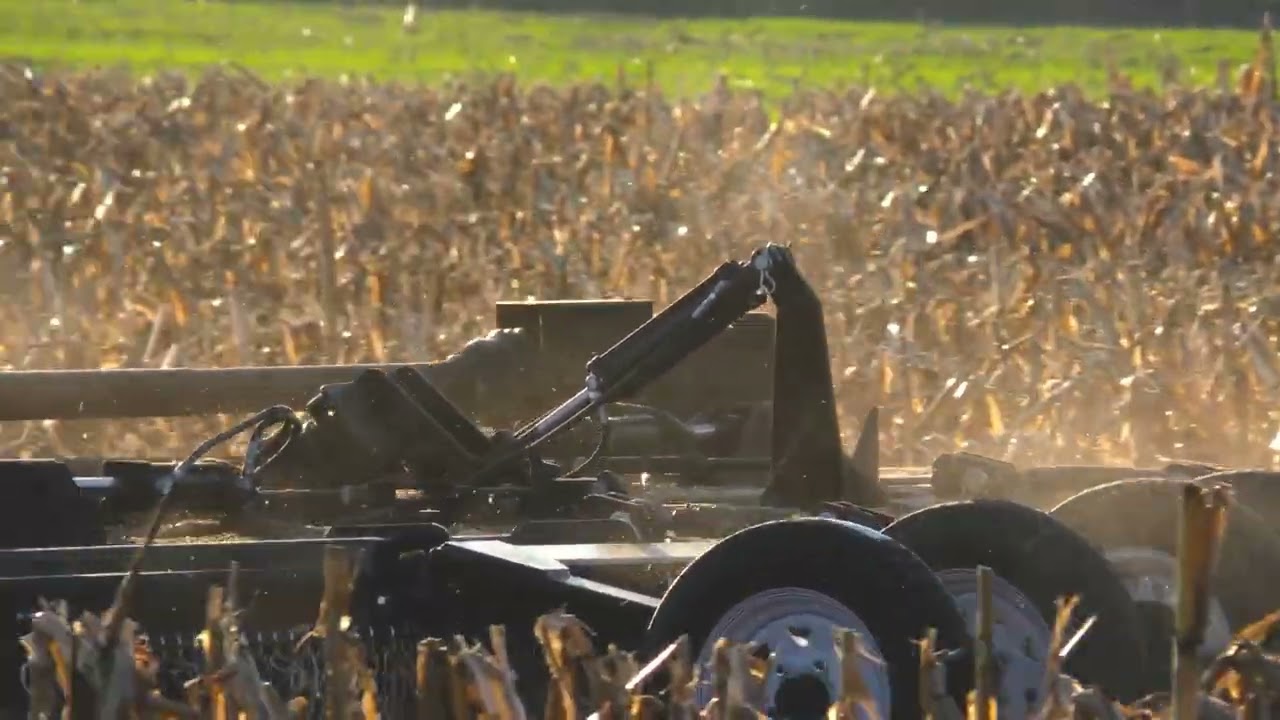

20° Contour Cutting

Each wing can float 20° to conform to ground contours.

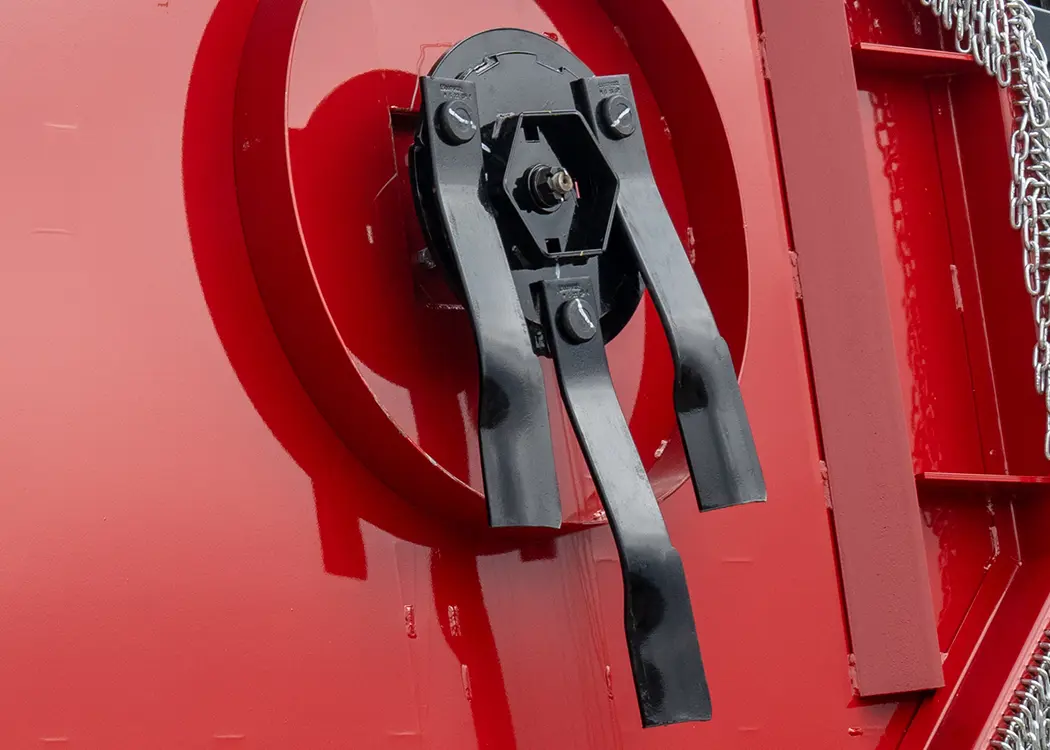

3 Blade Assembly

Underneath the deck are three sharpened and hardened steel cutting knives that ensure a complete clean cut with every pass.

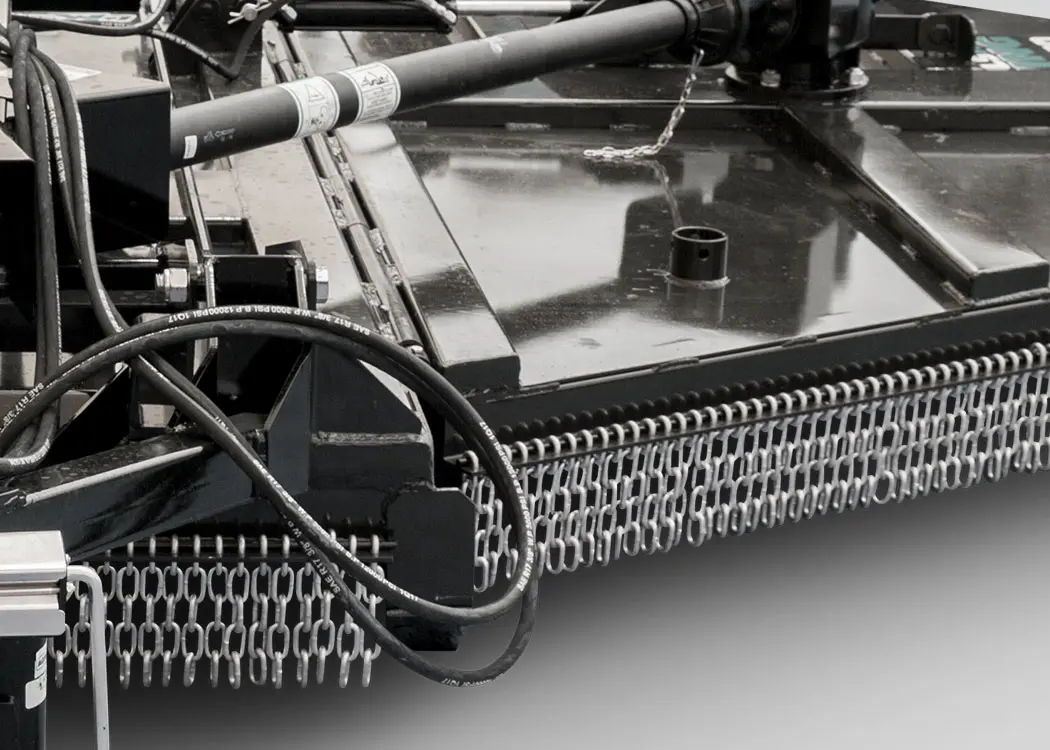

Chain Curtain

Chain curtain safely contains debris while cutting.

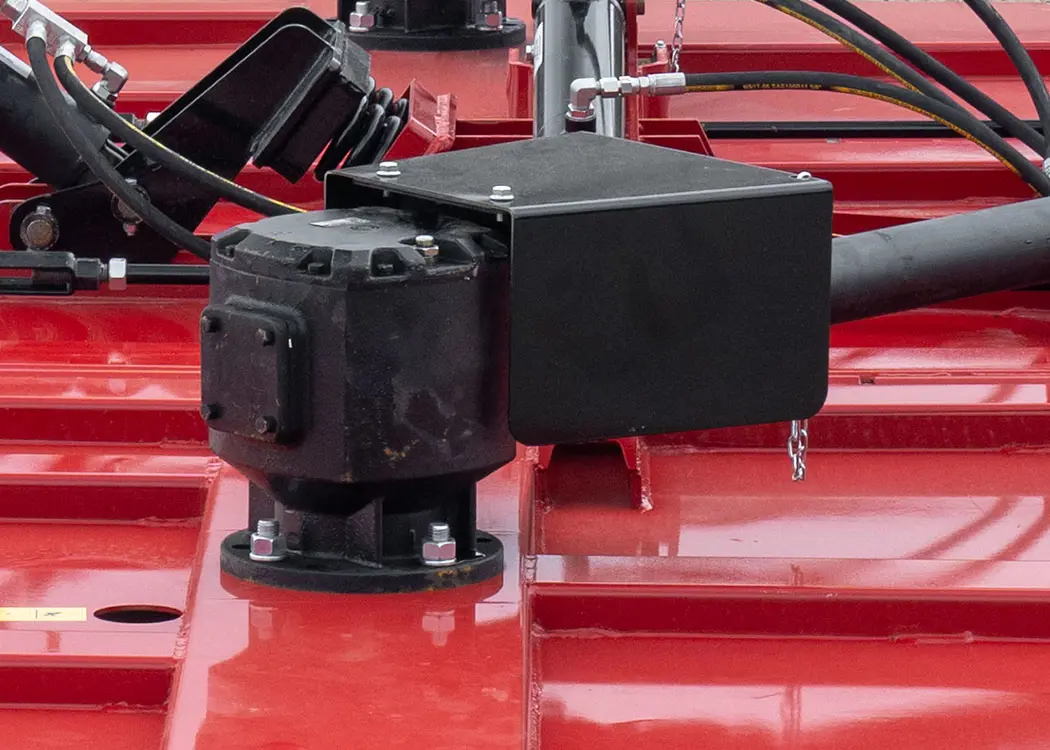

Gearbox

Operated with 4 individual heavy duty gearboxes.

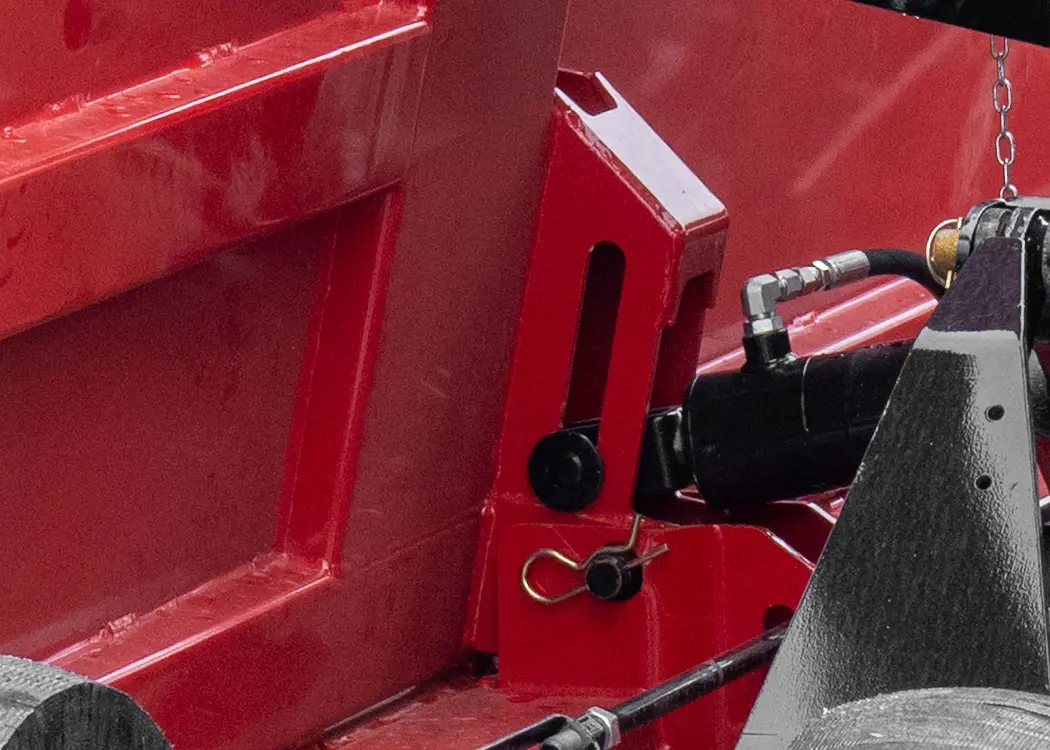

Transport Lock

Each wing has a transport locking system to secure wings during travel.

Options

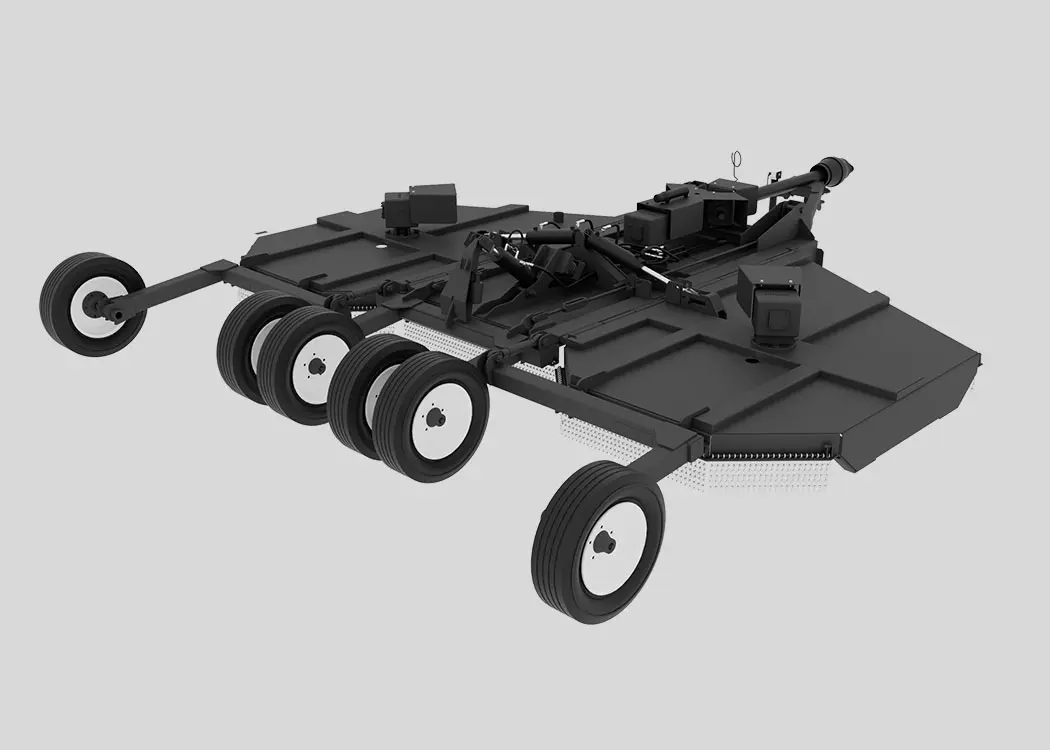

Straight Axle with 6 Solid Tires

Straight axle design with 6 solid flat-free tires.

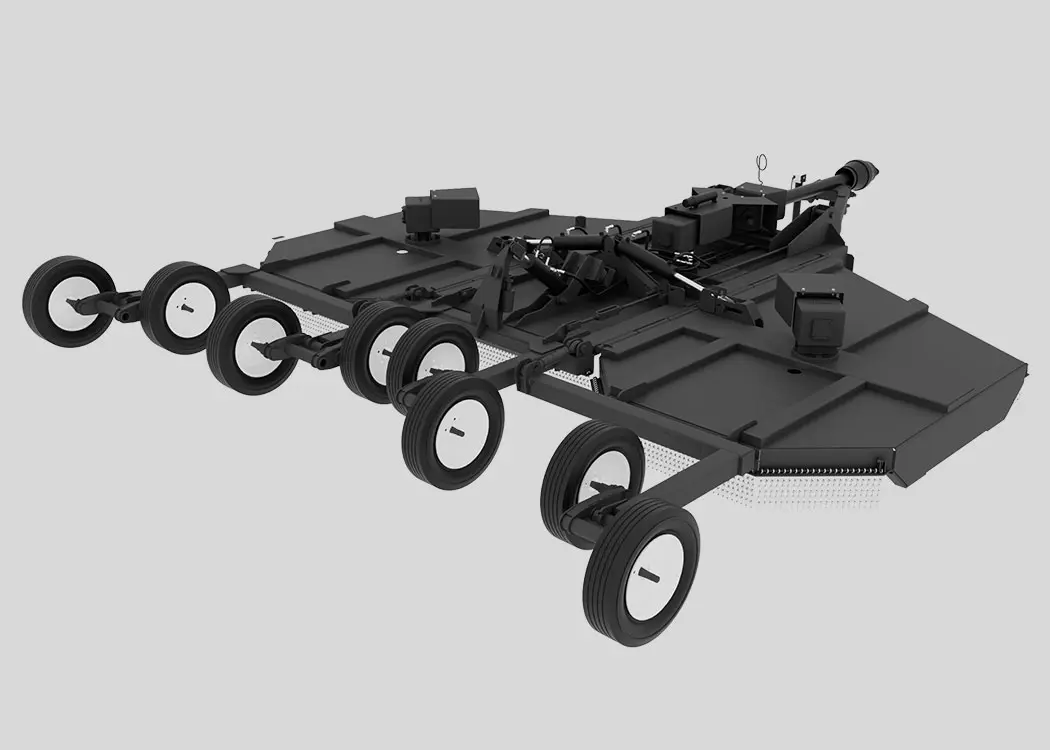

Walking Tandem Axle with 8 Pneumatic Tires

Walking tandem axle design with 8 air filled pneumatic tires. The walking axle allows the cutter to glide over the grounds contour, ensuring an even cut.

Straight Axle with 6 Pneumatic Tires

Straight axle design with 6 air filled pneumatic tires for a smooth ride.

Walking Tandem Axle with 8 Solid Tires

Walking tandem axle design with 8 solid flat-free tires. The walking axle allows the cutter to glide over the grounds contour, ensuring an even cut.
