MKCS1960H

Rotary Sweepers - Hydraulic

Product Specifications

Hydraulic Drive
8–12 GPM Motor
60" Sweeping Width
64 1/2" Overall Width
19" Brush Diameter
Belt drive – Fully Engaged Brush
3° Lateral Swivel
30° Sweeping Angle (each side)
54 1/4" Sweep Length @ 30°
Manual Angle Adjustment (Standard)
Hydraulic or Electric Actuator (Optional)
(2) 6" x 2" Caster Wheels
SS Quick Attach Mount (Standard)
JD Loader / ALO Quick Attach / TORO-DINGO Mounts Available
455 lbs. approx.

Features

Sweeping Angle

A full 30 degree rotation in either direction. (Engine model shown)

7 Year Warranty

All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

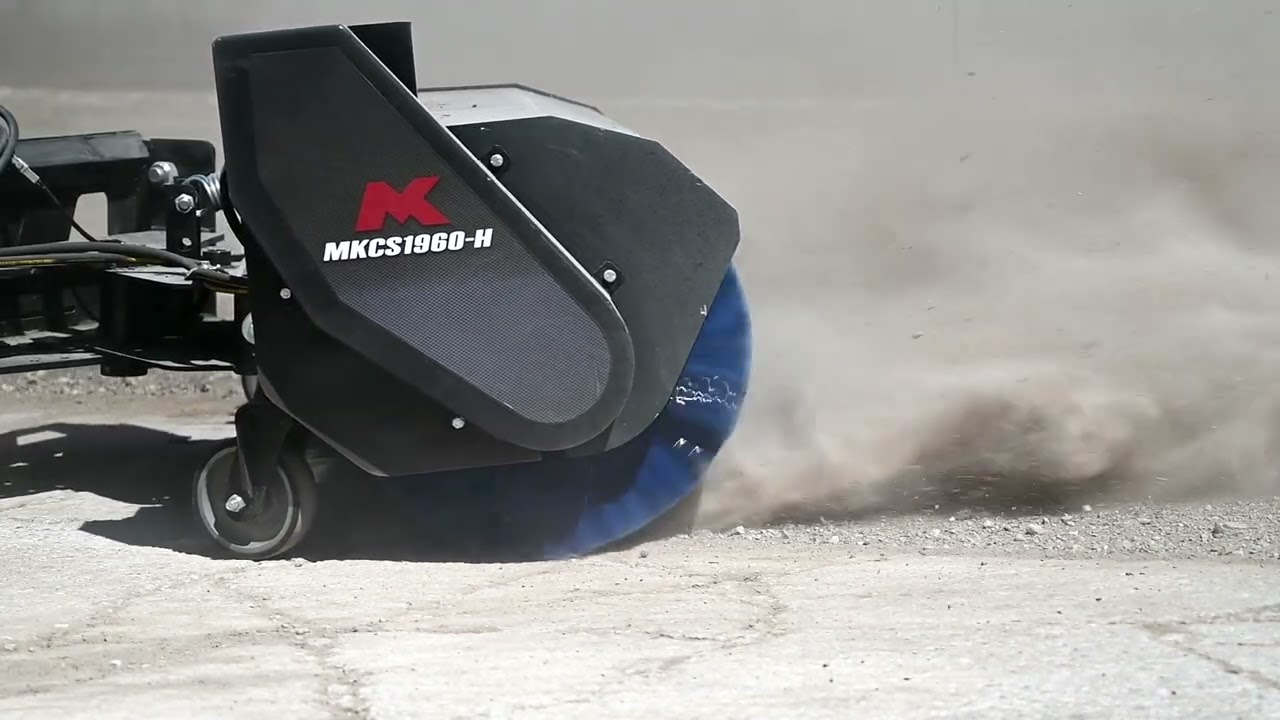

Floating Linkage

This sweeper is designed with a floating linkage to ensure the 29 heavy duty sweeping wafers maintain an even, level pressure on uneven surfaces.

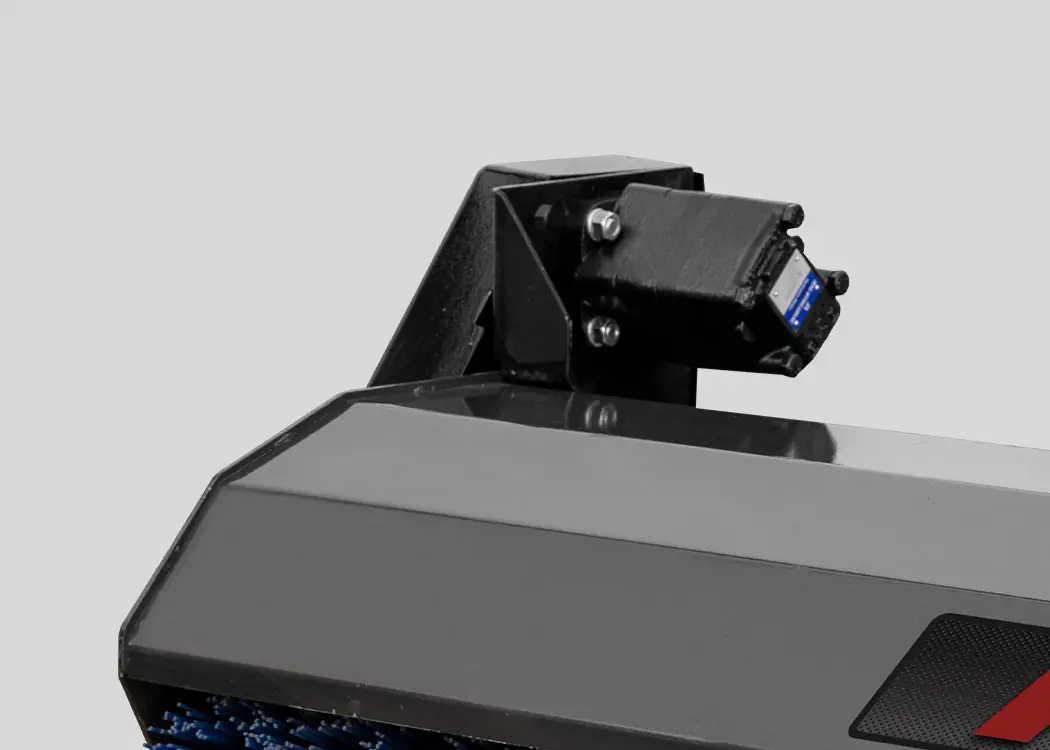

Hydraulic Motor

The hydraulic sweeper is powered by an efficient geroler hydraulic motor offering a flow rate of 8 to 12 gallons per minute.

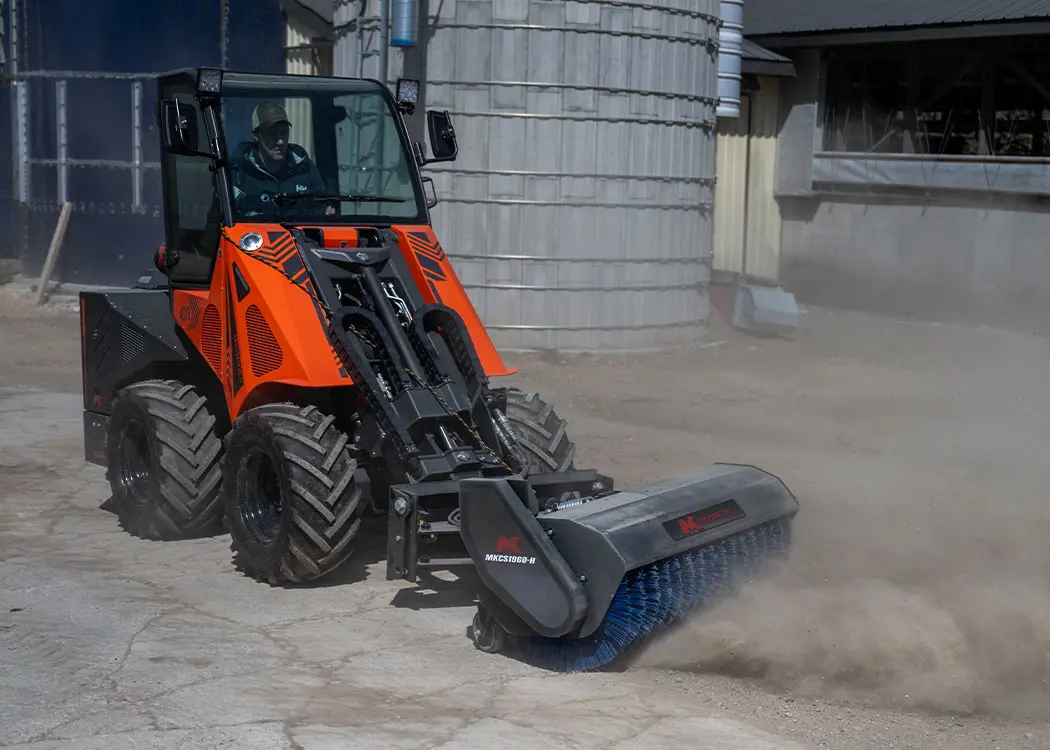

Mounting Options

Available with a variety of skidsteer and loader mounting options. SS Quick Attach (Standard), JD Loader Mount, ALO Quick Attach, Avant Mount, TORO-DINGO Plate (Available at extra cost)

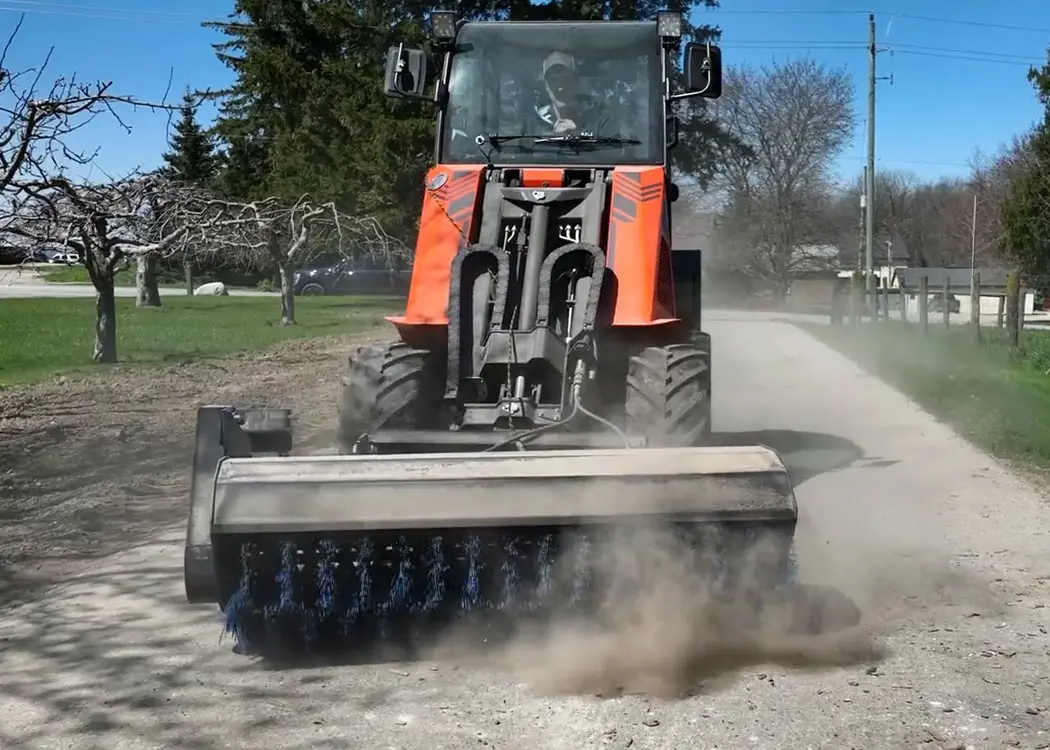

Sweeping Width

Offering a sweeping path of 60 inches and a 19-inch brush diameter, these sweepers are designed to tackle the toughest jobs - efficiently.

Options

Hydraulic Angling

Easily angle your sweeper right from the cab with a full 30 degree rotation in either direction.

Electric Angling
