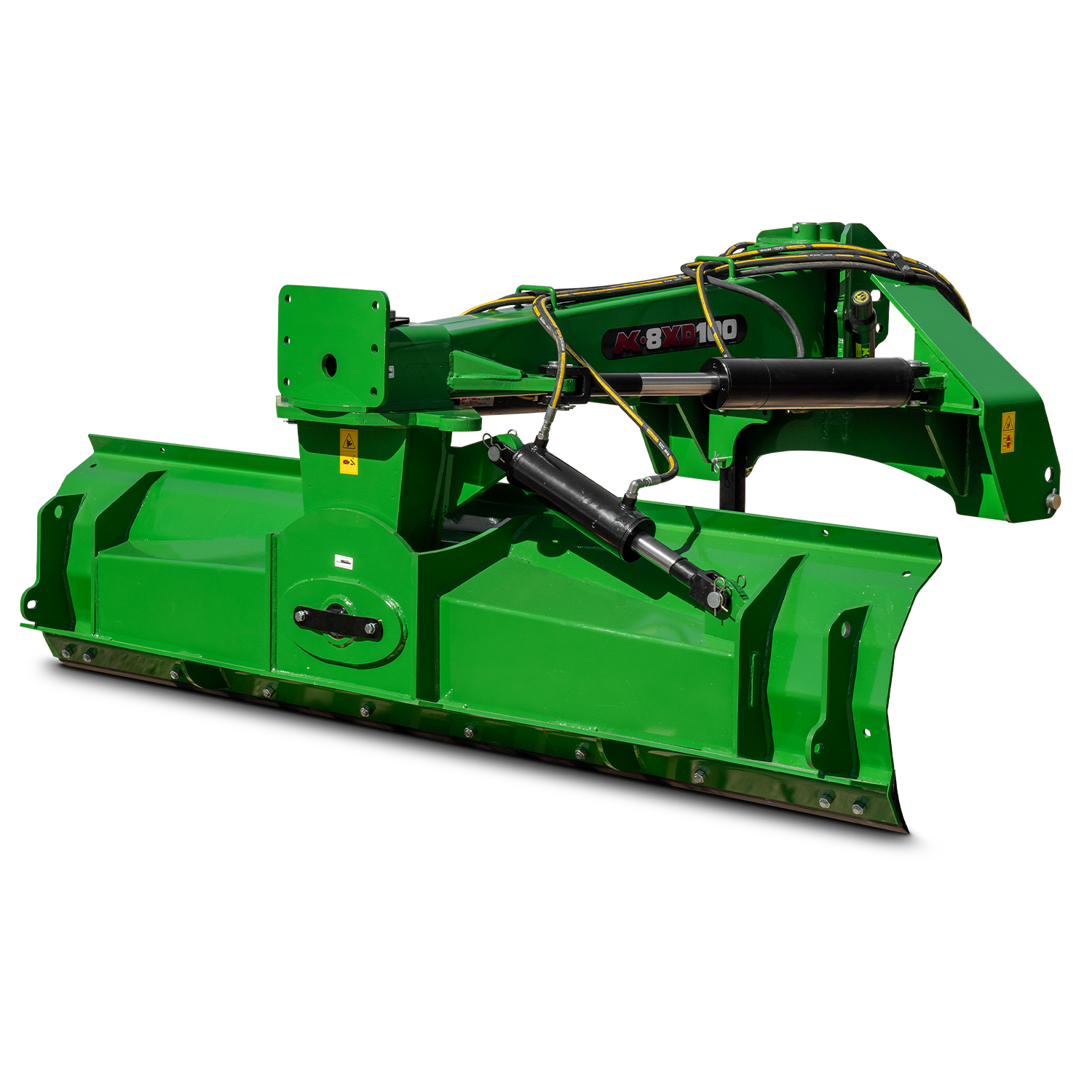

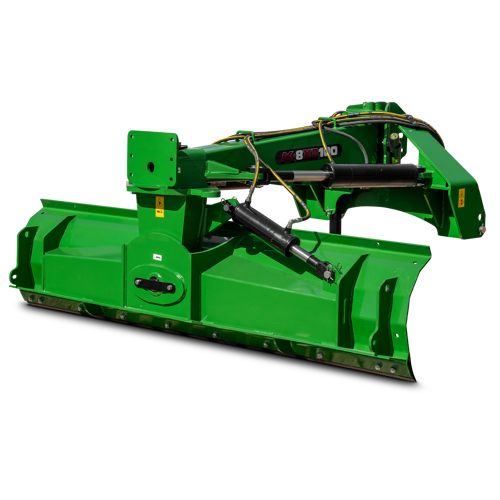

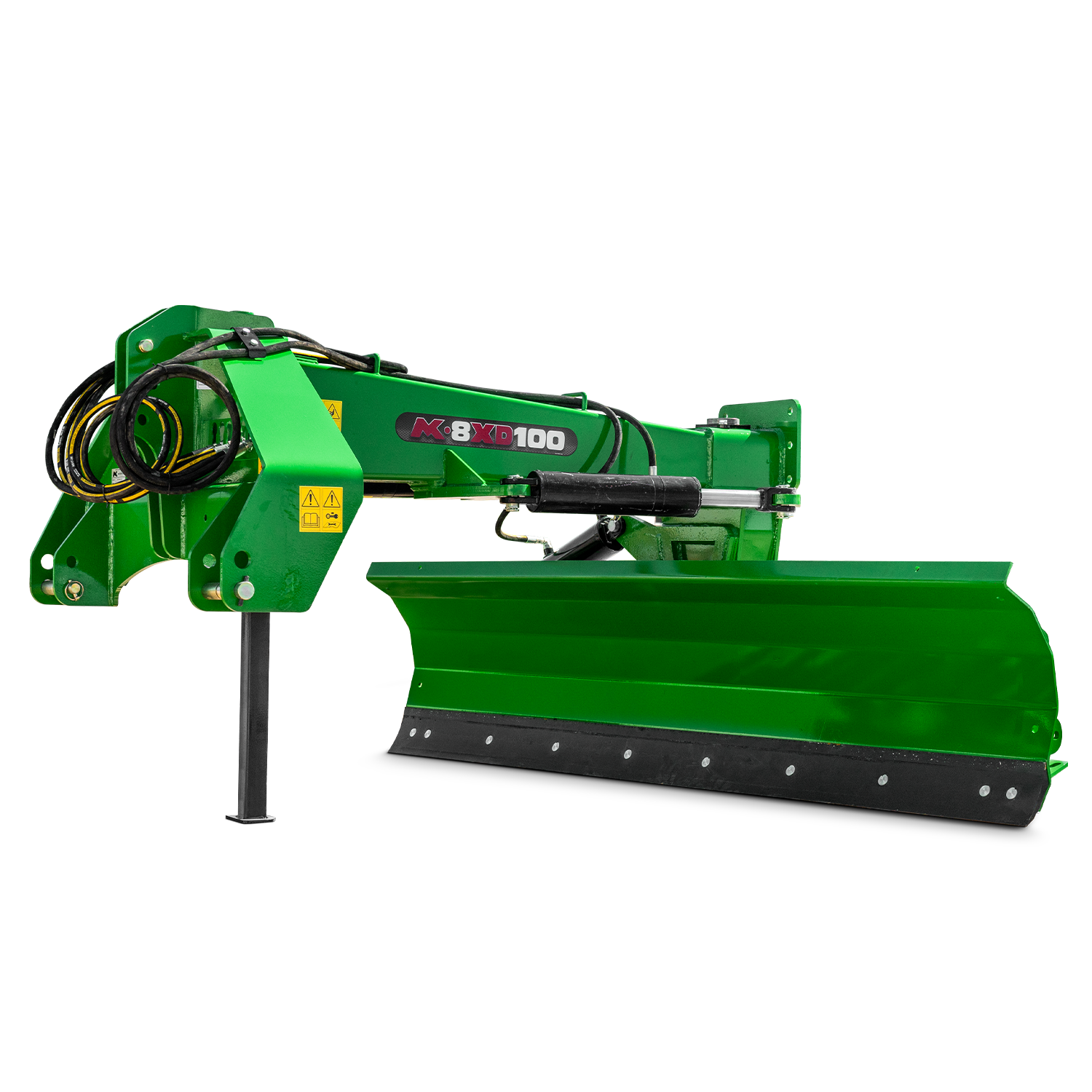

8XD-100
XD Grader Blades
Product Specifications
- 100 HP Max
- 96" Mouldboard Width
- 5/16" Mouldboard Thickness
- 20" Mouldboard Height
- CAT. 2 & 3 3PH
- 27" Hydraulic Offset Adjustment (Left or Right)
- 32° Hydraulic Angle Adjustment (Left or Right)
- 13° Hydraulic Blade Tilt Adjustment
- 3-1/2" King Pin
- 1/2" x 6" Reversible High Carbon Cutting Edge
- 1,572 lbs.
Features
7 Year Warranty
All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

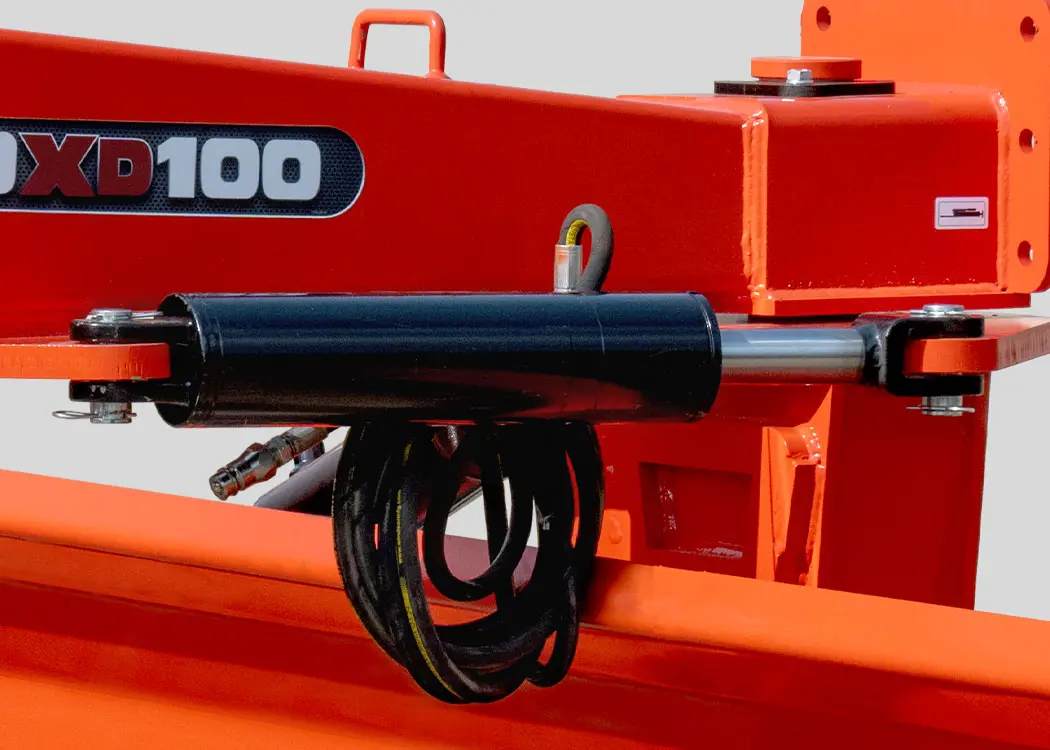

Hydraulic Angle
Angling the XD Grader Blade allows you to direct the material off the path, or feed the material directly into your path to level out high and low areas.

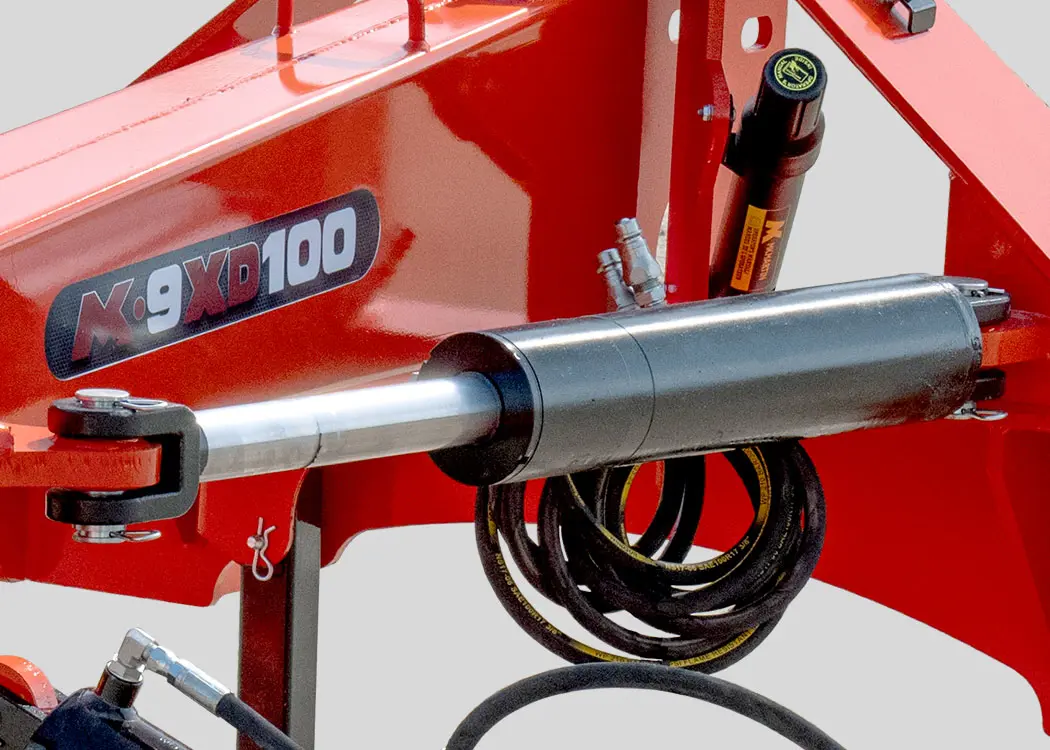

Hydraulic Offset
The hydraulic offset offsets the XD Grader Blade from your tractor, while retaining the current angle and tilt.

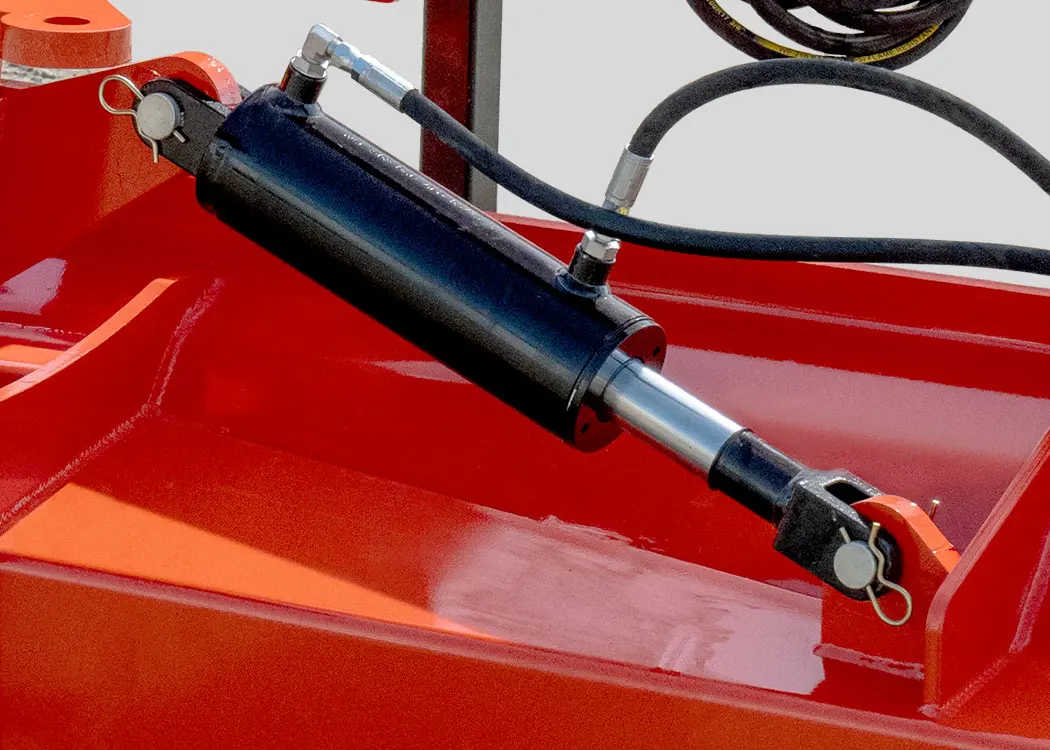

Hydraulic Tilt
Easily tilt your XD grader blade allowing for better drainage on your path, or flatten out an angled path.

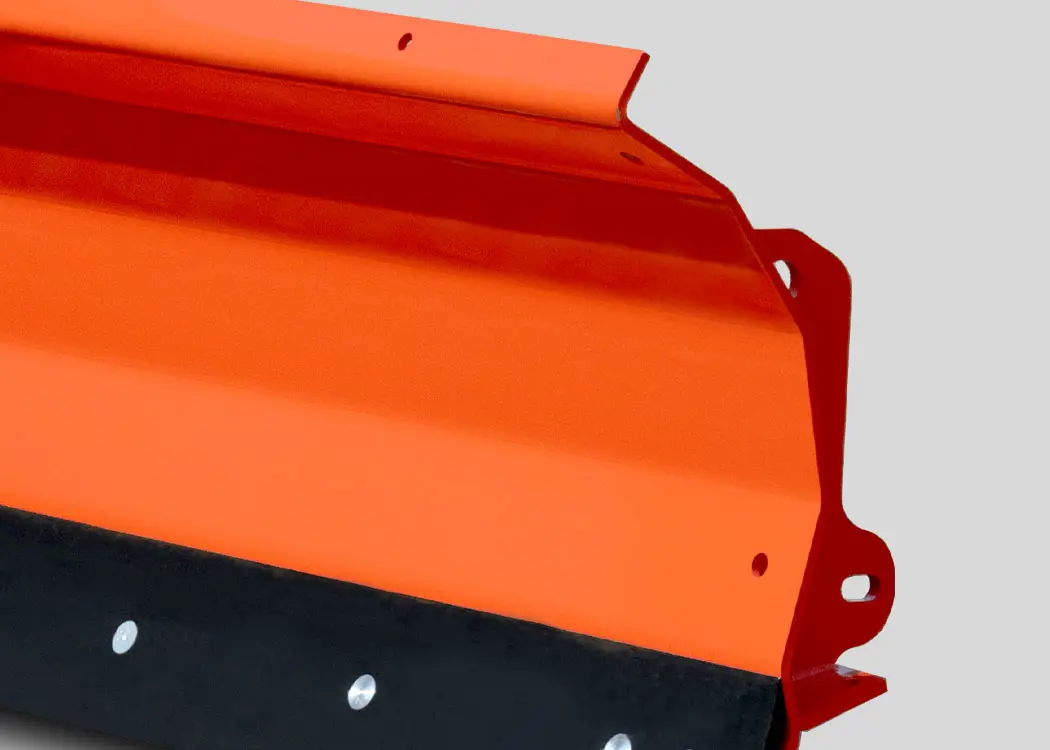

Mouldboard
The 20 inch high mouldboard comes in either 5/16" thick or 3/8" thick steel, depending on the model.
Options

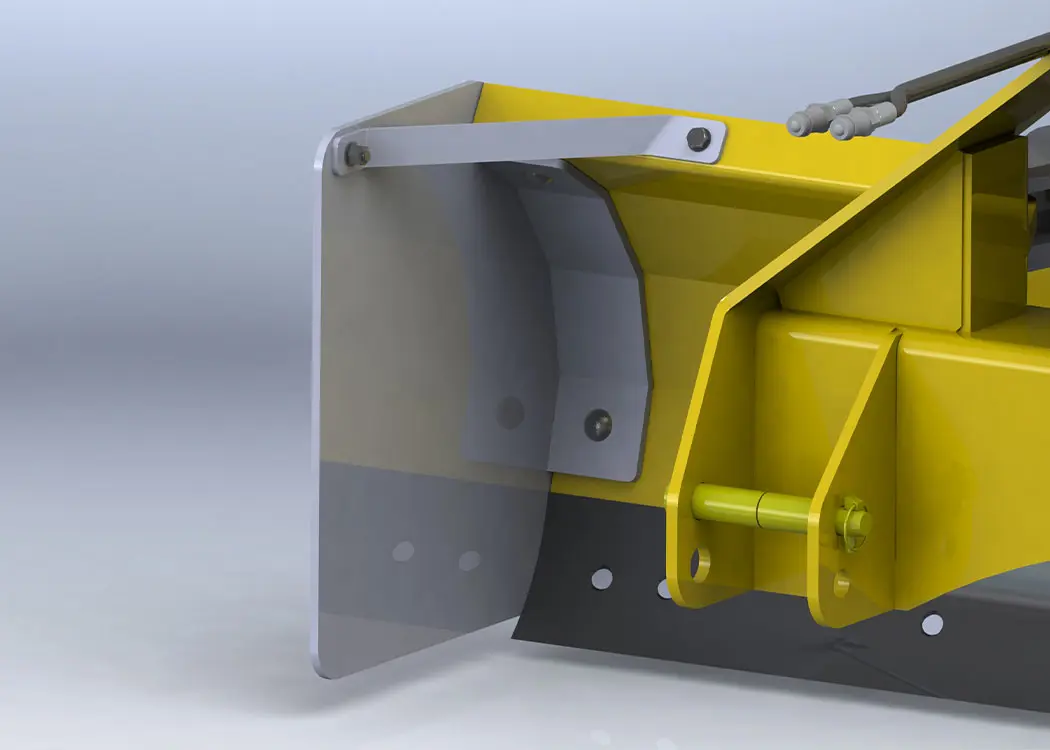

Box End Plates
Allowing the blade to act more like a box blade, collect and hold your material while you grade.

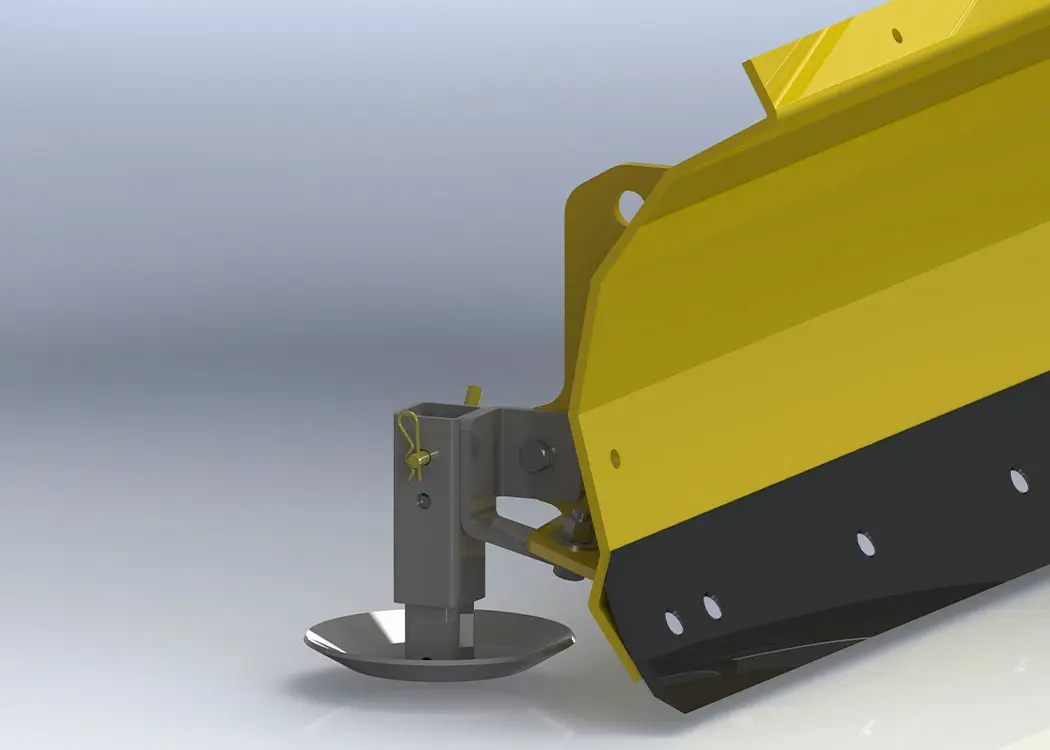

Skid Shoe Kit
Protect the surface and gain better control while you grade with the optional skid shoe kit.

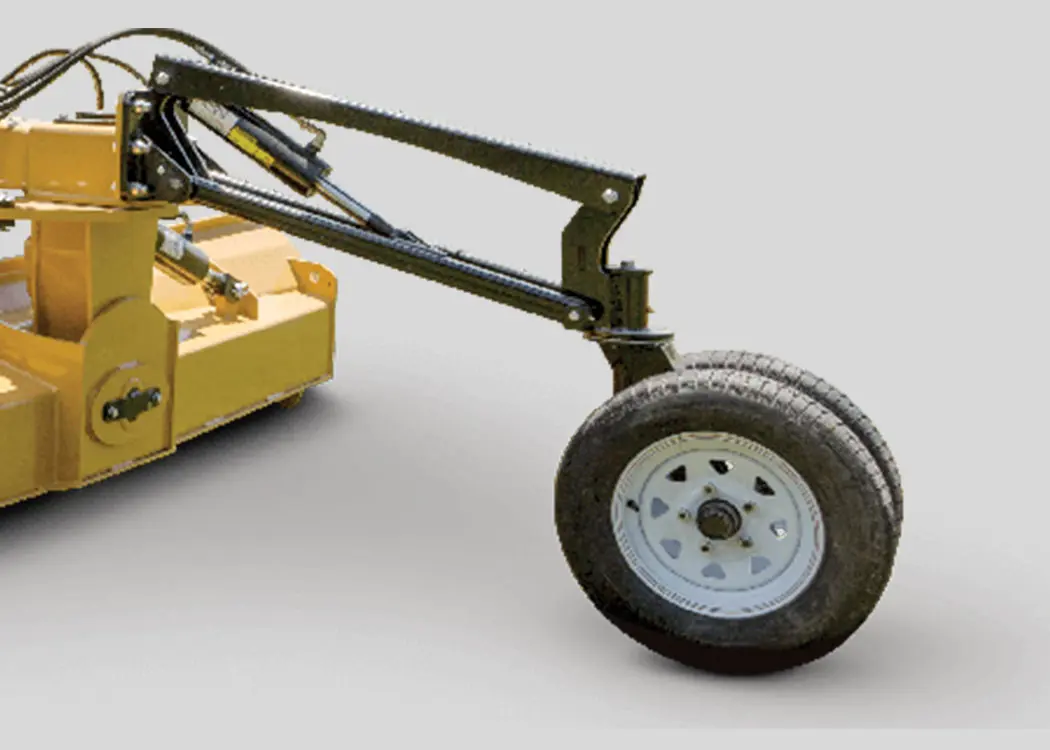

Tail Wheel Kit
The optional dual gauge wheel kit provides more stability as you tilt, offset, and angle the XD Grader Blade giving you more control over the flow of material. The hydraulic cylinder raises and lowers the wheel giving you even more control over the finished product.
