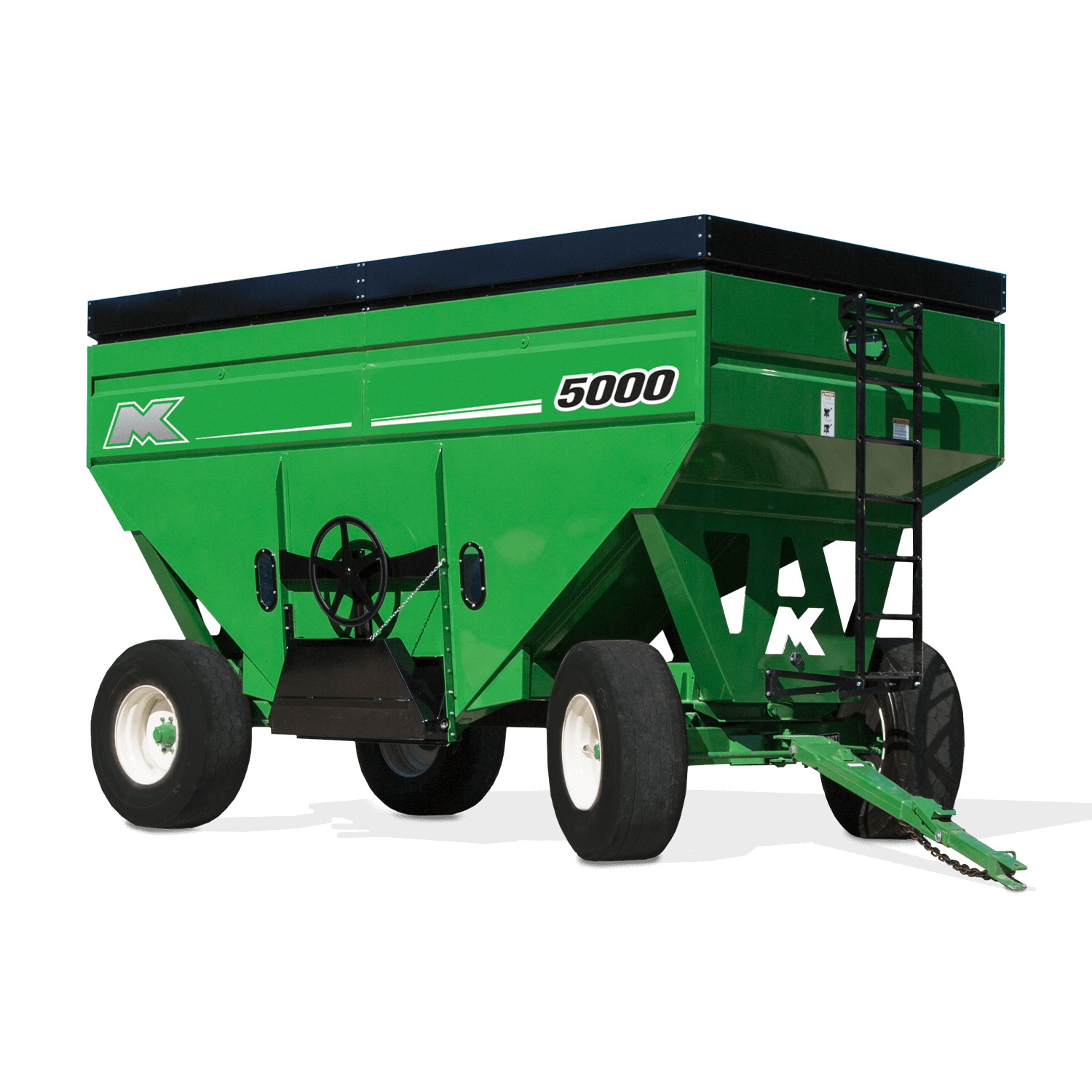

MKGW5000
Gravity Box - 5000
Product Specifications
- Base (No Extension)
- 500 Bushel Capacity
- 12 GA. Hopper Construction
- 4" x 8" x .188" Wall Rectangular Tubing Under Structure
- 57" Width Unloading Door (Standard)
- 28" Width x2 Divider Doors
- 196" Length Box
- 101" Width Box
- 89" Height (Less Wagon)
- 123" Height (Wagon & 22.5" Wheel)
- 3,610 lbs.
- 142" Wheel Base
- 365 Horst Wagon (Suggested Wagon)
- With 8" Extension
- 570 Bushel Capacity
- 98" Height (Less Wagon)
- 131" Height (Wagon & 22.5" Wheel)
- 3,845 lbs.
- With 12" Extension
- 605 Bushel Capacity
- 101" Height (Less Wagon)
- 135" Height (Wagon & 22.5" Wheel)
- 3,915 lbs.
Features
7 Year Warranty
All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

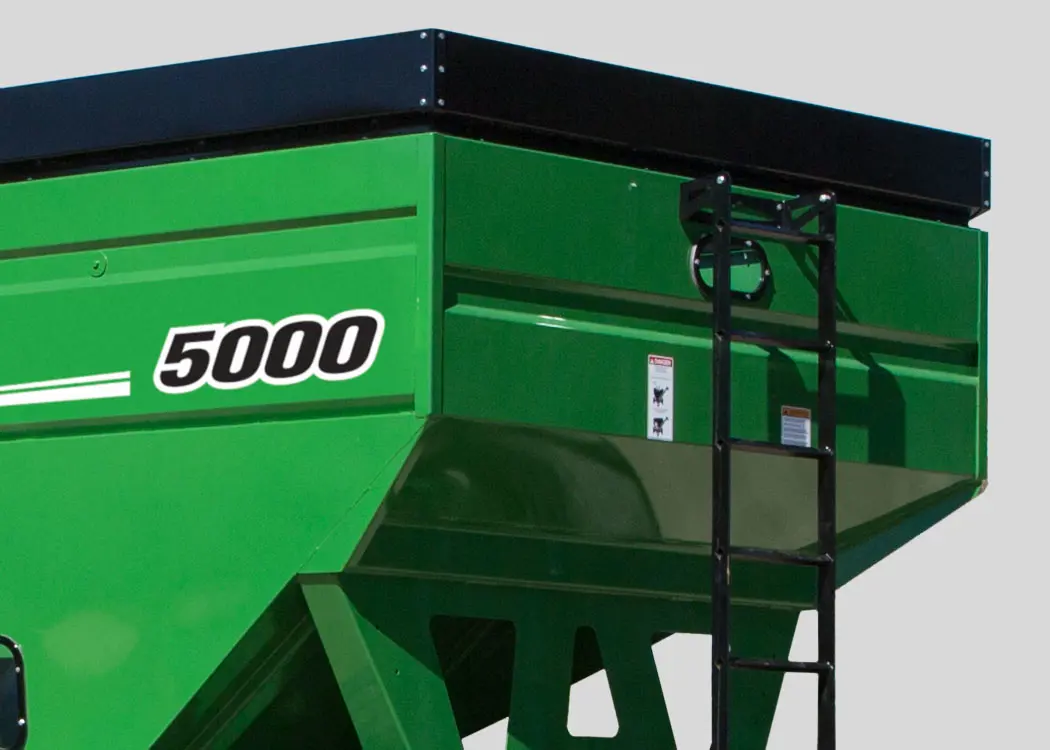

Front Ladder
The front ladder has a slightly angled incline for easier climbing, allowing you to look inside the Gravity Box with less effort and more stability.

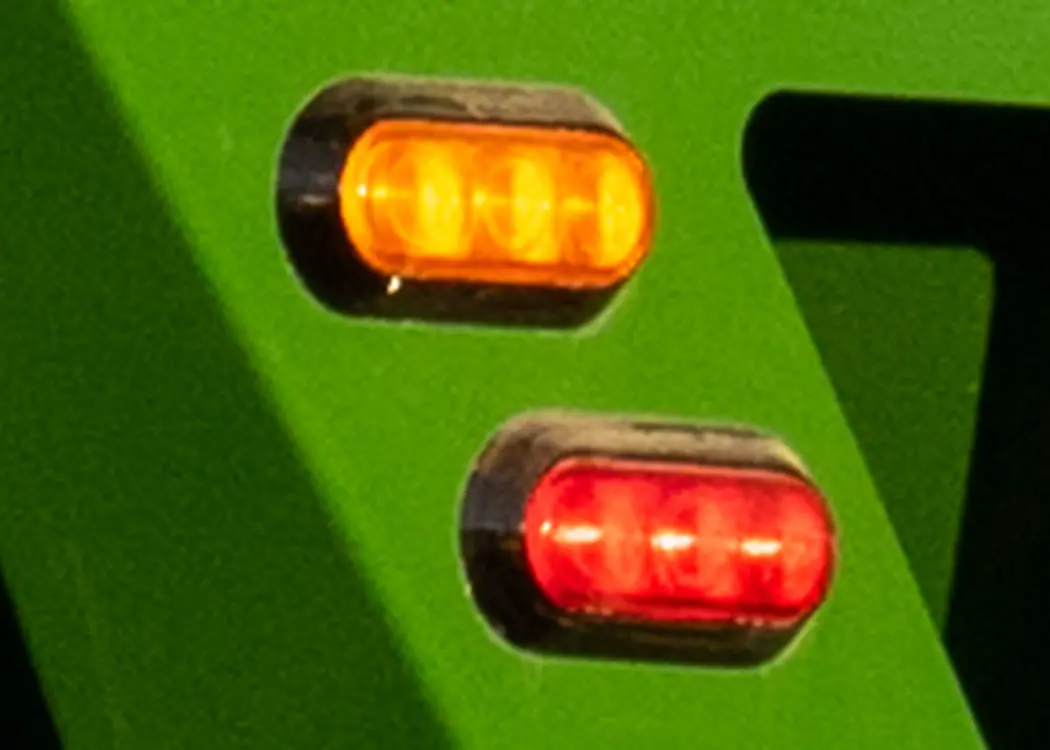

Road Lights
Every Gravity Box comes equipped with road lights for safer road travel.

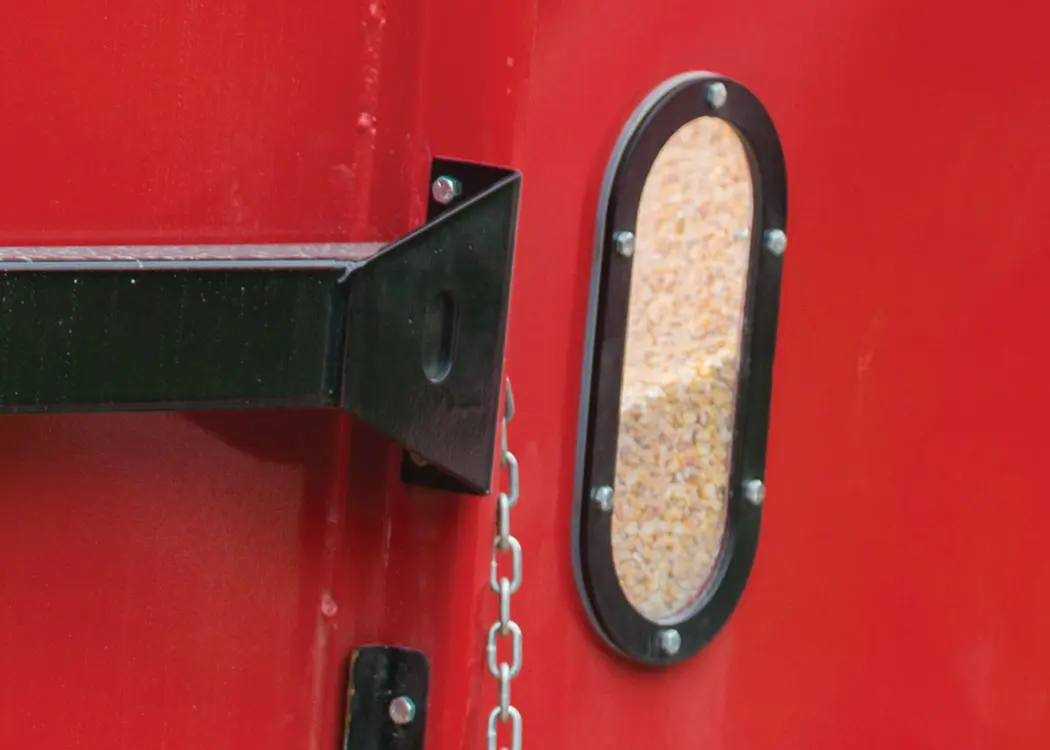

Sight Windows
Conveniently located beside the unloading door, these viewing windows allow you to see the current level of material inside the Gravity Box.

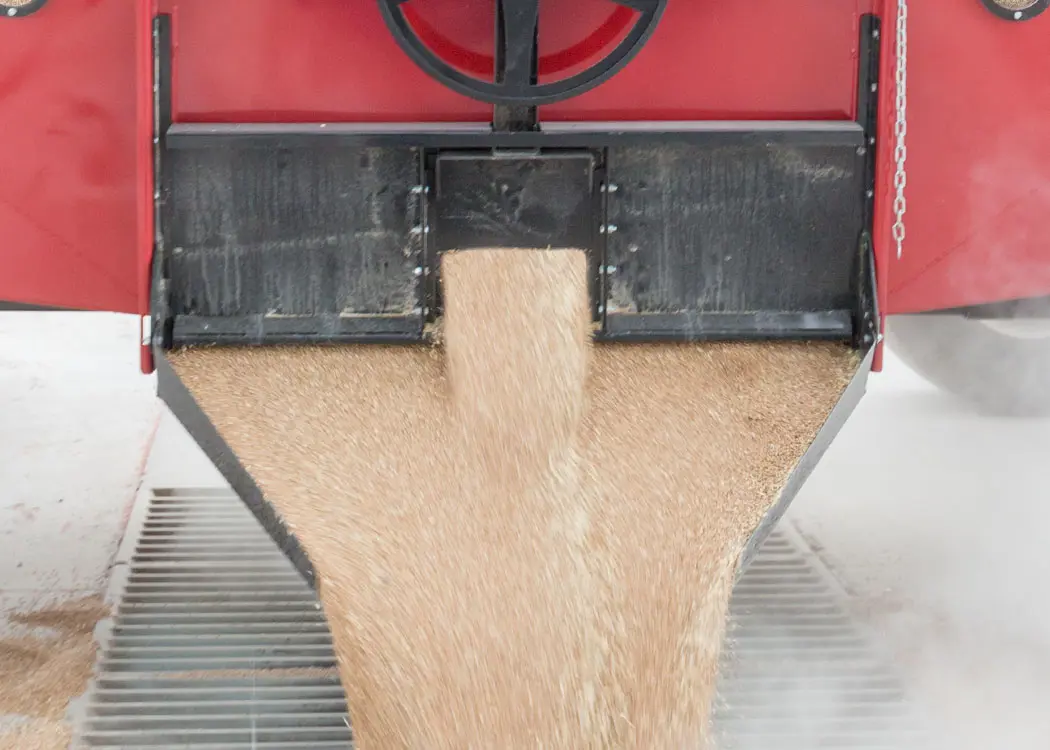

Unloading Door
Each Gravity Box comes with an easy to use unloading door equipped with a metering door, providing a smoother, more consistent flow of material. It also allows you to fine tune the amount of material leaving the Gravity Box, ensuring that you're in control of the flow every time.
Options

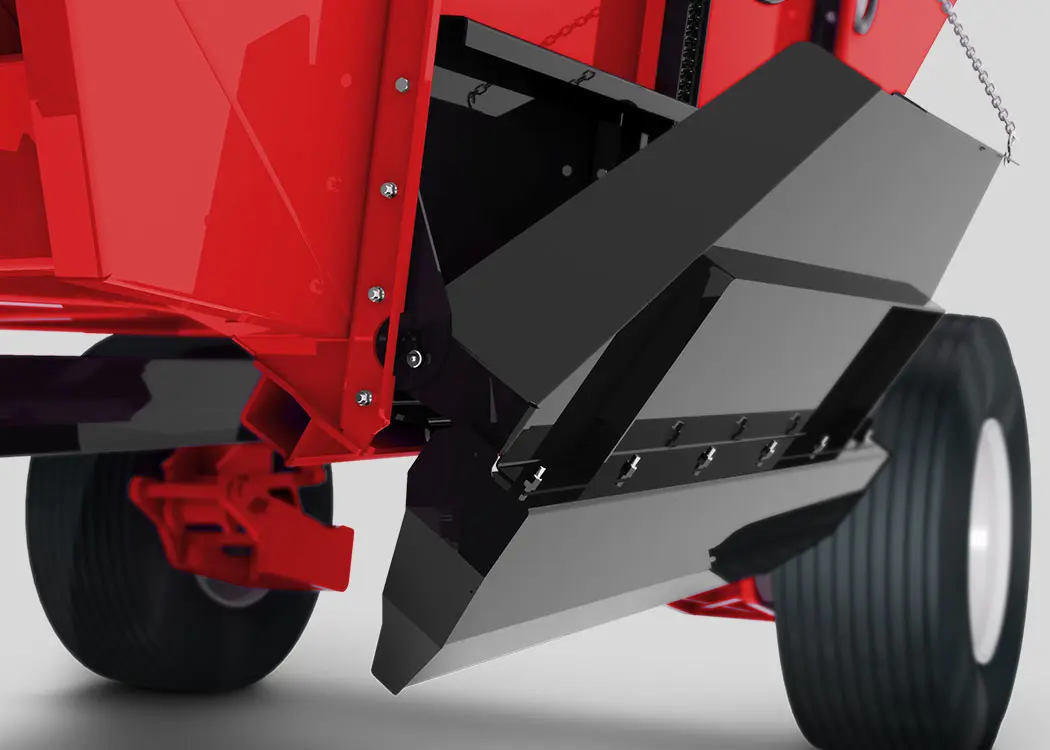

Center Dump
The optional center dump directs the unloading material beneath the gravity box, ideal for when the unloading area isn't wide enough for standard side dumping.

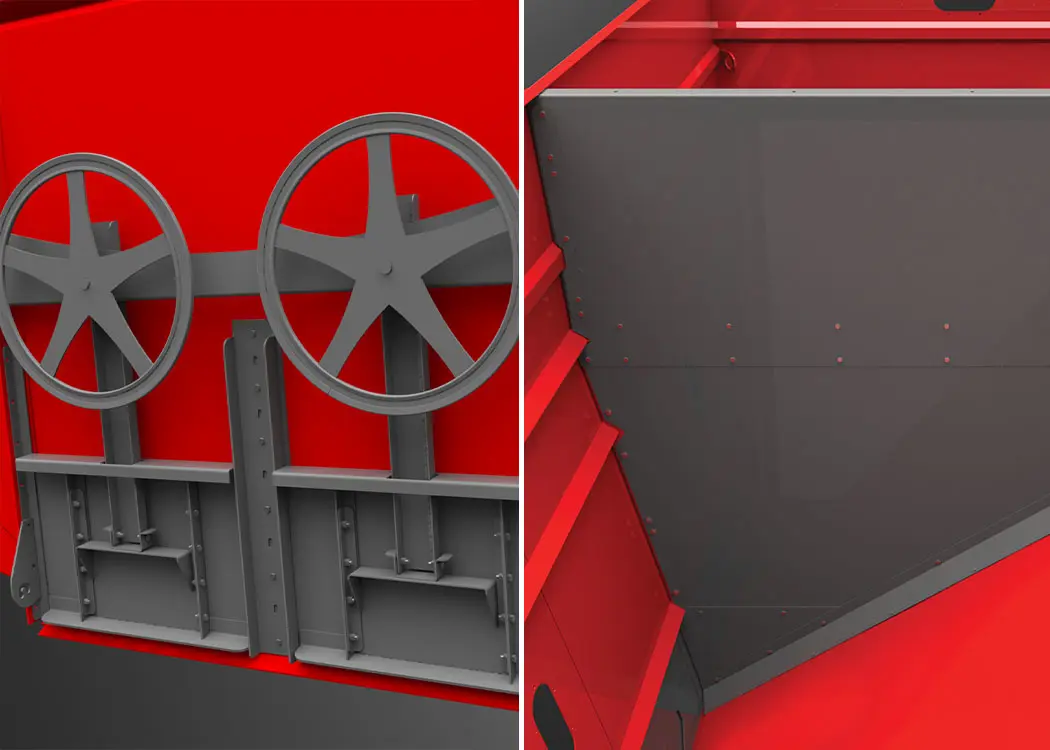

Divider Kit
The optional divider splits your Gravity Box, allowing for two separate commodities to be in the box at the same time. Each side also has its own door for individual unloading and metering. Currently available only on 5000 and 6500 models.

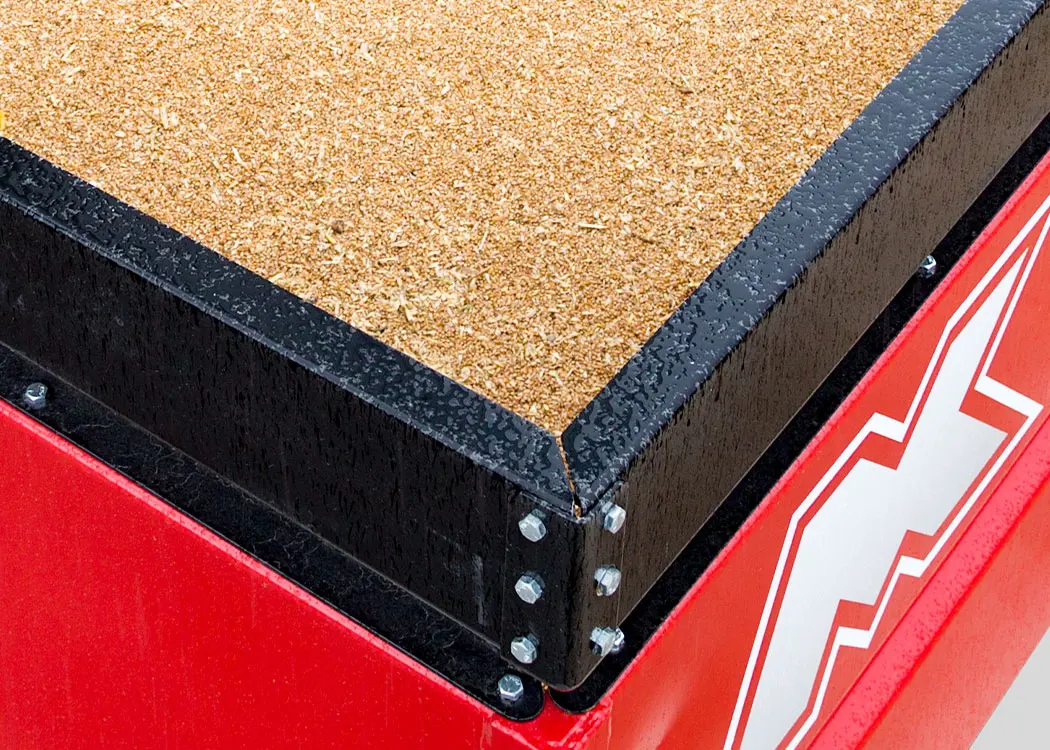

Extension Kit
Available on all models, the optional extension kits increase the capacity of your MK Martin Gravity Box, decreasing the amount of trips you need to make.

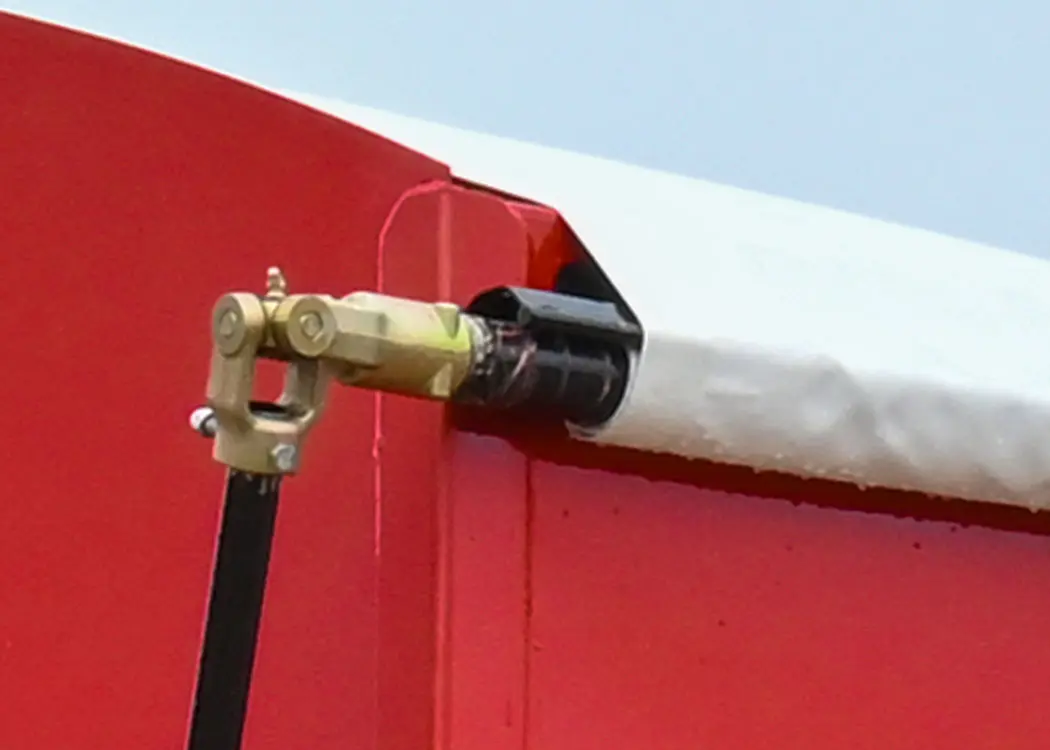

Grain Shield Tarp Kit
The Grain Shield Tarp Kit is an option for all of the Gravity Box sizes. This ratchet-free locking system not only protects the contents from blowing away and from inclement weather, but also locks quickly and easily so you can head out sooner.

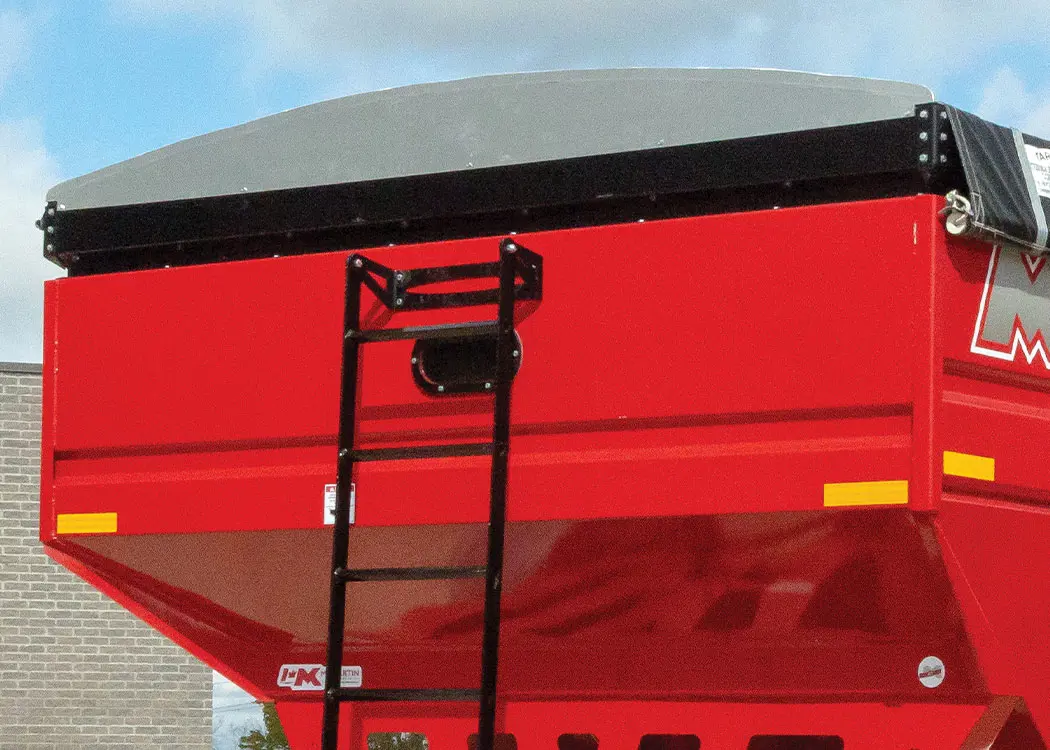

Rear Ladder
The optional rear ladder gives another access point for operators to look into the Gravity Box.

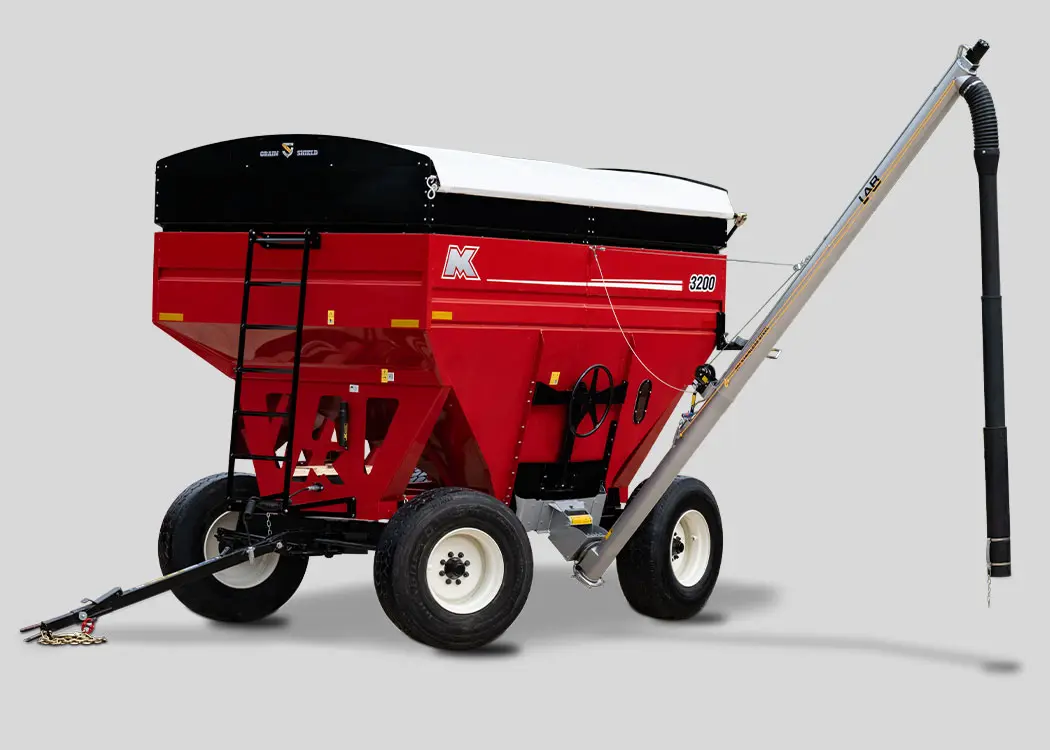

Unloading Auger
Adjustable hopper attaches to the exit door. Available in either stainless or black powder coated downspout.

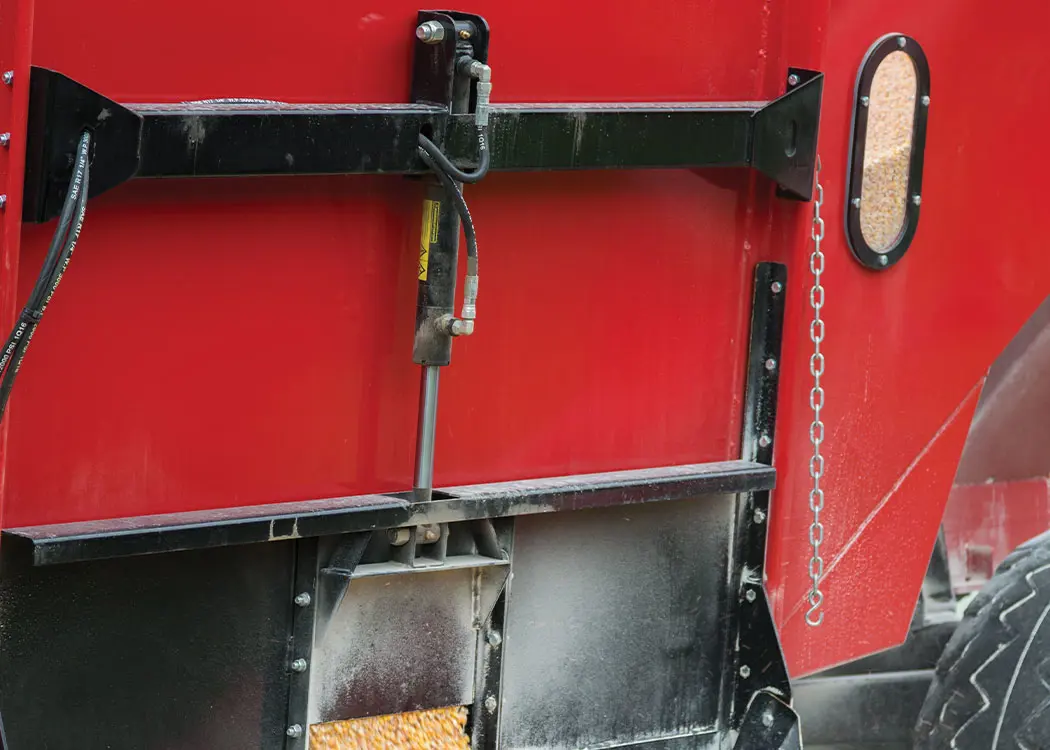

Hydraulic Door Opener
"The Hydraulic Door allows you to conveniently control the metering of the material using a remote from your tractor. Currently available only on 5000 and 6500 models."
