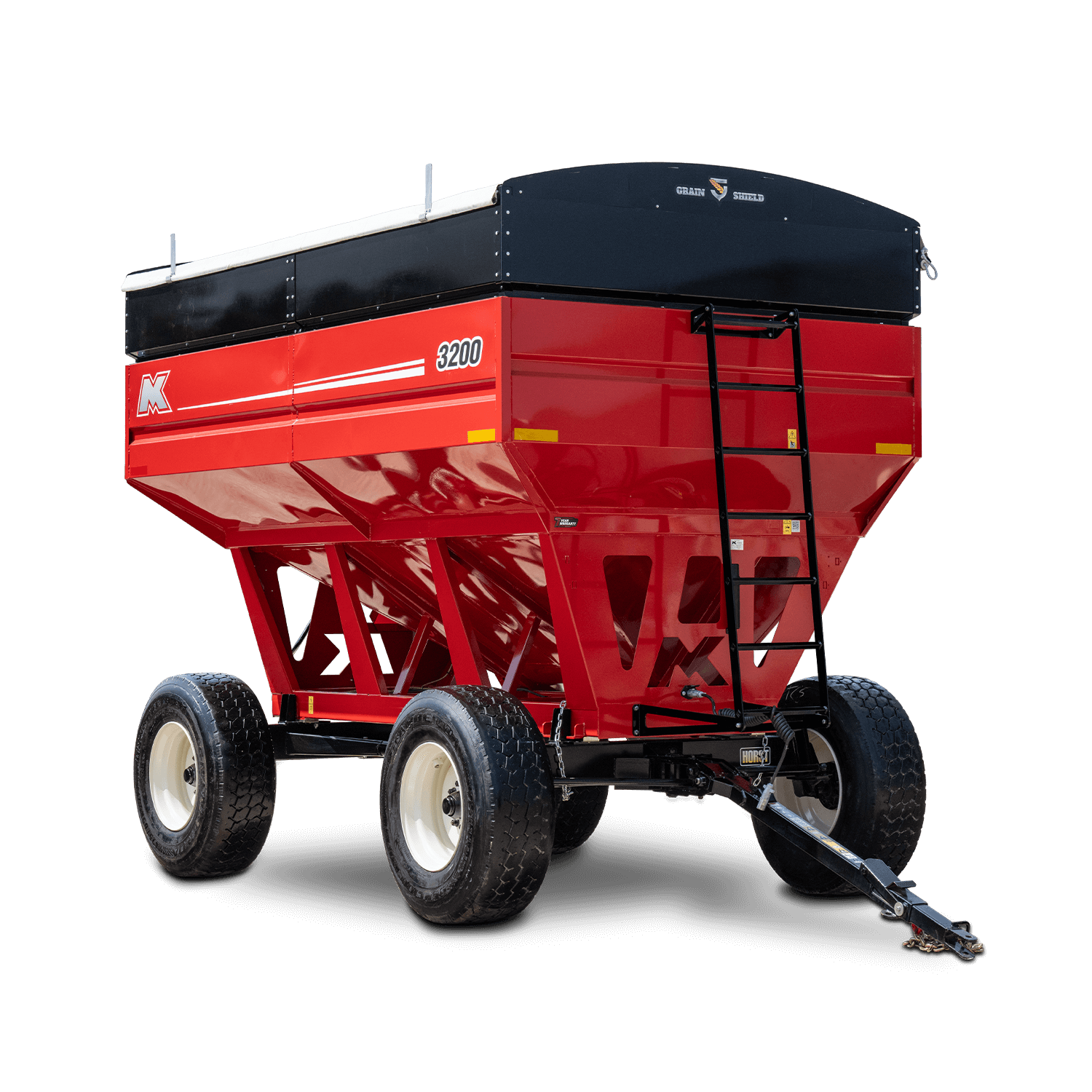

MKGW3200

Gravity Box - 3200

Product Specifications

Base (No Extension)
320 Bushel Capacity
14 GA. Hopper Construction
3" x 6" x .188" Wall Rectangular Tube Under Structure
45" Width Unloading Door
158" Length Box
96" Width Box
78" Height (Less Wagon)
102" Height (Wagon & 22.5" Wheel)
1,980 lbs.
112" Wheel Base
275 Horst Wagon (Suggested Wagon)
With 8" Extension
375 Bushel Capacity
86" Height (Less Wagon)
110" Height (Wagon & 22.5" Wheel)
2,130 lbs.
With 19" Extension
450 Bushel Capacity
98" Height (Less Wagon)
122" Height (Wagon & 22.5" Wheel)
2,270 lbs.

Features

7 Year Warranty

All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

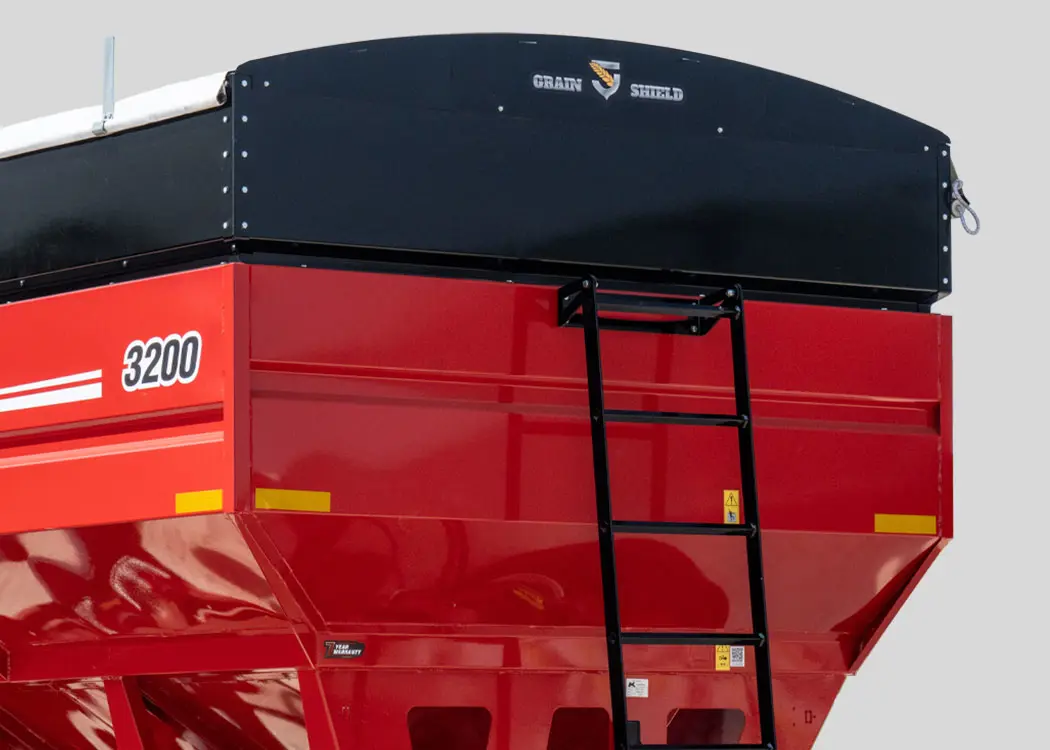

Front Ladder

The front ladder has a slightly angled incline for easier climbing, allowing you to look inside the Gravity Box with less effort and more stability.

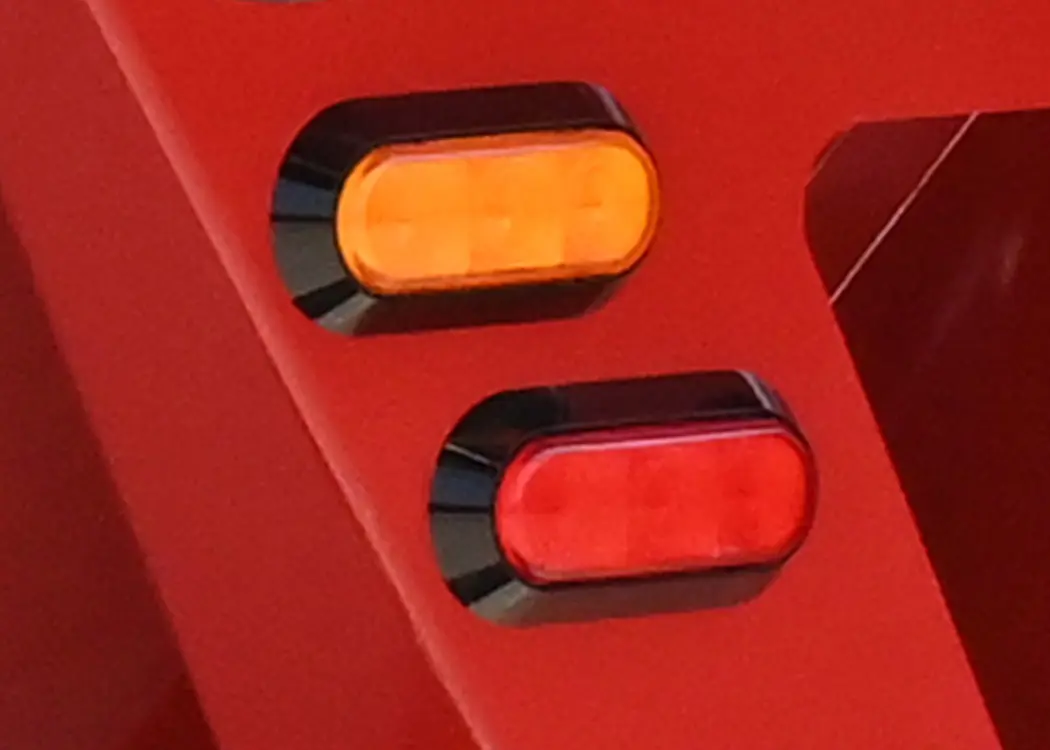

Road Lights

Every Gravity Box comes equipped with road lights for safer road travel.

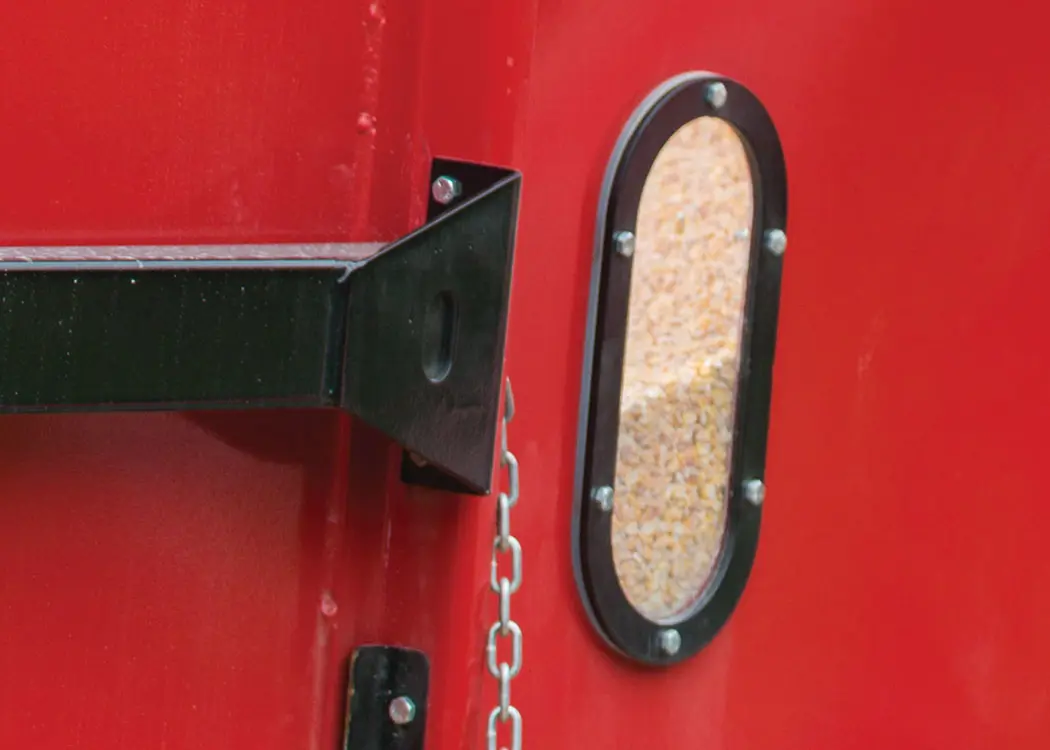

Sight Windows

Conveniently located beside the unloading door, these viewing windows allow you to see the current level of material inside the Gravity Box.

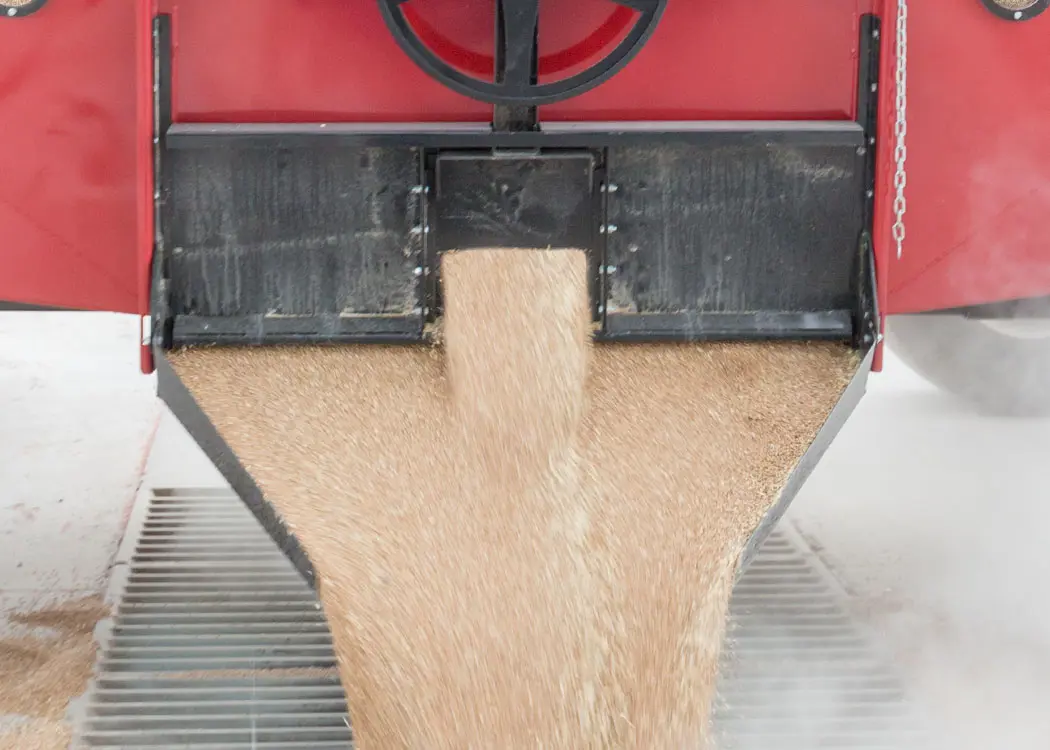

Unloading Door

Each Gravity Box comes with an easy to use unloading door equipped with a metering door, providing a smoother, more consistent flow of material. It also allows you to fine tune the amount of material leaving the Gravity Box, ensuring that you're in control of the flow every time.

Options

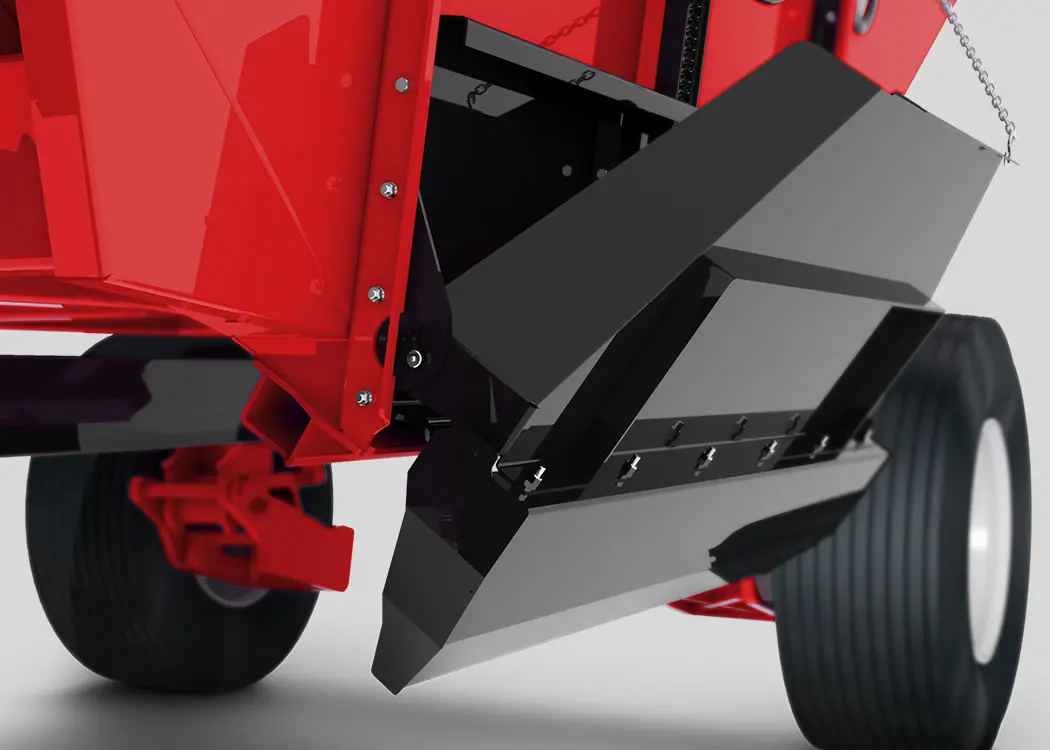

Center Dump

The optional center dump directs the unloading material beneath the gravity box, ideal for when the unloading area isn't wide enough for standard side dumping.

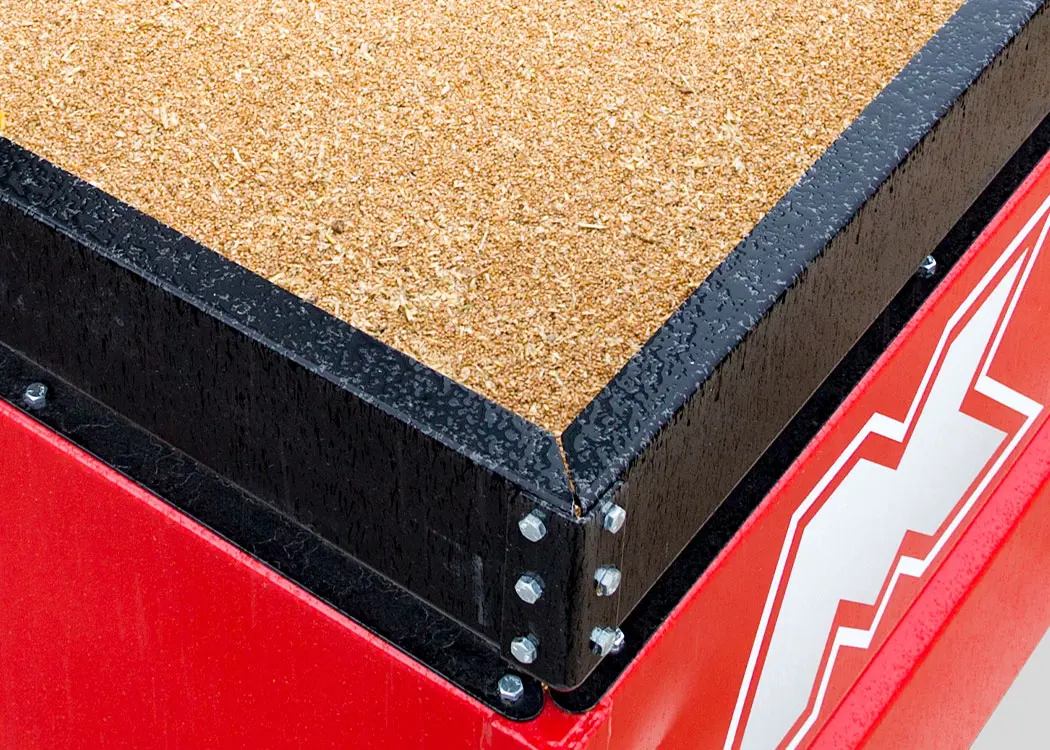

Extension Kit

Available on all models, the optional extension kits increase the capacity of your MK Martin Gravity Box, decreasing the amount of trips you need to make.

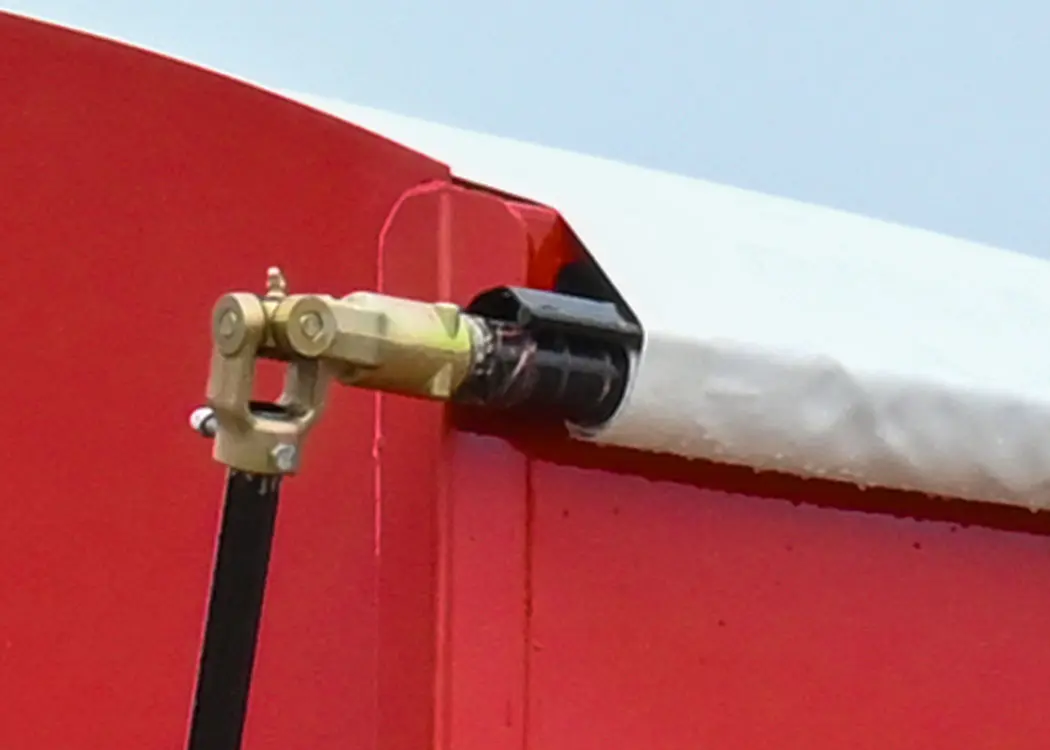

Grain Shield Tarp Kit

The Grain Shield Tarp Kit is an option for all of the Gravity Box sizes. This ratchet-free locking system not only protects the contents from blowing away and from inclement weather, but also locks quickly and easily so you can head out sooner.

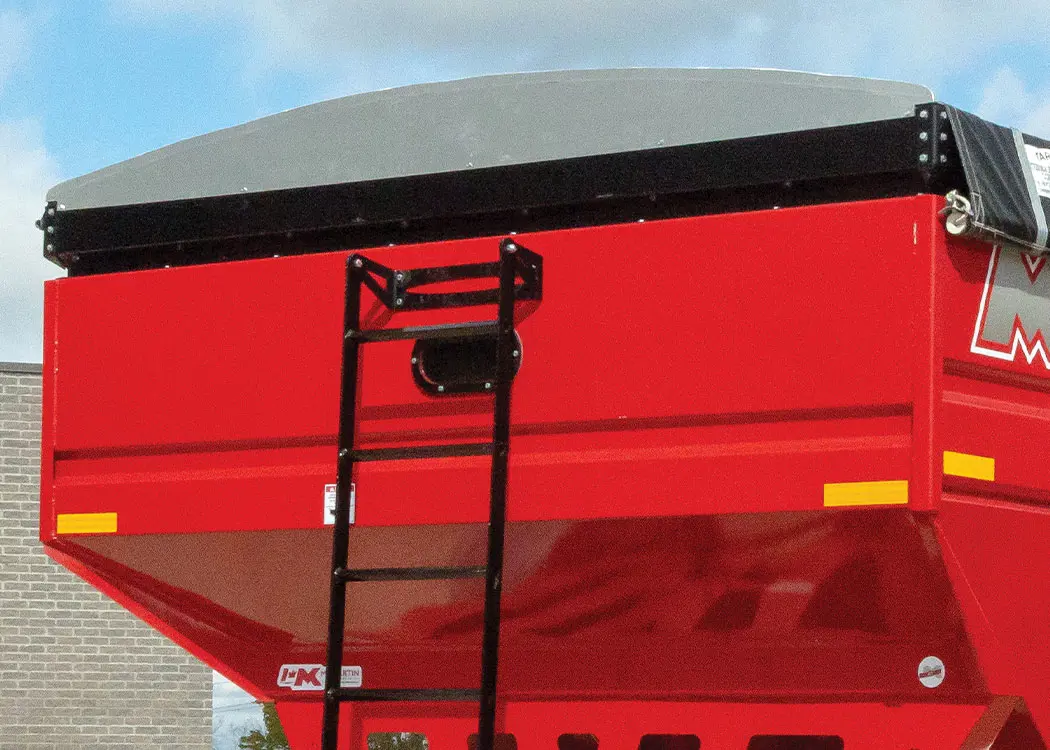

Rear Ladder

The optional rear ladder gives another access point for operators to look into the Gravity Box.

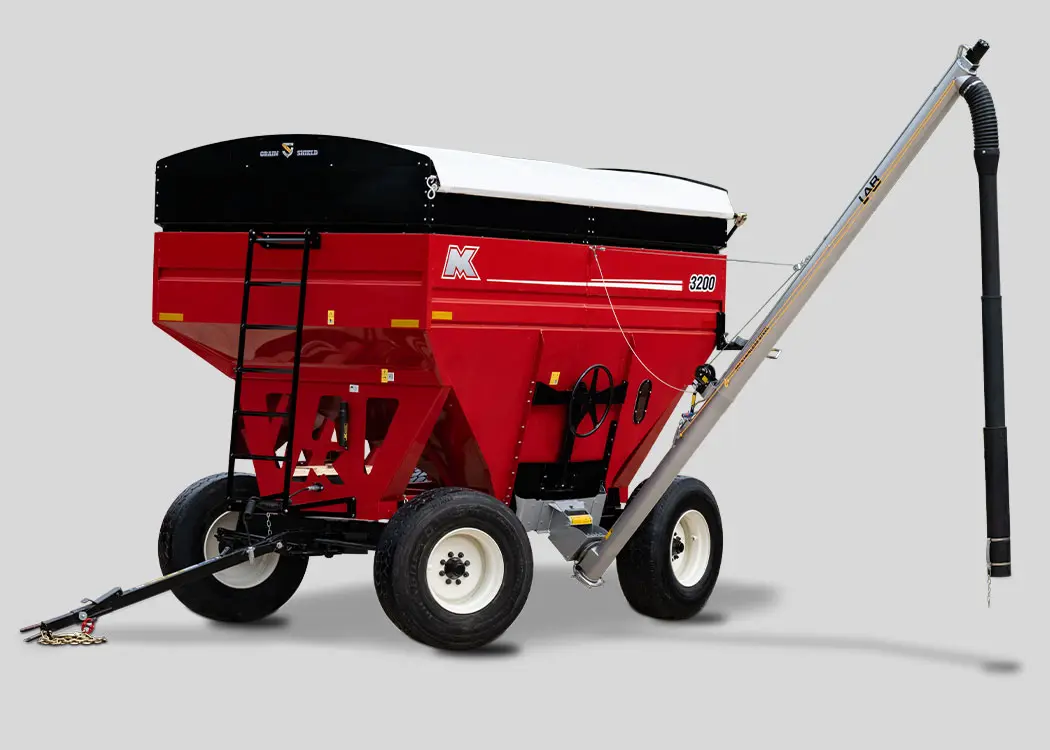

Unloading Auger

Adjustable hopper attaches to the exit door. Available in either stainless or black powder coated downspout.
