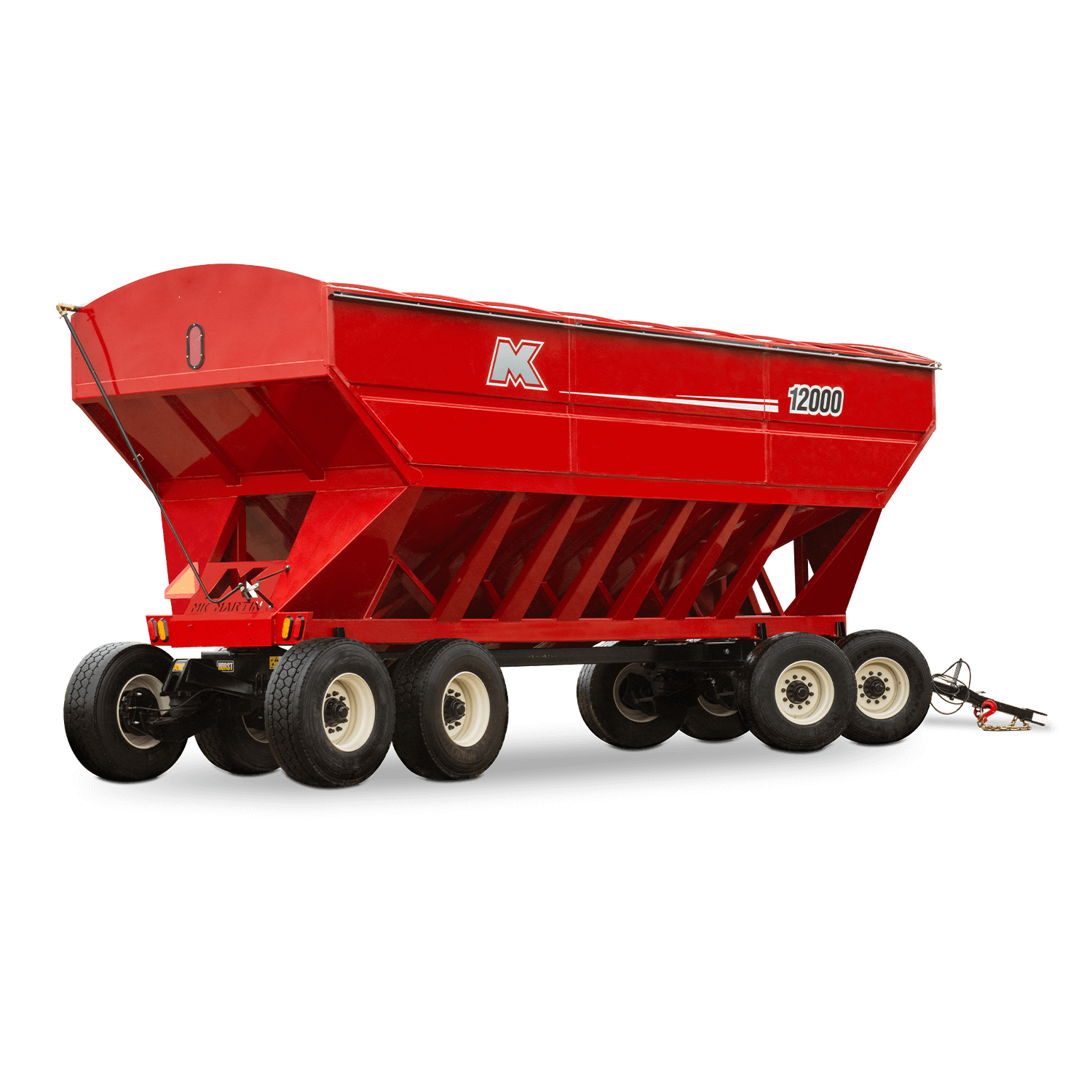

MKGW12000SD

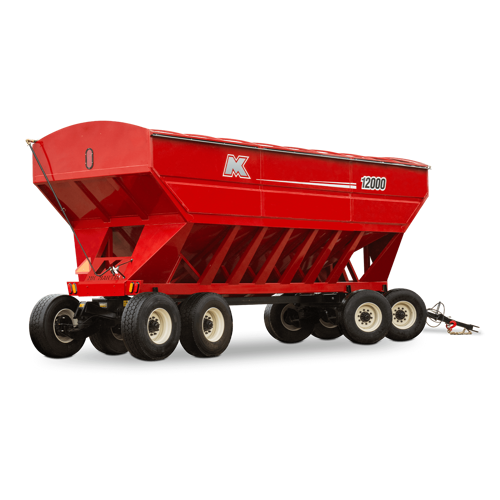

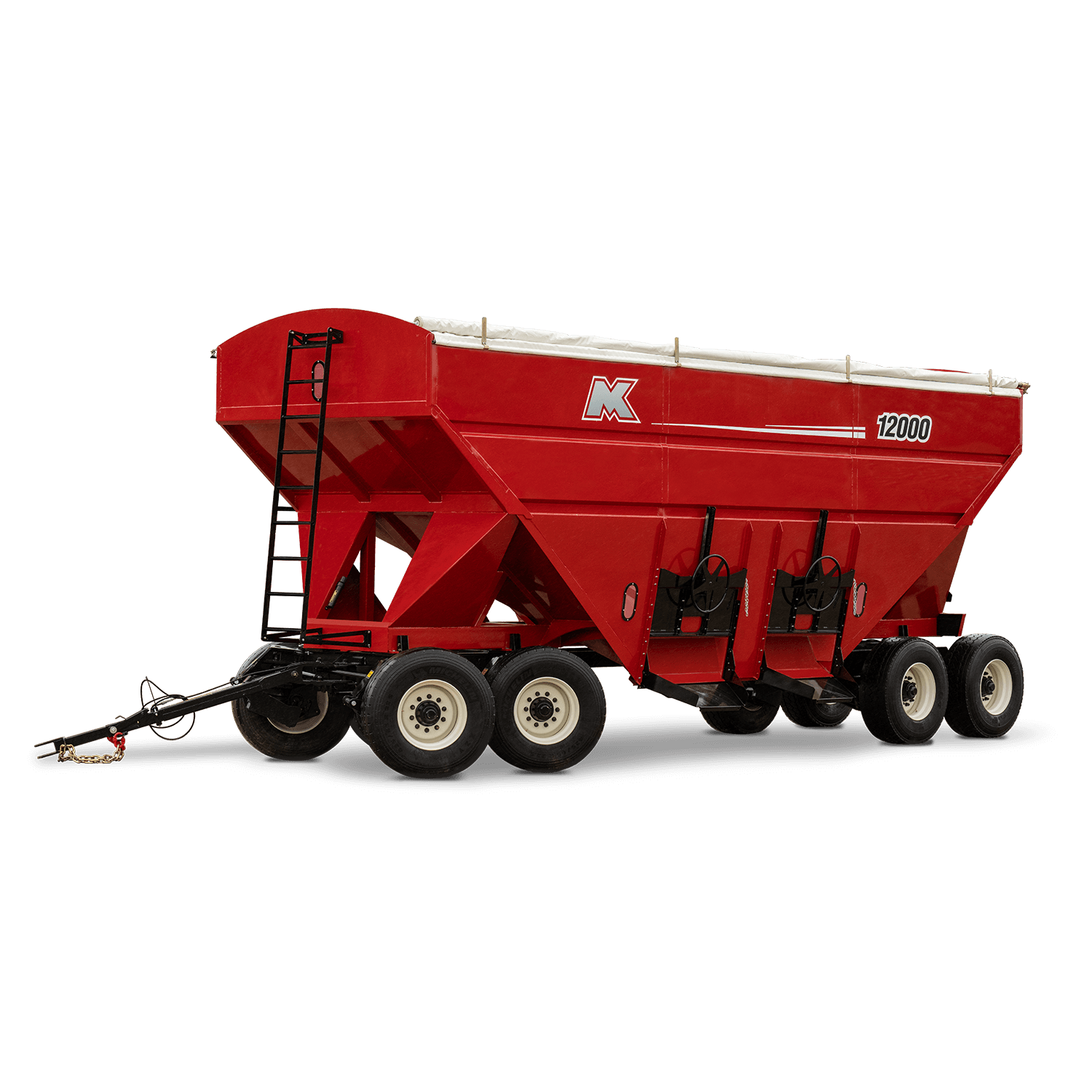

Gravity Box - 12000
Product Specifications
- Side Discharge
- 1,200 Bushel Capacity
- 12 GA. Hopper Construction
- 4x8x.25w Under Structure
- 15" Length x 47" Width x 2 Unloading Doors
- 18" Chute Height (Side Discharge)
- 315" Length Box
- 110" Width Box
- 136" Height (Less Wagon)
- 156" Height (Wagon & 22.5" Wheel)
- 17,500 lbs.
- 215" Wheel Base
- 608 Horst Wagon - 8 wheel quadsteer with brakes
Features
7 Year Warranty
All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

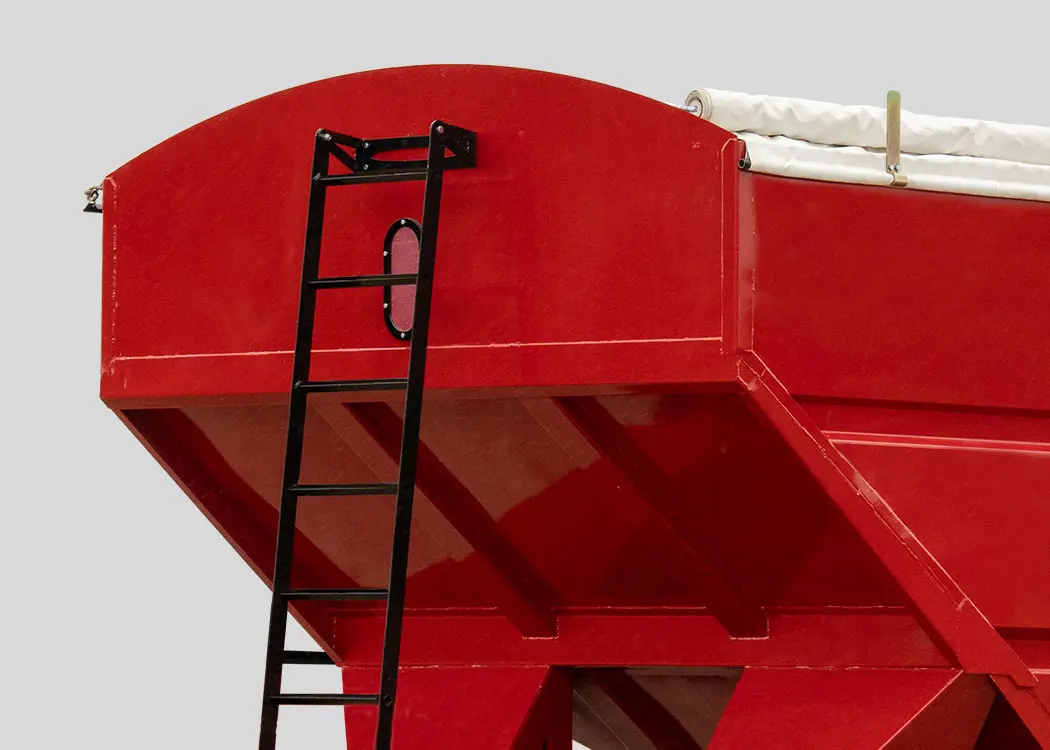

Front Ladder
The front ladder has a slightly angled incline for easier climbing, allowing you to look inside the Gravity Box with less effort and more stability.

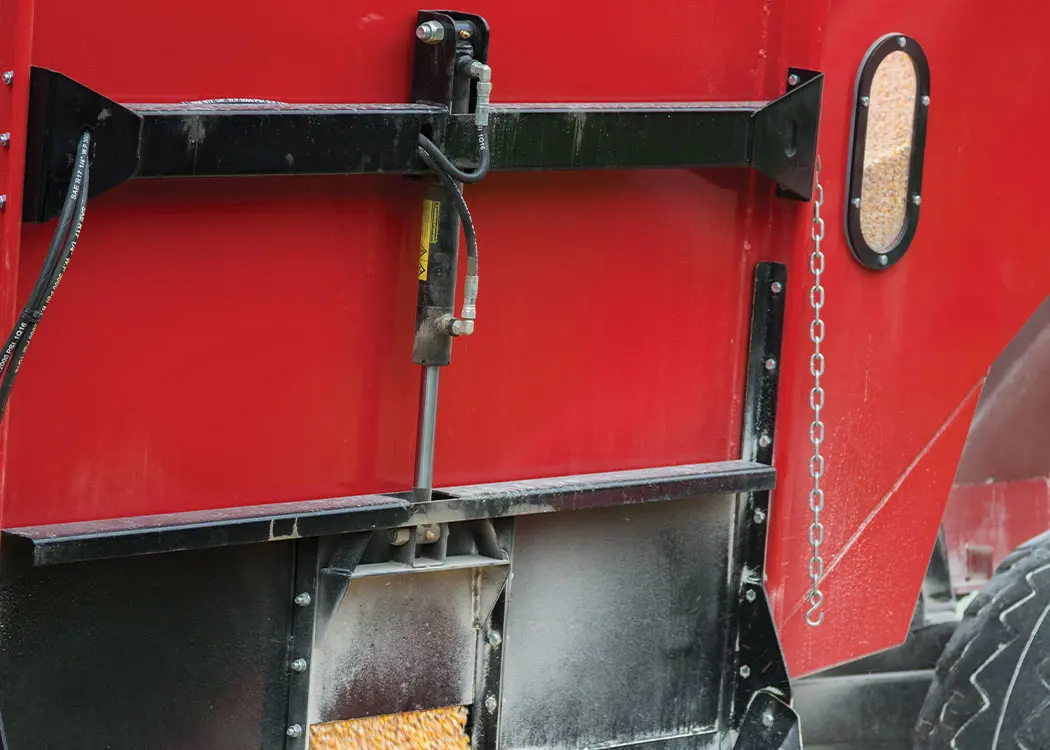

Hydraulic Door Opener
The Hydraulic Door allows you to conveniently control the metering of the material using a remote from your tractor. Standard on the center dump box

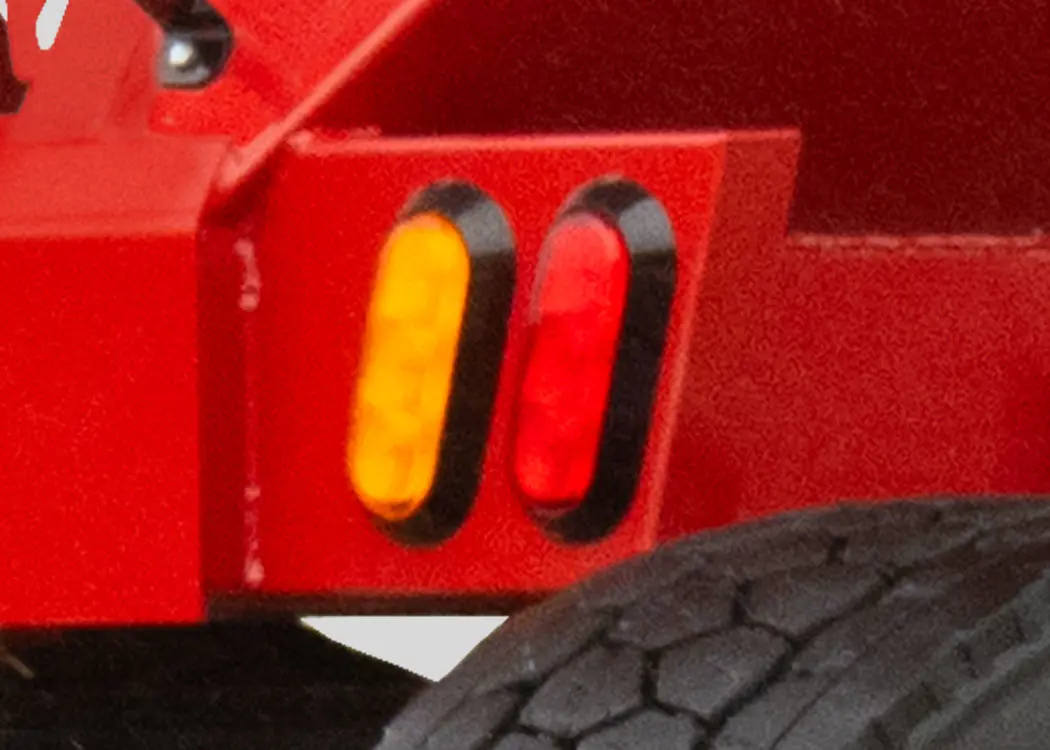

Road Lights
Every Gravity Box comes equipped with road lights for safer road travel.

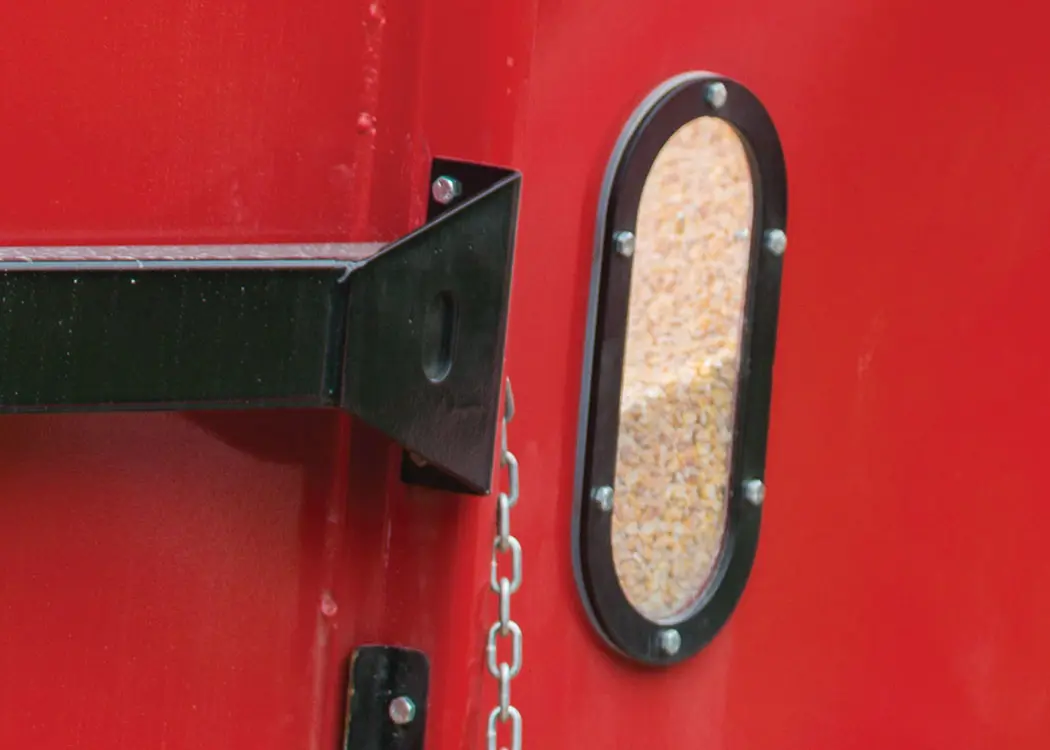

Sight Windows
Conveniently located beside the unloading door, these viewing windows allow you to see the current level of material inside the Gravity Box.

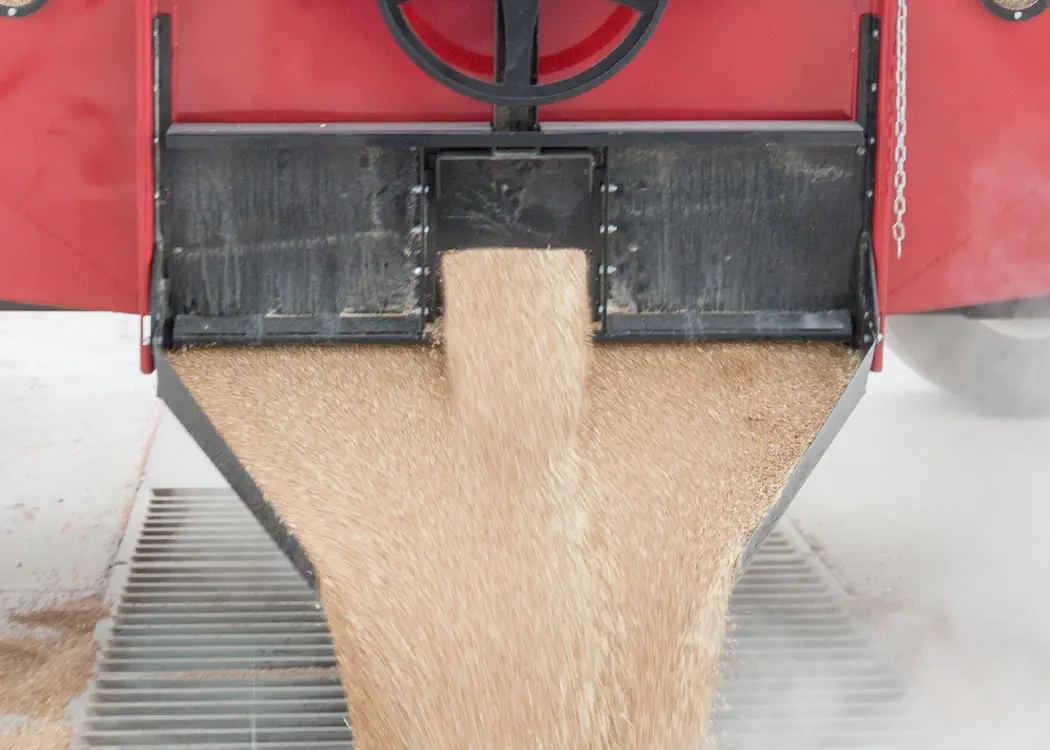

Unloading Door
Each Gravity Box comes with an easy to use unloading door equipped with a metering door, providing a smoother, more consistent flow of material. It also allows you to fine tune the amount of material leaving the Gravity Box, ensuring that you're in control of the flow every time.

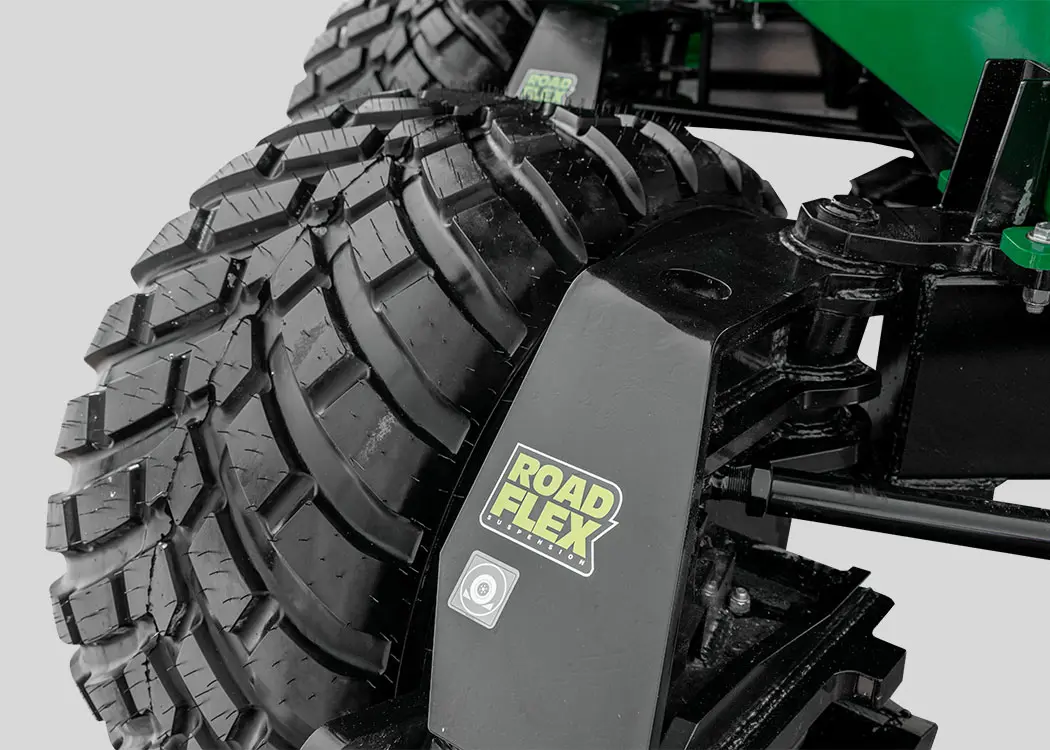

Road Flex Suspension
ROAD FLEX suspension not only reduces the stress from towing heavy loads but also provides increased stability for road travel.
Options

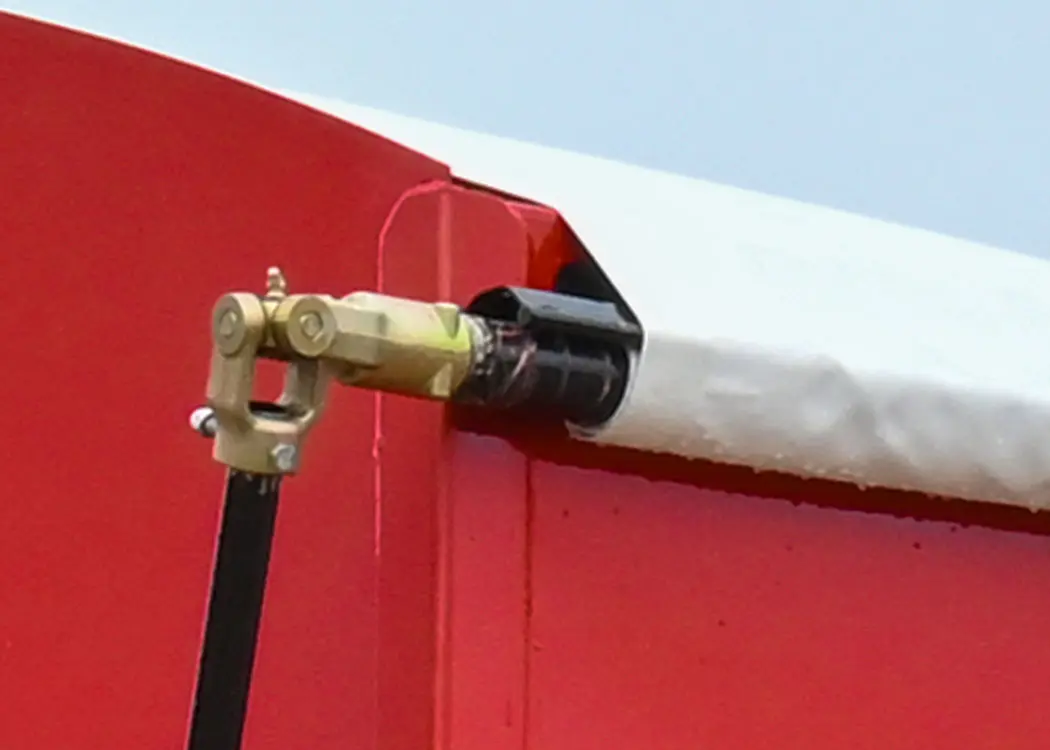

Grain Shield Tarp Kit
The Grain Shield Tarp Kit is an option for all of the Gravity Box sizes. This ratchet-free locking system not only protects the contents from blowing away and from inclement weather, but also locks quickly and easily so you can head out sooner.
Hydraulic Door Opener
"The Hydraulic Door allows you to conveniently control the metering of the material using a remote from your tractor. Currently available only on 5000 and 6500 models."

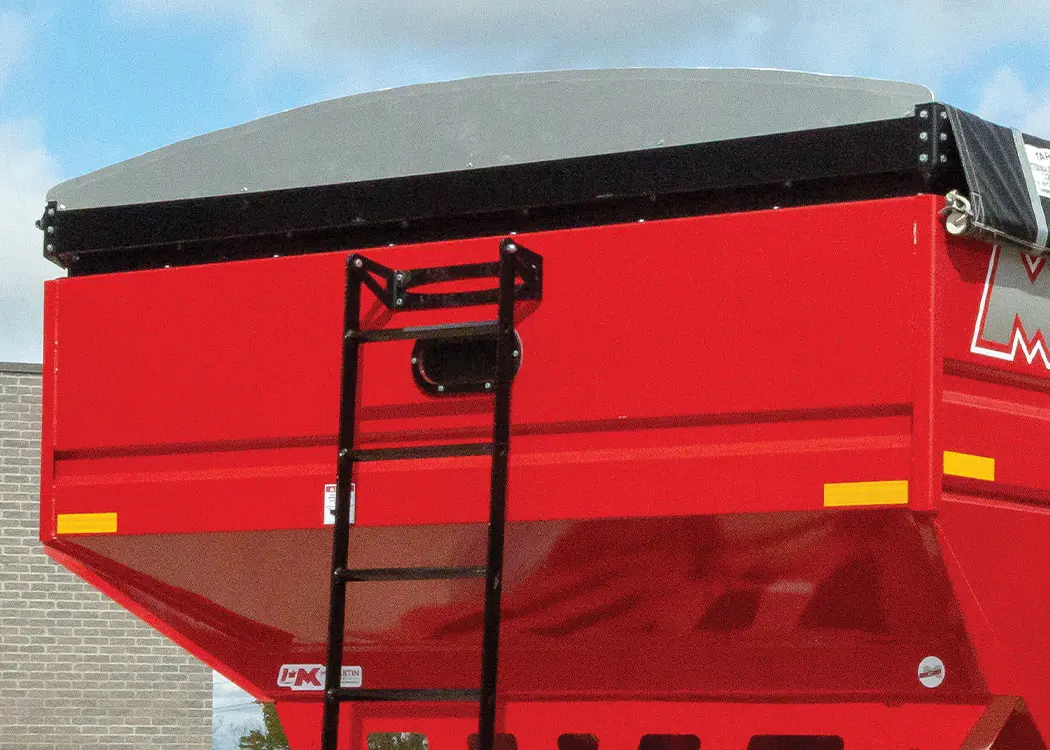

Rear Ladder
The optional rear ladder gives another access point for operators to look into the Gravity Box.
