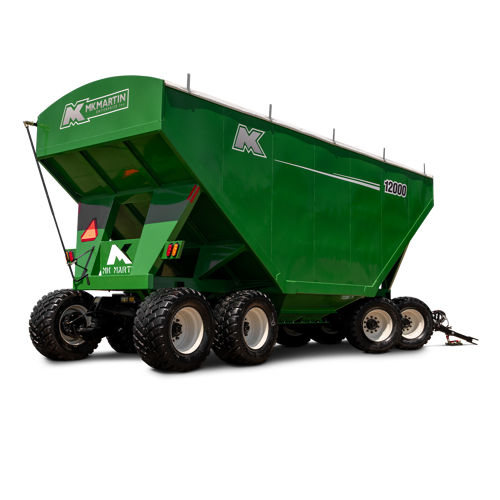

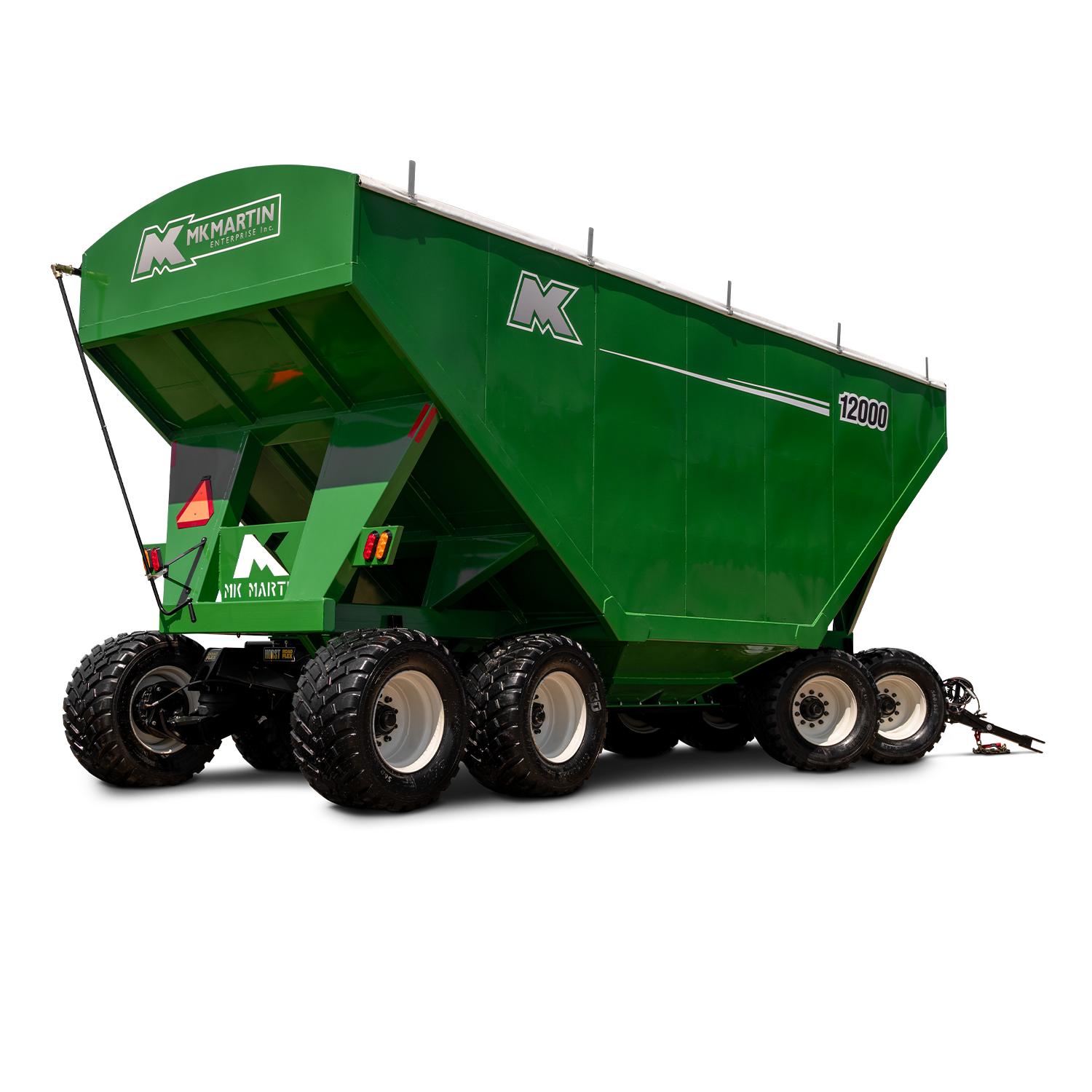

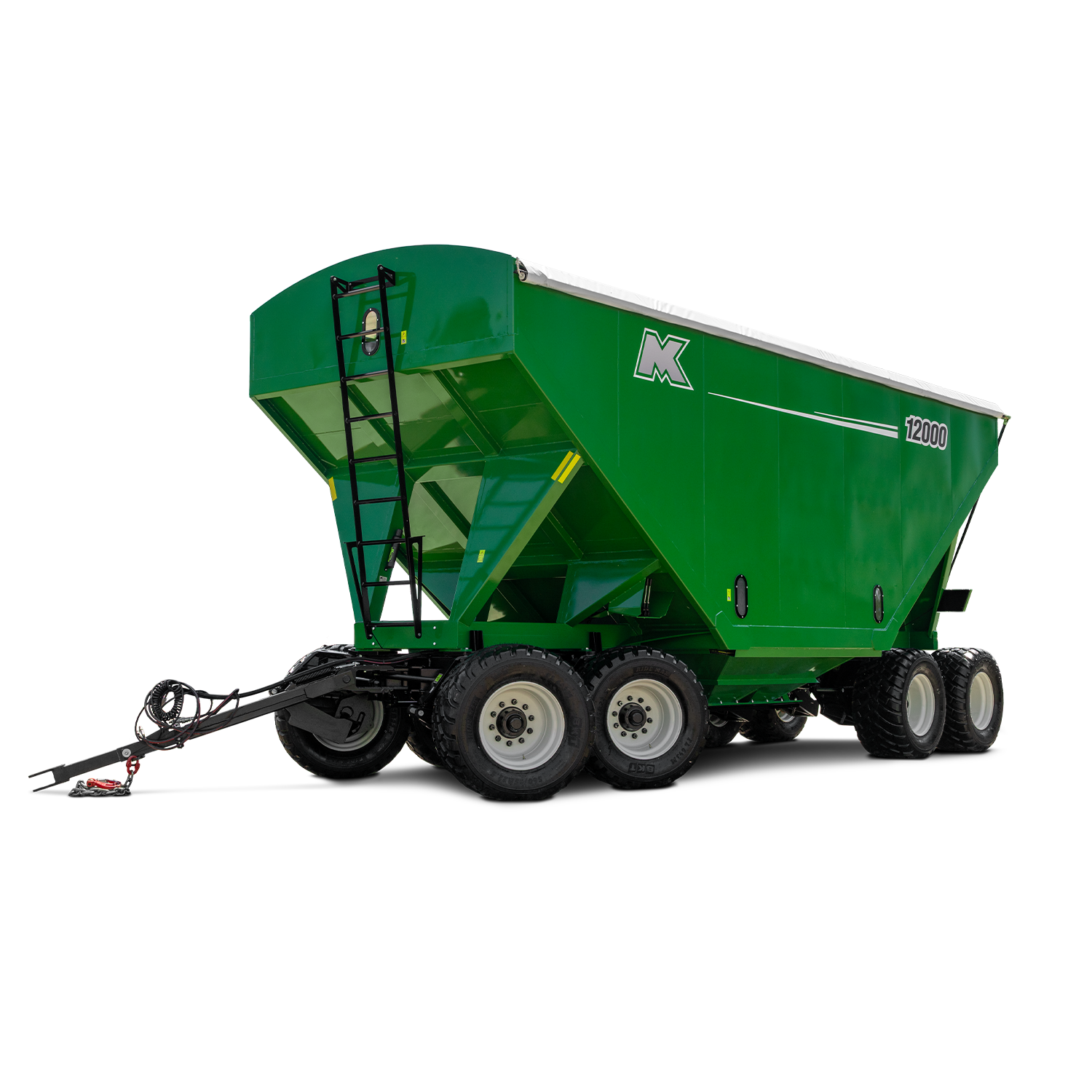

MKGW12000CD
Gravity Box - 12000
Product Specifications
- Center Dump
- 1,200 Bushel Capacity
- 12 GA. Hopper Construction
- 4x8x.25w Under Structure
- 15" Length x 47" Width x 2 Unloading Doors
- 18" Chute Height (Side Discharge)
- 315" Length Box
- 110" Width Box
- 136" Height (Less Wagon)
- 156" Height (Wagon & 22.5" Wheel)
- 17,500 lbs.
- 215" Wheel Base
- 608 Horst Wagon - 8 wheel quadsteer with brakes
Features
7 Year Warranty
All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

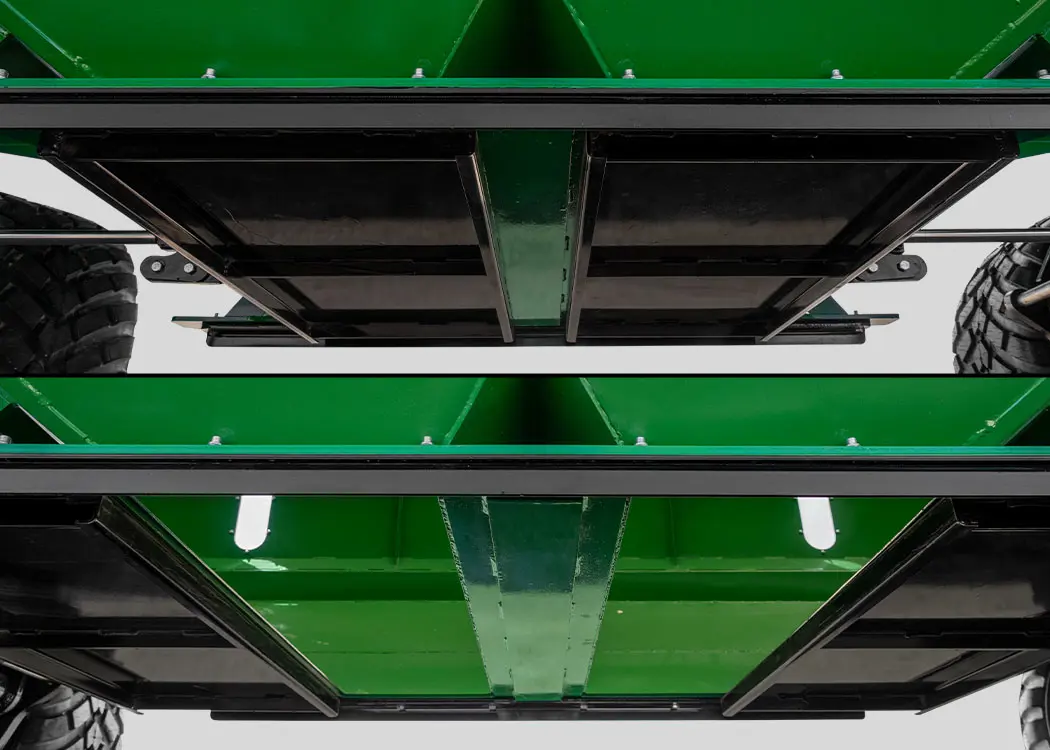

Center Dump
The center dump directs the unloading material beneath the gravity box, ideal for when the unloading area isn't wide enough for standard side dumping.

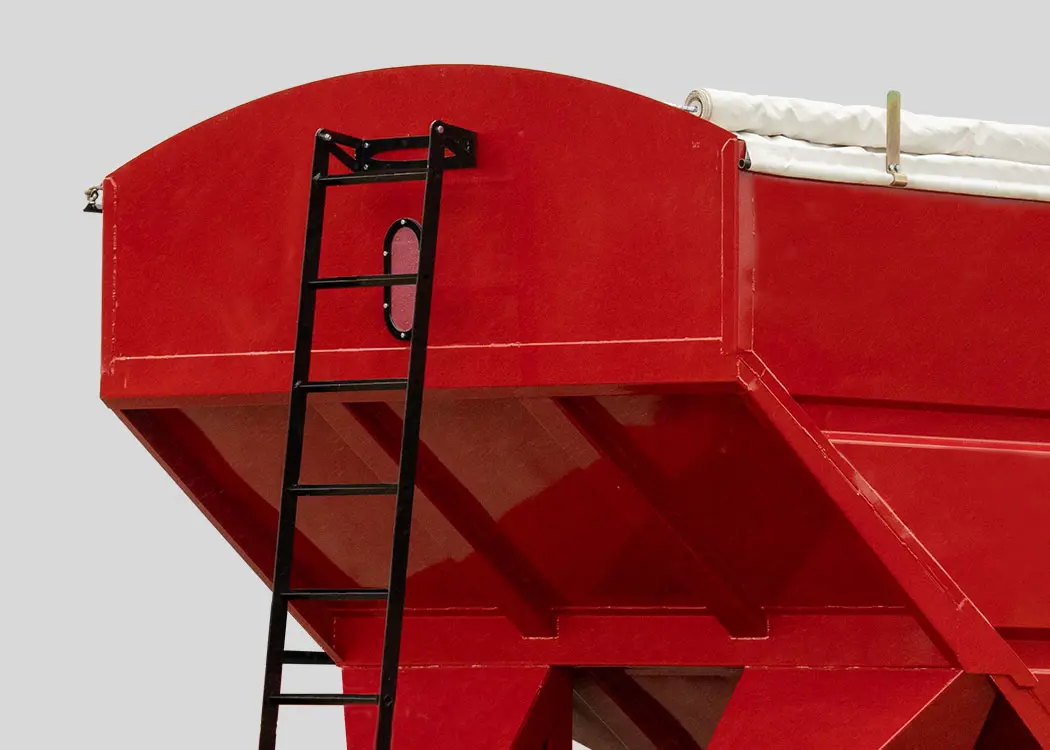

Front Ladder
The front ladder has a slightly angled incline for easier climbing, allowing you to look inside the Gravity Box with less effort and more stability.

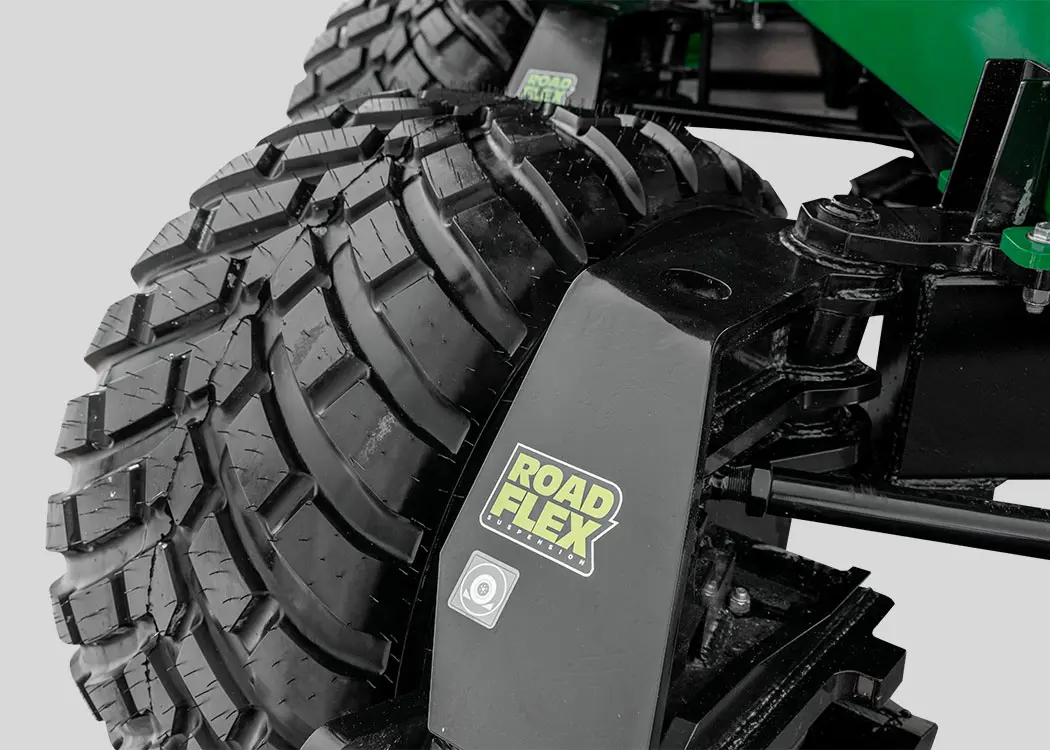

Road Flex Suspension
ROAD FLEX suspension not only reduces the stress from towing heavy loads but also provides increased stability for road travel.

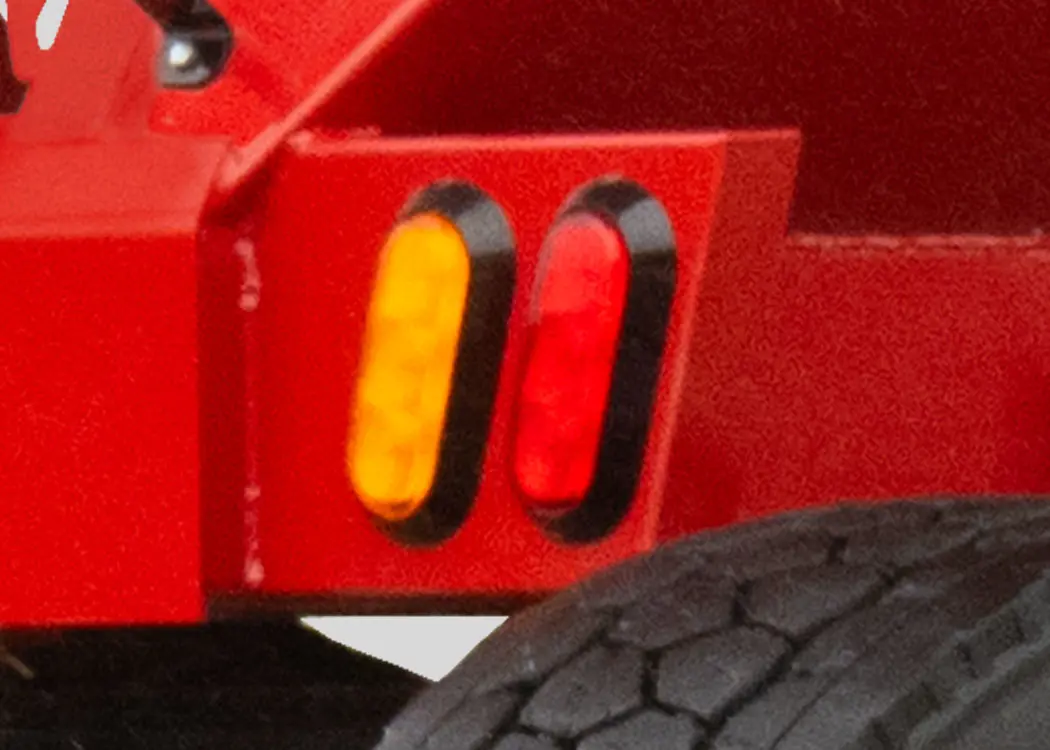

Road Lights
Every Gravity Box comes equipped with road lights for safer road travel.

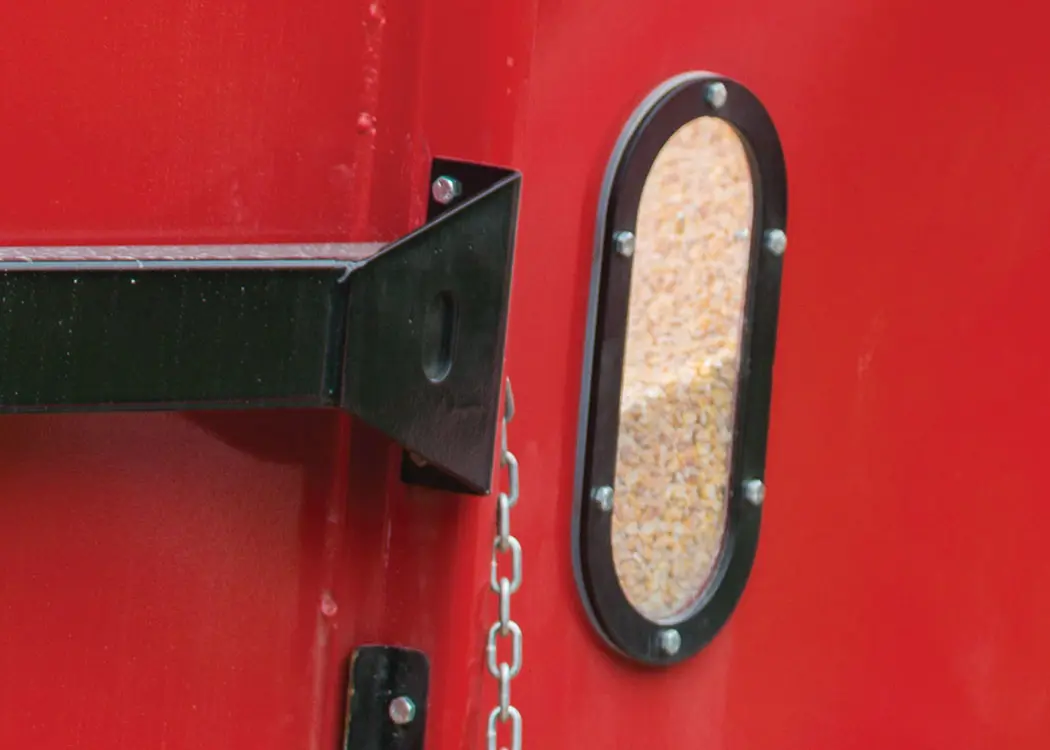

Sight Windows
Conveniently located beside the unloading door, these viewing windows allow you to see the current level of material inside the Gravity Box.
Options

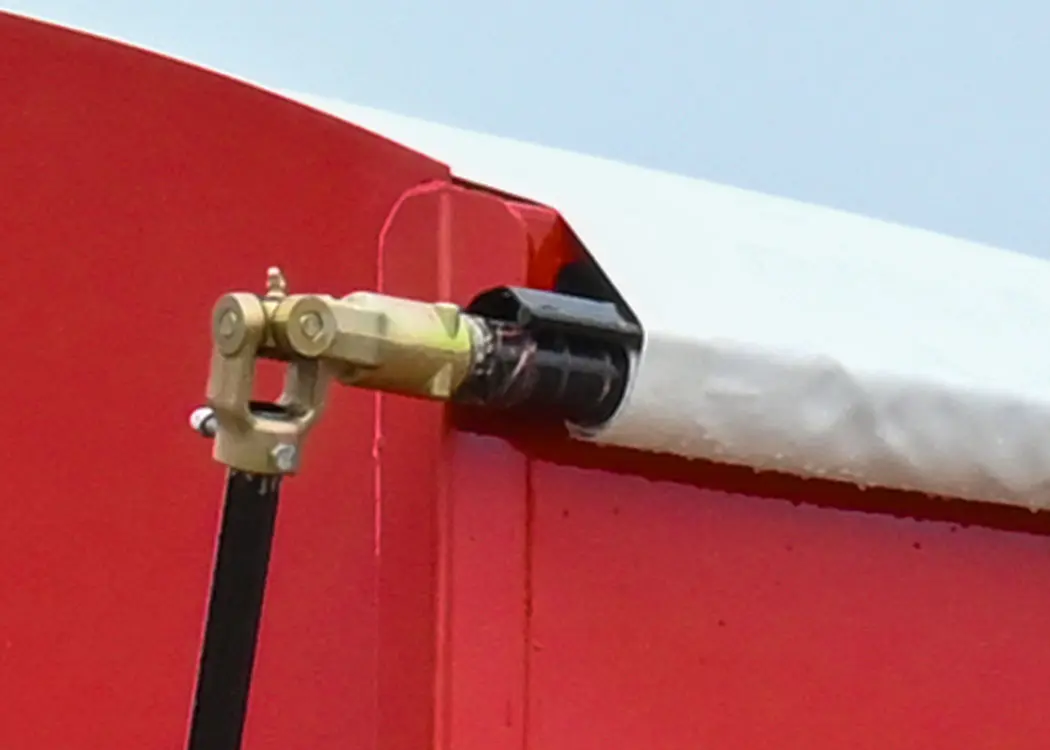

Grain Shield Tarp Kit
The Grain Shield Tarp Kit is an option for all of the Gravity Box sizes. This ratchet-free locking system not only protects the contents from blowing away and from inclement weather, but also locks quickly and easily so you can head out sooner.

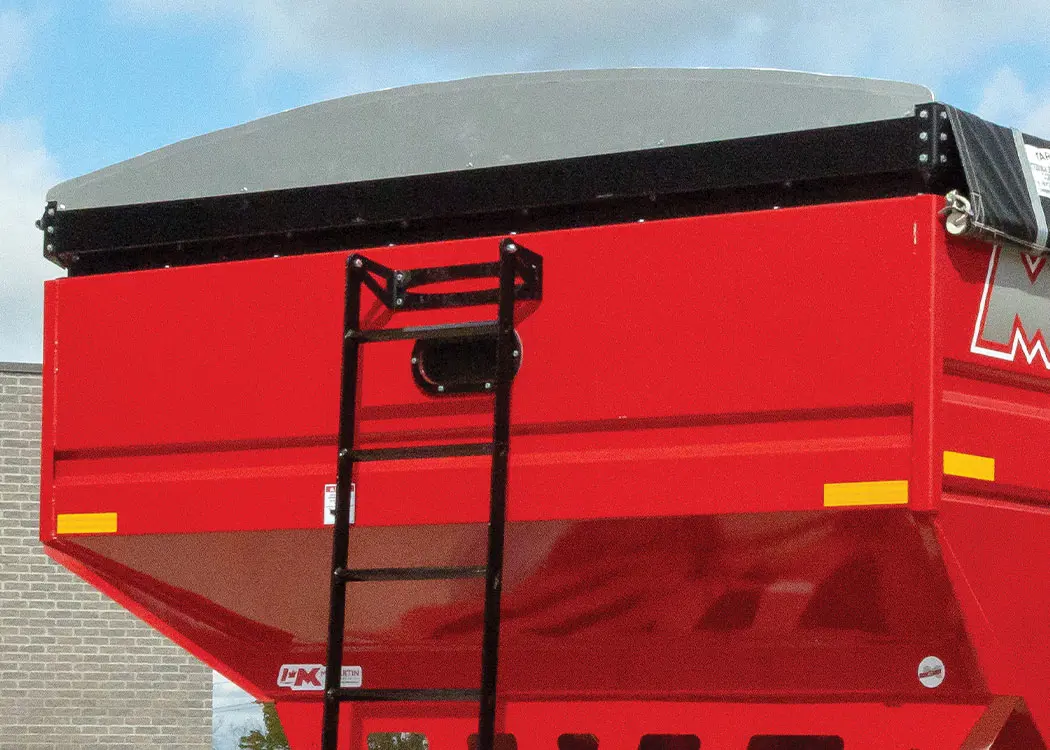

Rear Ladder
The optional rear ladder gives another access point for operators to look into the Gravity Box.
Learn more about the MKGW12000CD Gravity Box - 12000
