Pull Type Snowblower - Performance Series
- Specifications
- Features

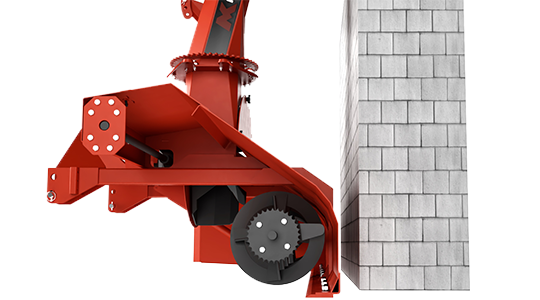

MK Martin has completely redesigned the Pull Type Tractor Snowblower. Most notably with the redesign, the new Pull Type blower now cleans tight to the garage door, with no need for an additional back drag system. Connecting to your tractor's 3PH, the inverted snowblower allows you to drive straight forward pulling the blower instead of backing into the snow. Easier on your neck, the pull type blower is ideal for quickly clearing driveways and laneways.
Specifications
| Model | SB54PT-P | SB60PT-P | SB68PT-P | SB72PT-P | SB78PT-P | SB87PT-P | SB97PT-P |
| HP (Rec.) | 25 HP | 25 HP | 35 HP | 35 HP | 50 HP | 60 HP | 60 HP |
| Cutting Width | 54" | 60" | 68" | 72" | 78" | 87" | 97" |
| Cutting Edge | Bolt On (1⁄2 x 4) | ||||||
| Auger Diam. | 14" | 14" | 14" | 14" | 15" | 19" | 19" |
| Fan Diam. | 18" | 18" | 21" | 21" | 23" | 27" | 27" |
| Chute Diam. | 8" | 8" | 10" | 10" | 10" | 12" | 12" |
| Chute Rotation Edge | Must select either Manual (opt.) or Hydraulic (opt.) or Electric (opt.) | ||||||
| Chute Deflector | Manual Std./Opt. 6" cyl. | Manual Std./Opt. 8" cyl. | |||||
| Double Hood Deflector | N/A | N/A | Std. | Std. | Std. | Std. | Std. |
| Main Body Height | 23" | 23" | 23" | 23" | 26" | 28" | 28" |
| 3PH Mount | Cat. 1 | Cat. 1 | Cat. 1 | Cat. 1 | Cat. 1 & 2 | Cat. 2 | Cat. 2 |
| Weight (LBS.) | 462 | 495 | 671 | 685 | 900 | 1,175 | 1,260 |
| Tube Size | 2 3⁄8" OD | 2 3⁄8" OD | 2 3⁄8" OD | 2 3⁄8" OD | 3 1⁄2" OD | 3 1⁄2" OD | 3 1⁄2" OD |
| Fighting Size | 1⁄4 X 2 1⁄4 | 1⁄4 X 2 1⁄4 | 1⁄4 X 2 1⁄4 | 1⁄4 X 2 1⁄4 | 1⁄4 X 2 1⁄4 | 5⁄16 X 2 1⁄4 | 5⁄16 X 2 1⁄4 |
| Roller Chain Drive | # 50 | # 50 | # 60 Heavy | # 60 Heavy | # 60 Heavy | # 60 Heavy | # 60 Heavy |
| Fan Depth | 5" | 5" | 7" | 7" | 8" | 10" | 10" |
| Blades Per Fan | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Auger Drive Shaft Size | 1" | 1" | 11⁄4" | 11⁄4" | 11⁄4" | 11⁄4" | 11⁄4" |
| Auger Drive Shaft Size | 13⁄8" | 13⁄8" | 13⁄8" | 13⁄8" | 40mm | 40mm | 40mm |

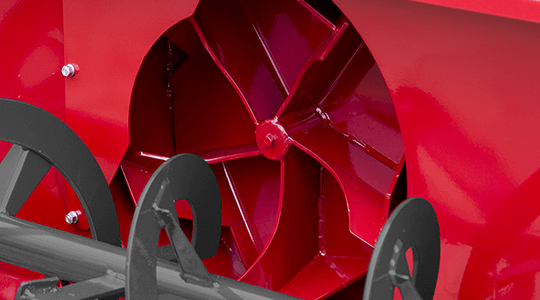

5 Blade Impeller
All Meteor Snow Blowers now feature a standard 5 blade impeller. The five blades not only evacuate high volumes of snow quickly, but also feature tighter tolerance to the housing increasing velocity of the snow exiting the chute.

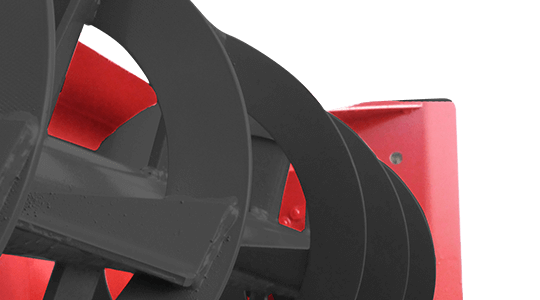

High Tensile Steel Flighting
To deliver even the heaviest wet snow to the awaiting fan, Meteor Snow Blowers use machine formed hand welded augers made with high tensile steel ribbon flighting to provide strength and durability for years to come.

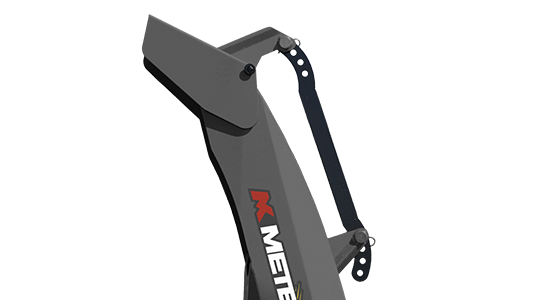

Standard Manual Chute Deflector (all)
All Meteor Snow Blowers come with a manual pin style deflector allowing a true set it and forget approach to blowing snow.

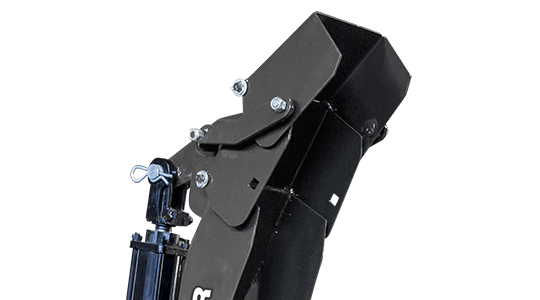

Multi-hinged Deflector (SB68P/T – SB97P/T)
The optional multi-hinged deflector is available for most models and allows increased precision in where snow is blown allowing snow to be placed closer to the blower or into a truck to be hauled away.

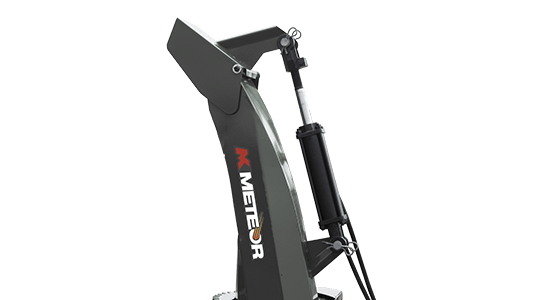

Hydraulic Deflector
Hydraulic deflectors control the distance and arc of the thrown snow and are an available option on all models
Standard Manual Chute Rotator (SB54PT & SB60PT)
Manual rotators are standard on SB48, SB54, and SB60 single auger models and can be optionally outfitted on most models where operators can safely reach the adjustment handle.

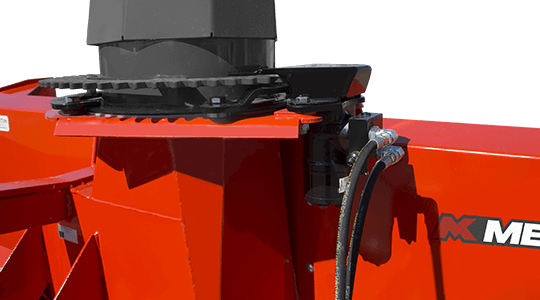

Hydraulic Rotator
The optional hydraulic rotator is the ideal upgrade for tractors with cabs or for contractors/property managers needing to make frequent adjustments.
Hydraulic rotators are standard equipment on SB97D, SB108D, and SB120D models.

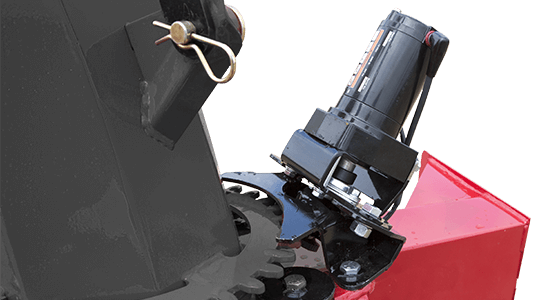

Electric Rotator
When hydraulic power isn't available the 12V electric rotator provides a hands off approach to chute rotation.
Contact MK Martin for compatibility and availability.

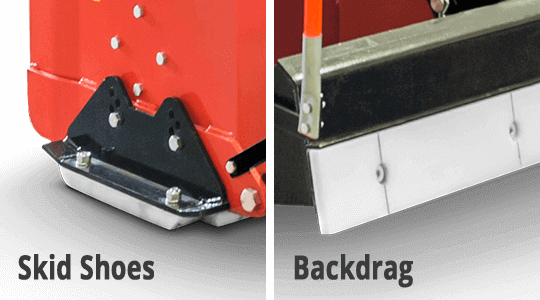

Tivar Wear Parts
Tivar is a wear resistant plastic that replaces steel cutting edges and bolts onto the skid shoes.
Optional on Pull Type models, the tivar is gentler when clearing, ideal for interlocking brick and decorative stone.
