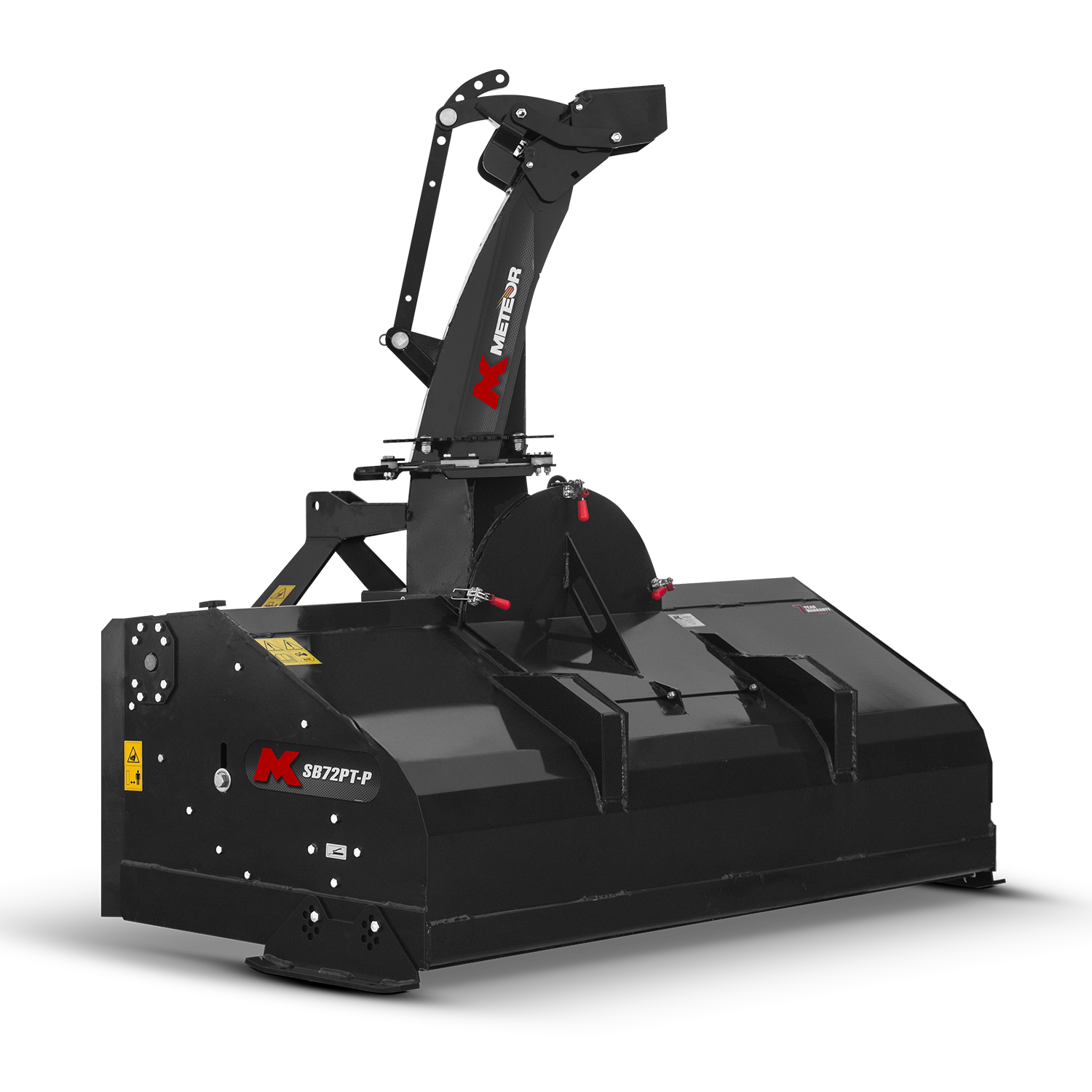

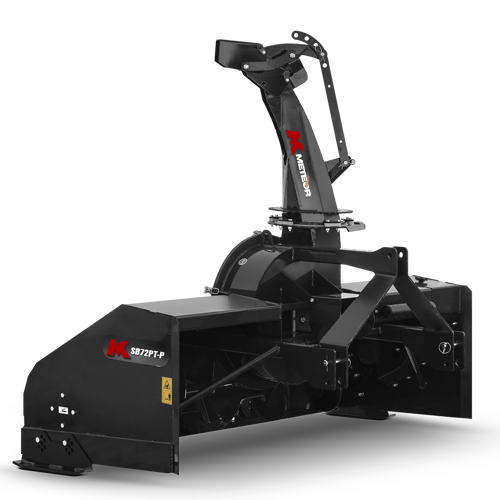

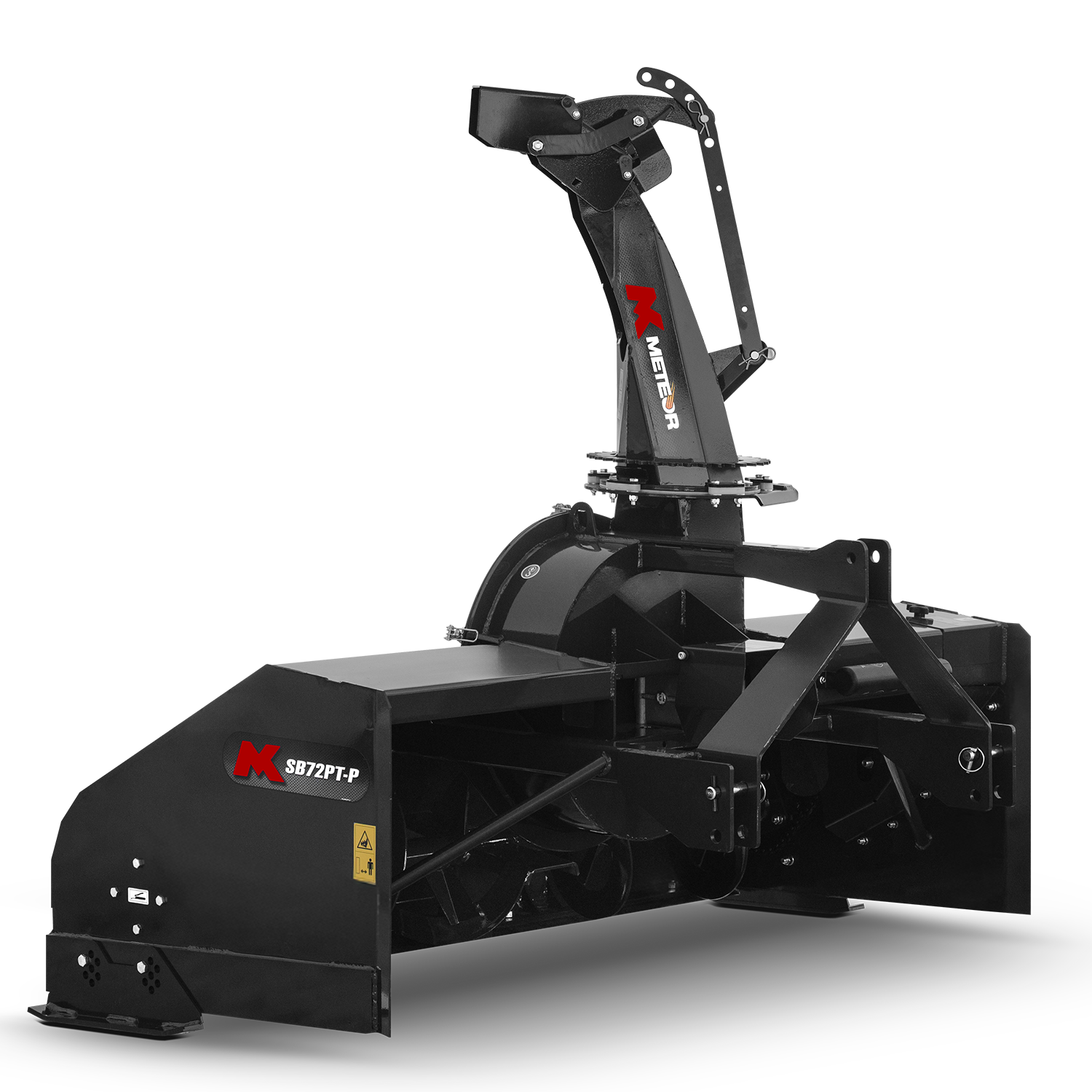

SB72PT-P

Pull Type Snowblowers - Performance Series

Product Specifications

35 HP
72" Cutting Width
14" Auger Diameter
21" Fan Diameter
10" Chute Diameter
Manual Std. Chute Deflector
23" Main Body Height
685 lbs.
2 3⁄8" OD Tube Size
1⁄4 x 2 1⁄4 Flighting Size
#60 Heavy Roller Chain Drive
7" Fan Depth
5 Blades Per Fan
1 1⁄4" Auger Drive Shaft Size
1 3⁄8" Fan Output Shaft Size
Cat. 1 3PH Mount
Bolt On (1⁄2 x 4) Cutting Edge
Chute Rotation: Hydraulic (opt.) or Electric (opt.)

Features

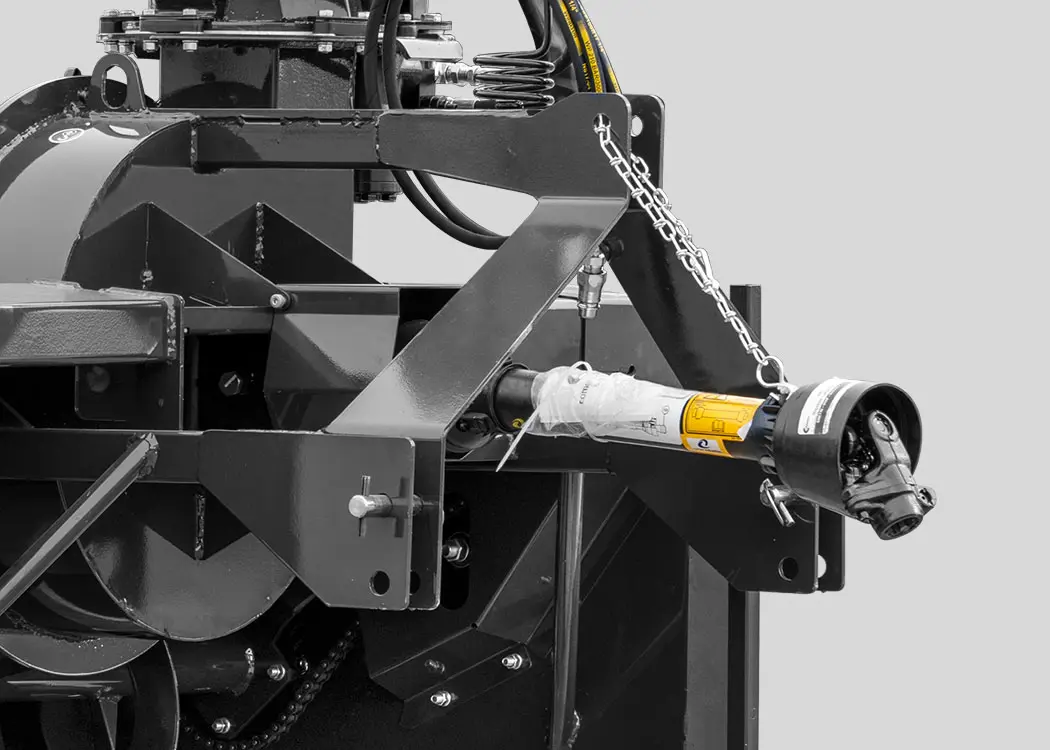

3PH / Quick Attach

All pull type models are built for Category 1 or Category 2 type 3PH. All models are Quick Attach compatible.

7 Year Warranty

All MK Martin products are backed by a 7 Year Limited Consumer Warranty and a 90 Day Limited Commercial Warranty.

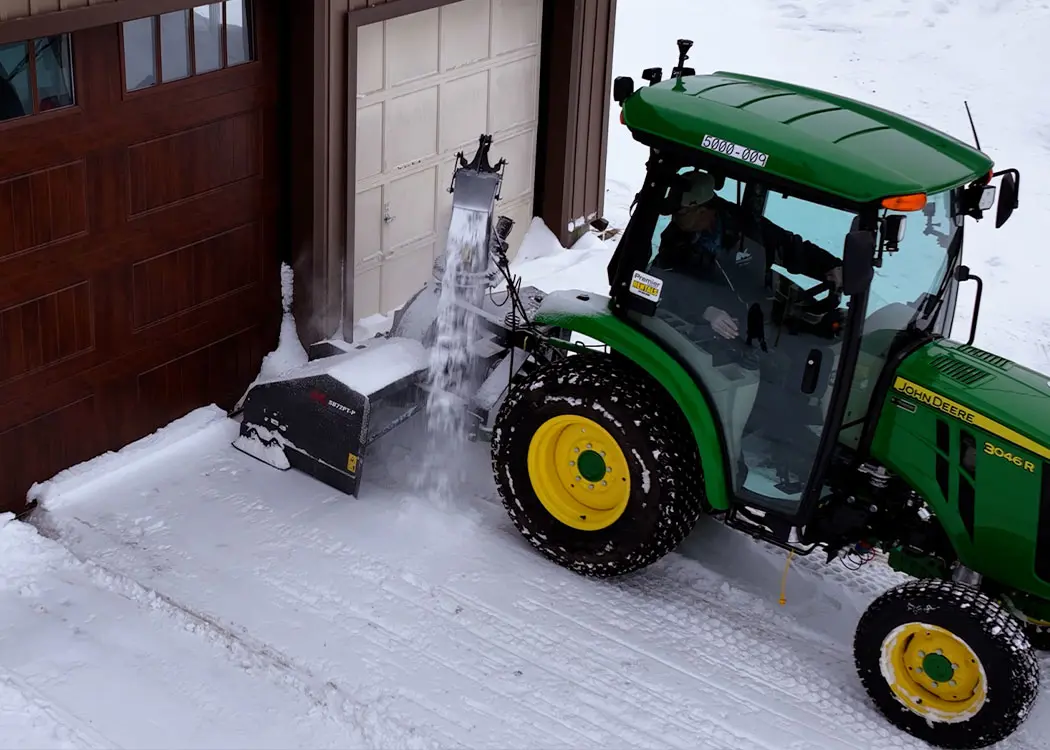

Cleans Tight to the Garage Door

The Performance Series allows operators to collect snow closer to buildings without the need for a back drag, reducing the risk of accidental damage and keeps the blowing action away from buildings.

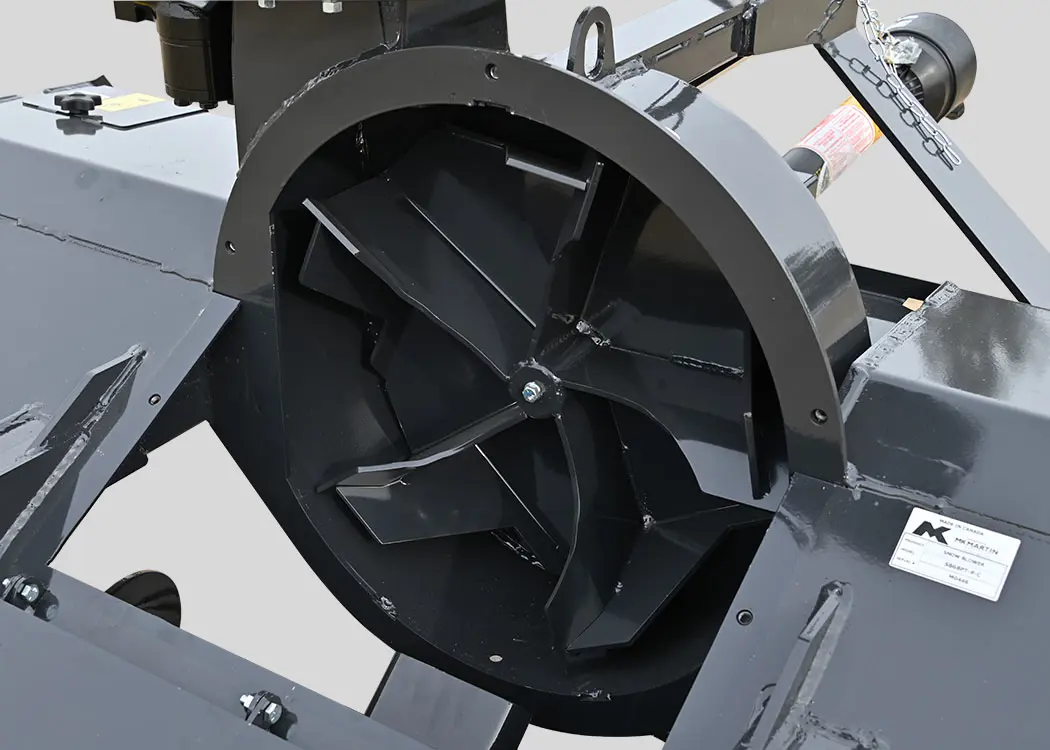

Five Blade Fan

All MK Martin snowblowers feature a standard 5 blade fan. The five blades not only evacuate high volumes of snow quickly, but also feature tighter tolerance to the housing, increasing velocity of the snow exiting the chute.

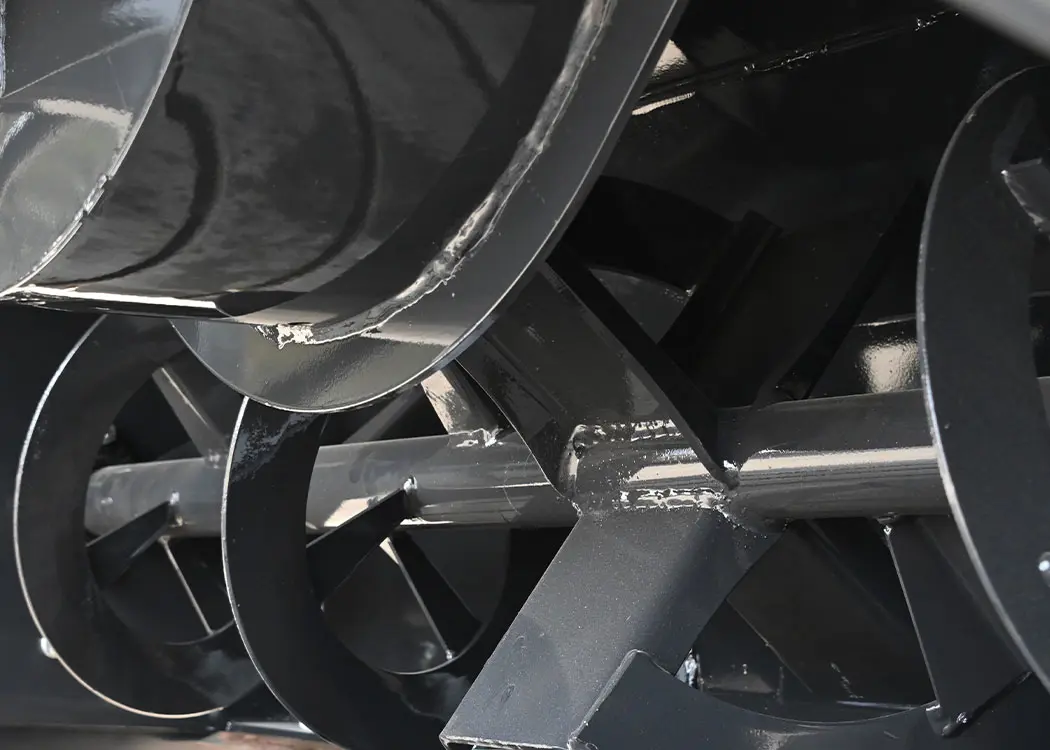

High Tensile Steel Ribbon Flighting

To deliver even the heaviest wet snow to the awaiting fan, MK Martin snowblowers use machine formed hand welded augers made with high tensile steel ribbon flighting to provide strength and durability for years to come.

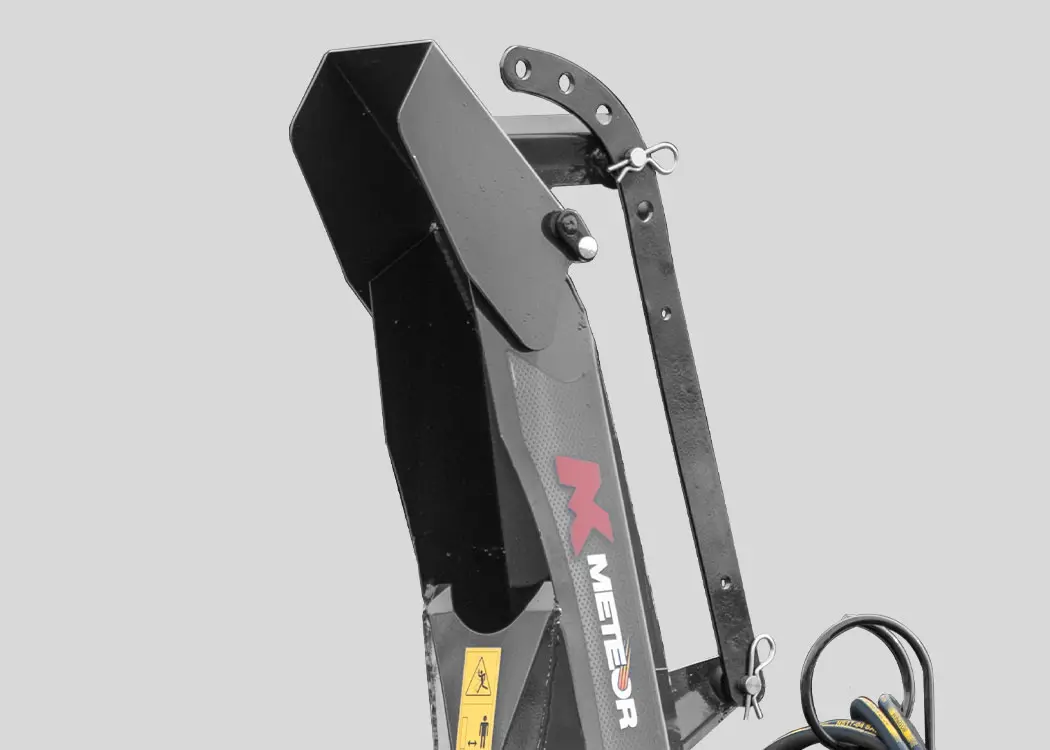

Manual Deflector

All models come with a manual pin-style deflector allowing a true set it and forget approach to blowing snow.

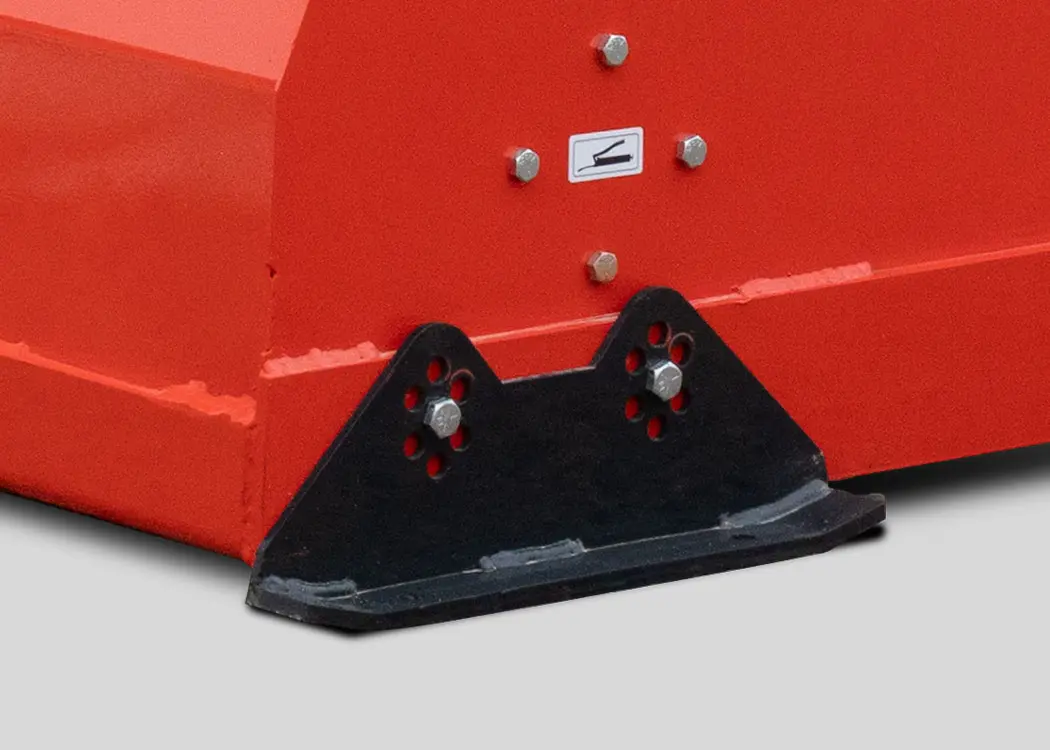

Skid Shoes

Our snowblowers come equipped with adjustable skid shoes, extending the life of the cutting edge and helping to protect surfaces from damage commonly associated with snow removal.

Options

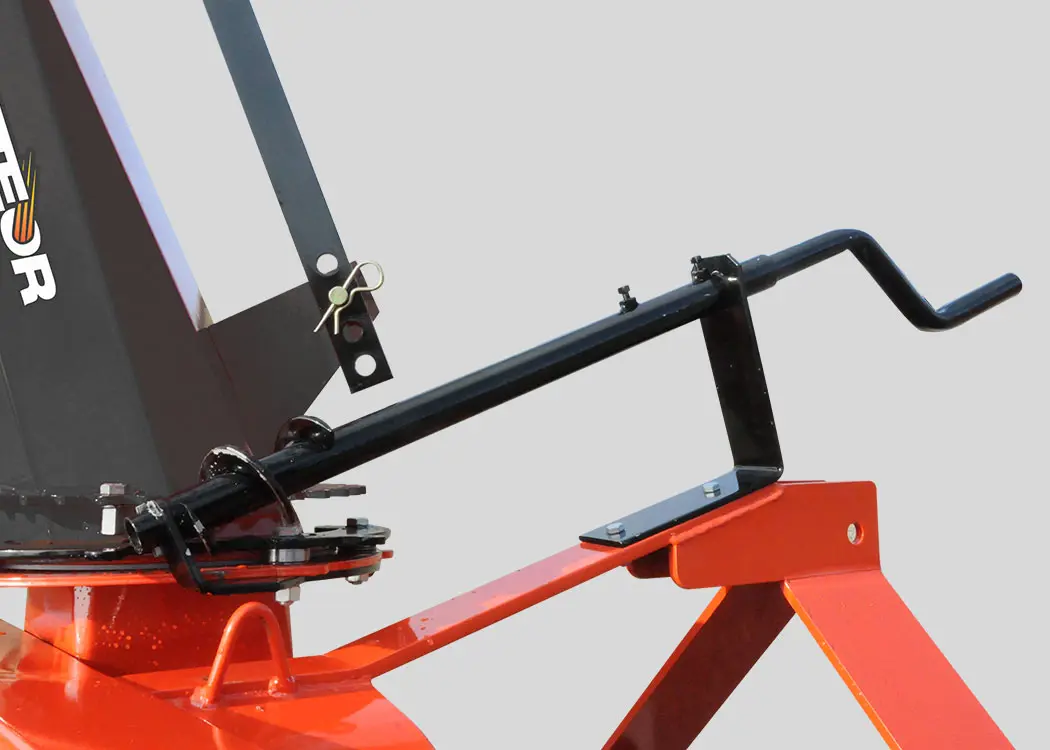

Manual Rotator

All are available with a manual worm gear hand crank chute rotator that offers 320 degrees rotation.

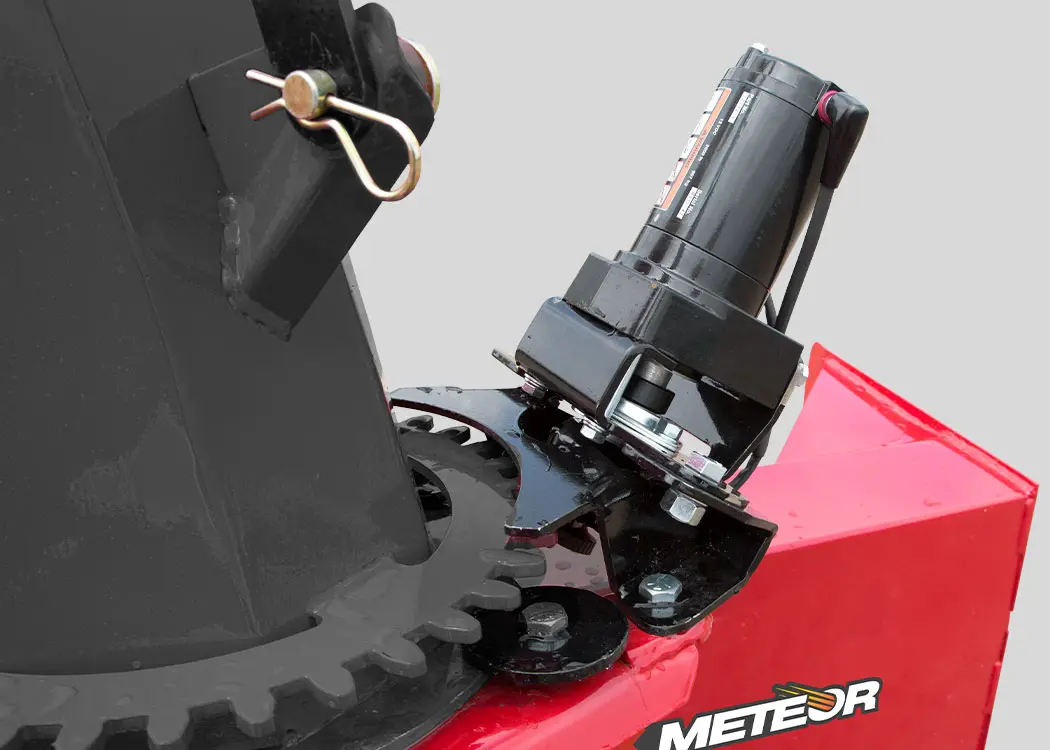

Electric Chute Rotator

When hydraulic power isn't available, the 12V electric rotator provides a hands off approach to chute rotation. Contact MK Martin for compatibility and availability.

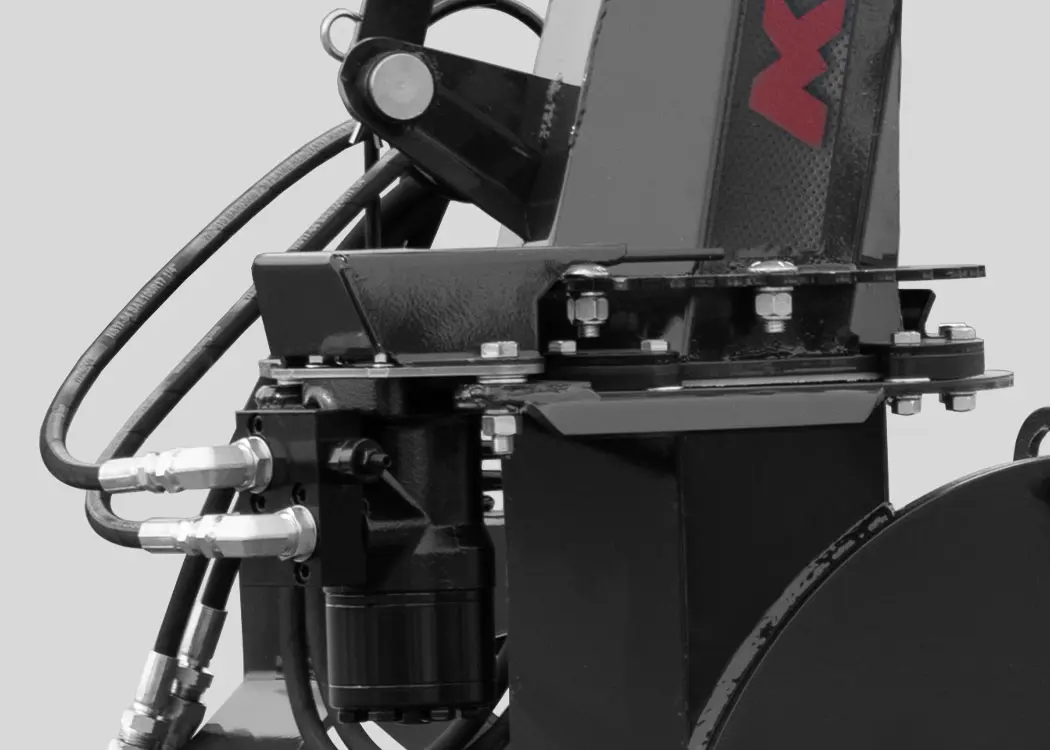

Hydraulic Chute Rotator

The optional hydraulic rotator is the ideal upgrade for tractors with cabs or for contractors/property managers needing to make frequent adjustments.

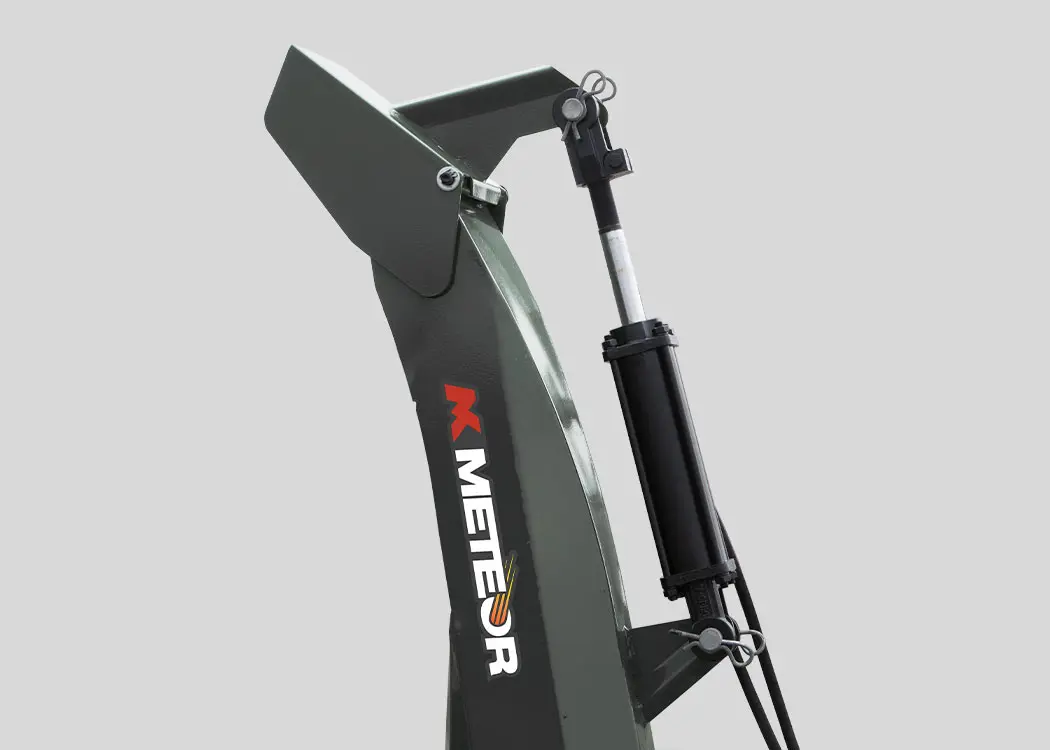

Hydraulic Deflector

Hydraulic deflectors control the distance and arc of the thrown snow and are an available option on all models.

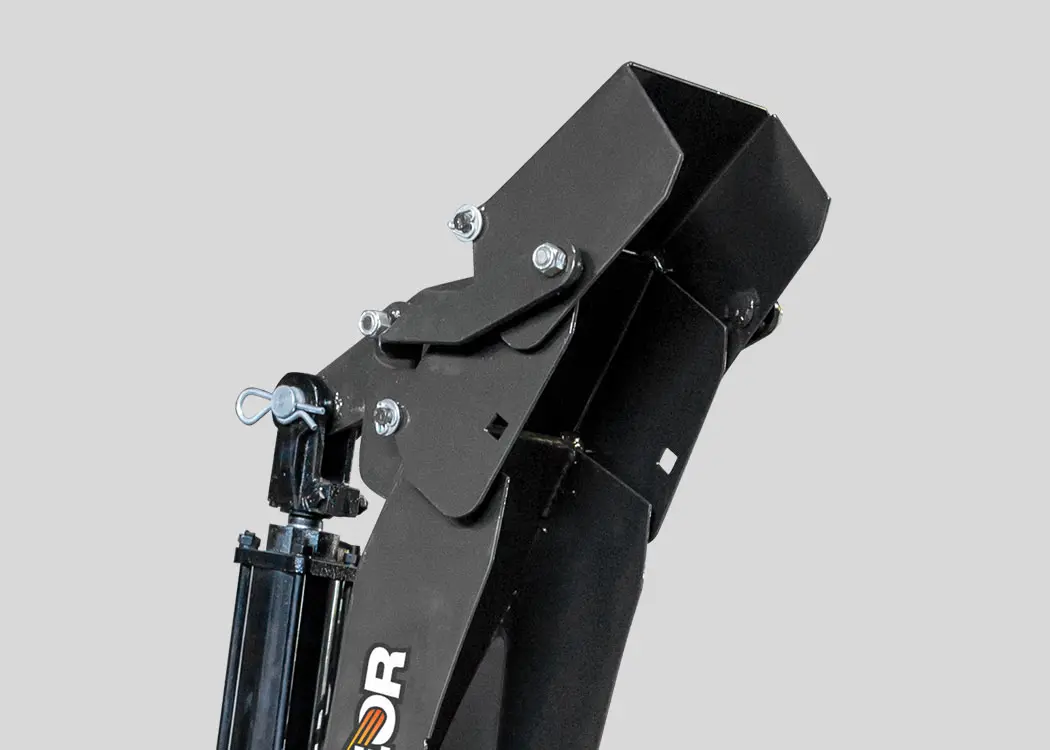

Multi-Hinged Deflector

Available on SB68PT-P through to SB97PT-P models, the multi-hinged deflector provides increased precision when blowing the snow closer to the blower or into a trailer.

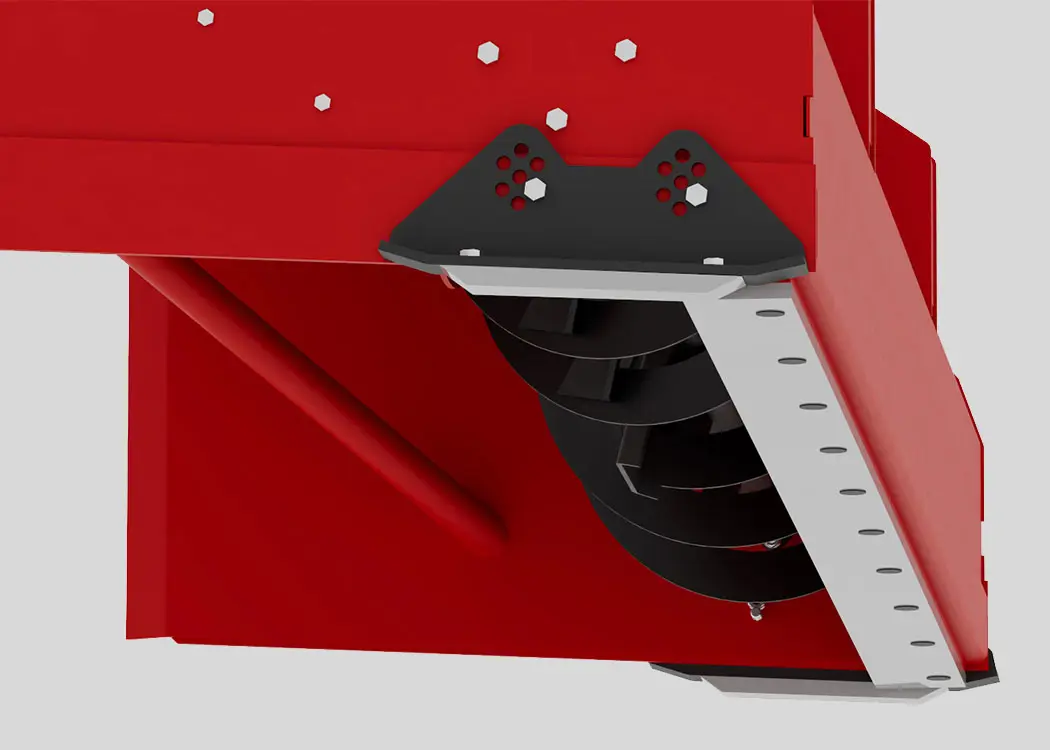

TIVAR Wear Parts

TIVAR is a wear resistant plastic that replaces steel cutting edges and bolts onto the skid shoes. Optional on Pull Type models, the TIVAR wear parts are gentler when clearing, ideal for interlocking brick and decorative stone.

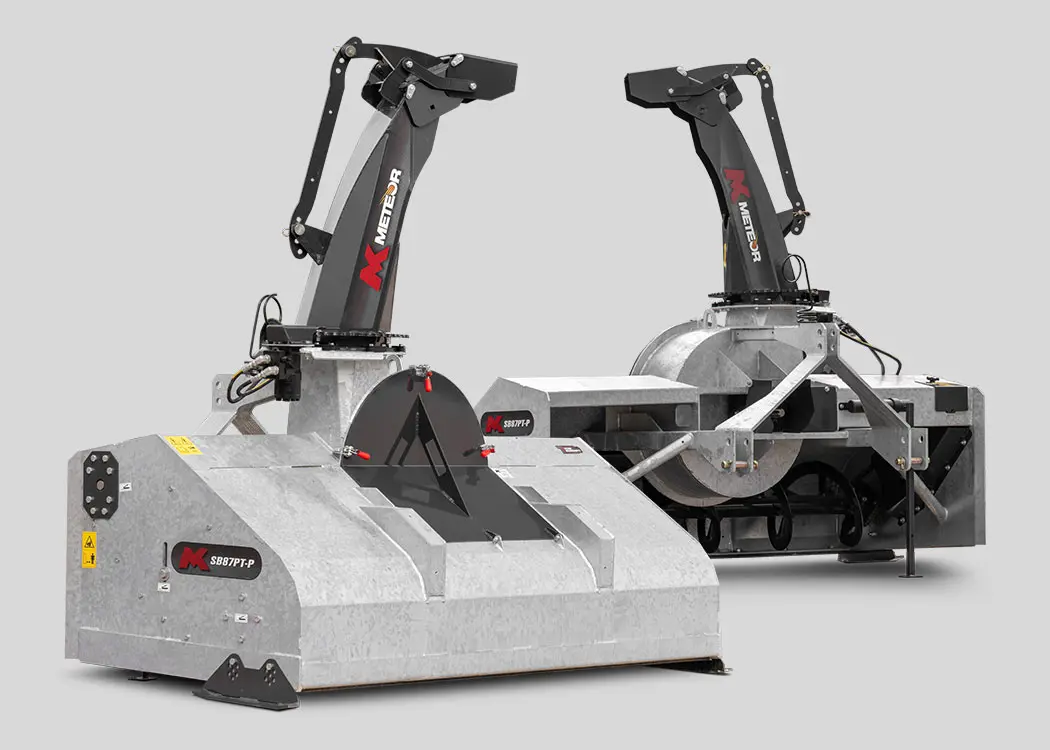

Galvanized Steel Body

Our new galvanized steel models showcase this same snow clearing performance, now with superior protection from rust and corrosion, extending the body’s working life and keeping it performing season after season.
